RV277 - Controllable anti-pollution check valve EA type
2 Product Specification Sheet • EN0H-1200GE23 R0417 • Subject to change
CONSTRUCTION
METHOD OF OPERATION
Spring loaded check valves have a moving seal disc which is
lifted off the seat by a greater or lesser amount depending
on the flow rate through the valve. If the flow falls towards
zero, then the spring pushes the disc back onto the seat and
seals the waterway.
To ensure continuing correct function it is recommended
that check valves be regularly checked and maintained (as
specified in EN 1717).
TRANSPORTATION AND STORAGE
Keep parts in their original packaging and unpack them
shortly before use.
The following parameters apply during transportation and
storage:
*non condensing
INSTALLATION GUIDELINES
Setup requirements
• Install in horizontal pipework with test and drain plug
downwards
– This position is best for draining
• Install shut-off valves
– Shut-off valves provide optimal serviceability
• Ensure good access
– Simplifies maintenance and inspection

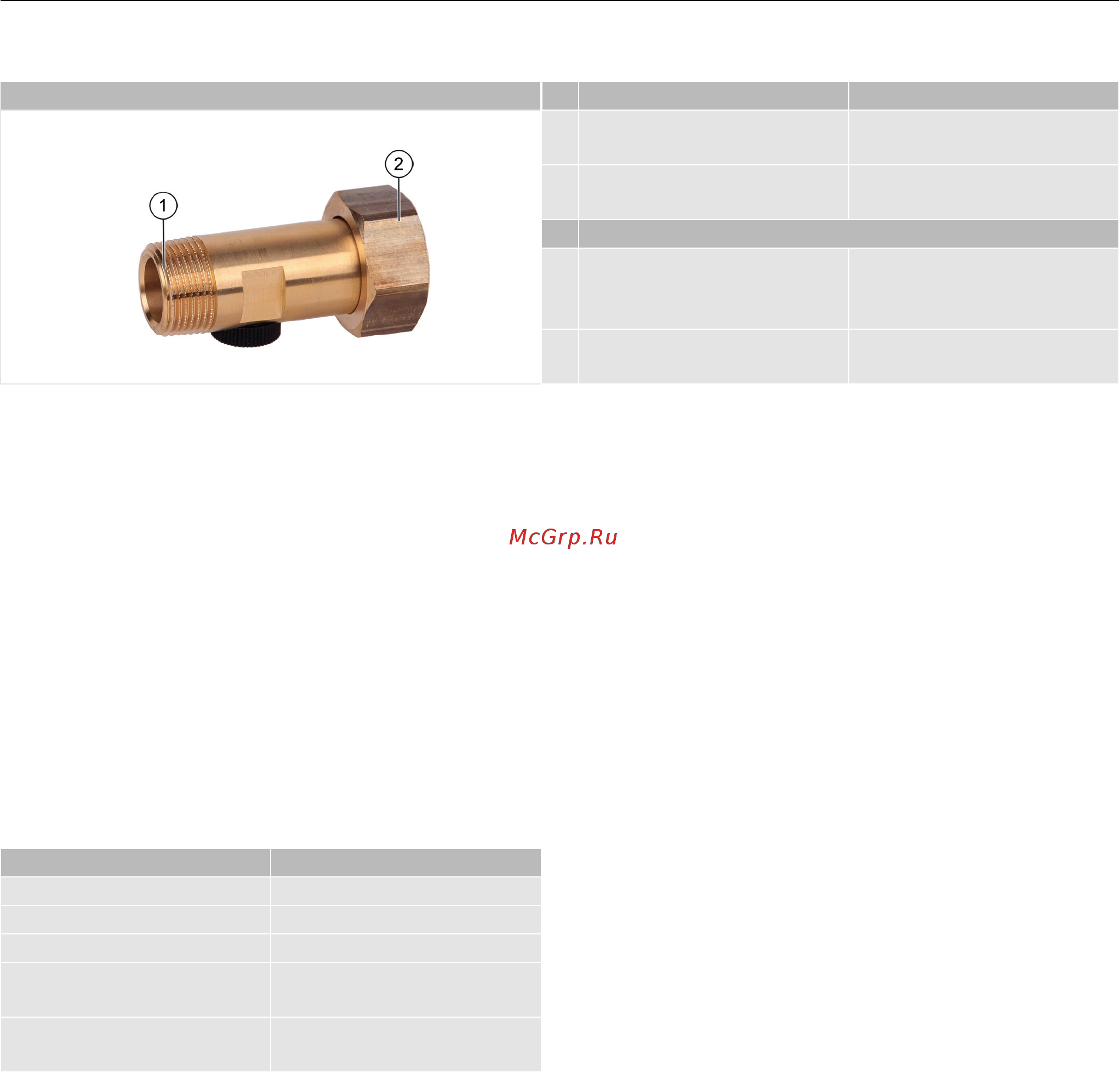

Overview Components Materials
1 Male threaded union with
flat wrench faces
Brass
2 Union nut with internal
thread
Brass
Not depicted components
Check valve insert High-grade synthetic
material check valve
cartridge
Test plug with seal ring EPDM seal ring, high-quality
synthetic material test plug
Parameter Value
Environment: clean, dry and dust free
Min. ambient temperature: 5 °C
Max. ambient temperature: 55 °C
Min. ambient relative
humidity:
25 % *
Max. ambient relative
humidity
85 % *
