FR124

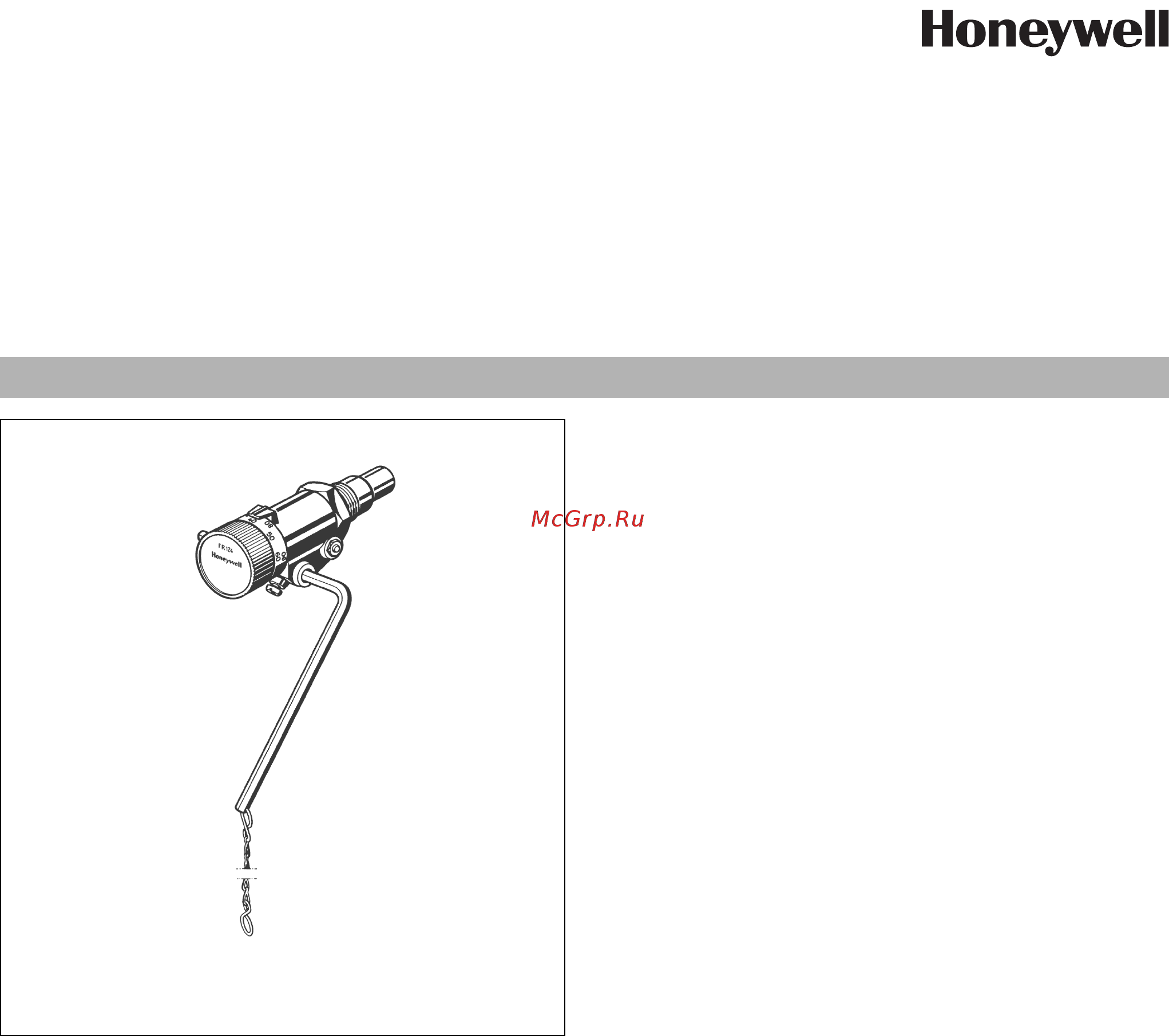

Combustion Regulator

for solid fuel and multi-fuel boilers

Product specification sheet

Construction

The FR124 Combustion Regulator consists of:

•Housing

•Adjuster knob

• Immersion pocket

• Lever rod

•Chain

• Wax thermostat

• Return spring

Materials

• High-quality synthetic material housing and adjuster knob

• Brass sensor pocket

• Galvanized steel lever rod

• Galvanized steel chain

Application

The FR124 combustion regulator opens and closes the air intake

flap of solid fuel boilers in proportion to the flow temperature.

Special Features

• Design tested to DIN EN14597 (Test No. FR108709) and

DIN 3440 (Test No. FR 108701)

• Scale for horizontal and vertical installation

• Supplied with 120 mm lever rod and chain

• Compact construction

Range of Application

For solid fuel and multi-fuel heating installations to DIN EN12828

Technical Data

Setting range 30...90 °C

Permissible sensor

temperature

max. 115 °C

Ambient air temperature max. 70 °C on adjuster knob

Connection size G 3/4"

Chain length 1.2 m

Chain load 100...600 g

Immersion tube length 53 mm
