Honeywell SG160SD-1AB [3/5] Installation example

SG160S - Safety Group

Product Specification Sheet • EN0H-1346GE23 R0517 • Subject to change 3

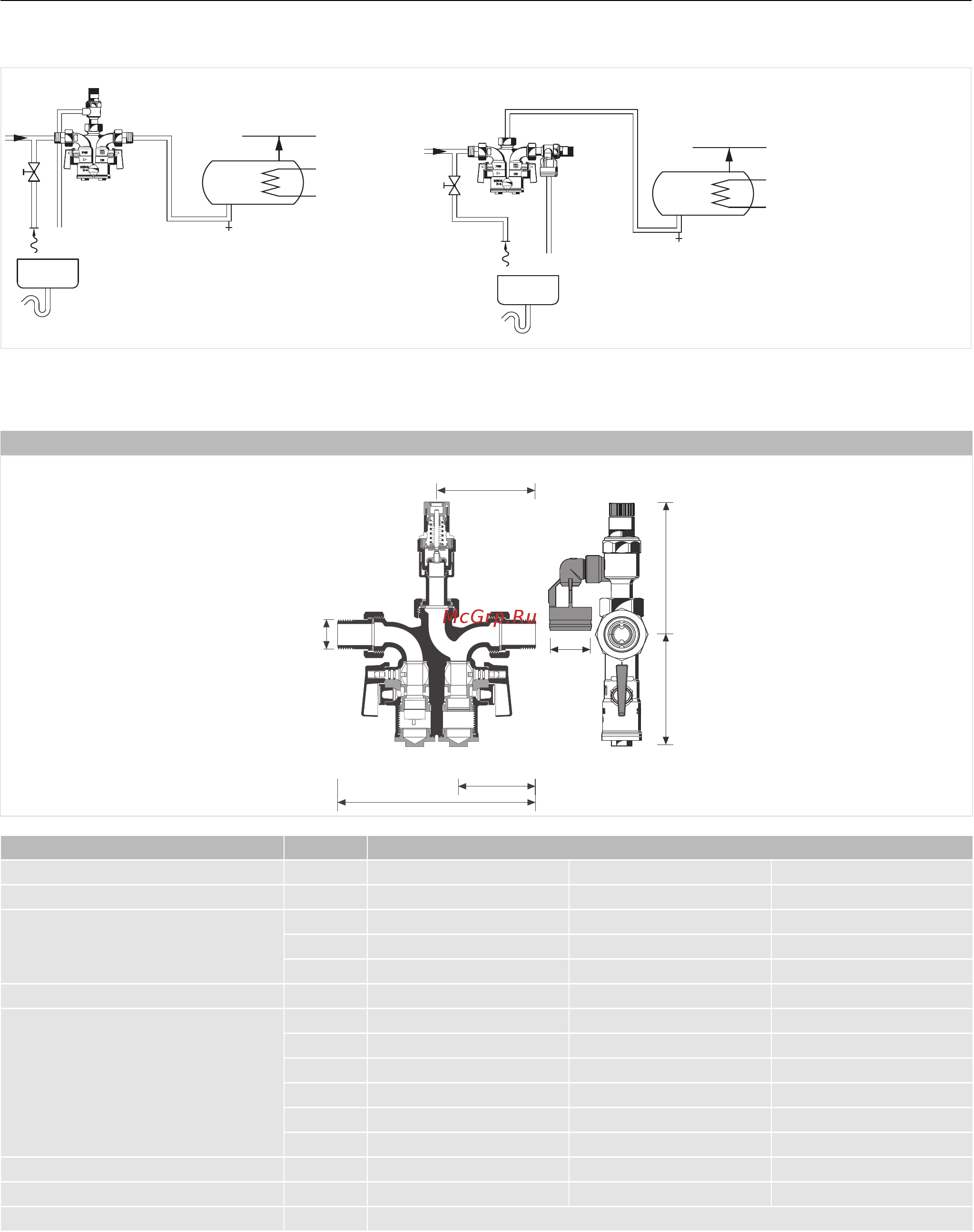

Installation Example

Fig. 1 Standard installation example for the safety group

DIMENSIONS

Note: All dimensions in mm unless stated otherwise.

* Concerning DIN 1988-200

Arrangement of the safety

group in the same room

as the water heater

Arrangement of the safety group

"corner angle", where no drainage is

available in same room as the water

heater

Overview

Parameter Values

Connection size: R

" 1"

Nominal size: R

Weight: kg

Version A 1.64 1.7 1.96

Version E - 1.4 1.57

Drain outside Ø: D 40 40 40

Dimensions: mm

L 178 186 204

89 93 102

68.5 72.5 81.5

H 124.5 124.5 124.5

h 105.5 105.5 105.5

For water heaters with capacity*: litres 200 1000 1000

Max. permissible heat input*: kW 75 150 150

DIN/DVGW Approval No.: NW-6311 CQ 0546
