SONAMP DSP 2-750 MULTI-CHANNEL POWER AMPLIFIER INSTRUCTION MANUAL

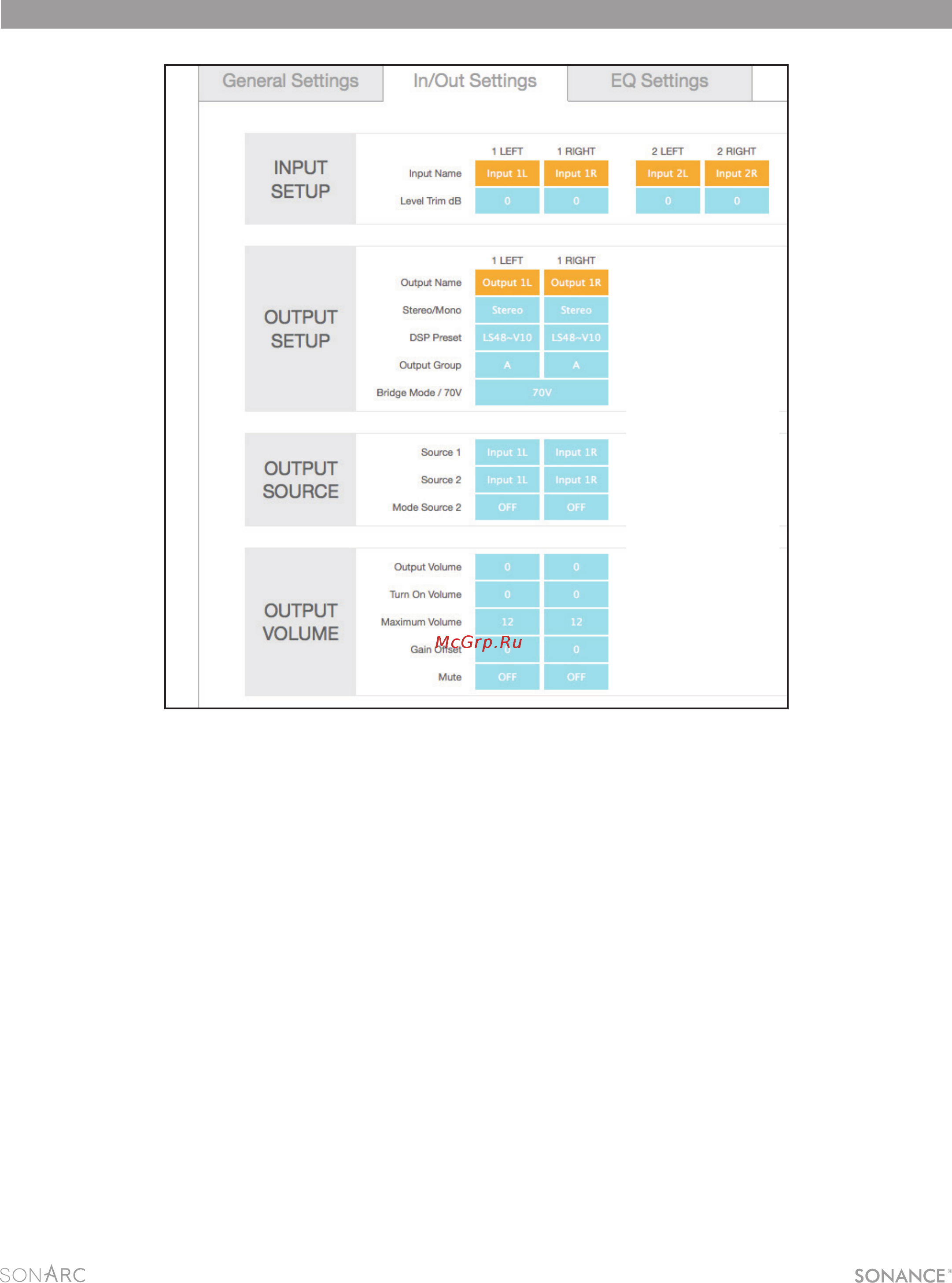

Input Setup

Input Name

This is a user entered field with a maximum of 16 characters.

Use these fields to describe the type of input connected.

Input Trim dB

This pull down menu allows for input levels to be adjusted +/-6dB.

This gives you the ability to level out all your inputs so when you

switch from input to input the levels will be equal. This can eliminate

any harsh transitions between sources with different output

voltages. Select the pull down menu in each channel to adjust

the level trim between plus or minus 6dB in increments of .5dB

Output Setup

Output Name

This is a user entered field with a maximum of 16 characters.

Use these fields to describe the location of the speakers.

Stereo / Mono

Allows each channel to be set for Stereo or Mono operation. When

Mono is selected the Left and Right of the input selected will be

combined to create Mono.

DSP Preset

Apply any of the available Sonance DSP presets to each channel of

the amplifier independently.

You can apply any open preset and then make modifications on the

EQ Settings page.

Output Group

The DSP 2-750 has two Output Group options A-B.

When using IP or IR to control the amplifier, commands are sent to

an output group and not to a specific channel.

Bridge Mode / 70V

Default setting for DSP 2-750 is 70V. When more power is required

two channels can be bridged. Follow the instructions on page 7 for

connecting the wires then select Bridge ON.
