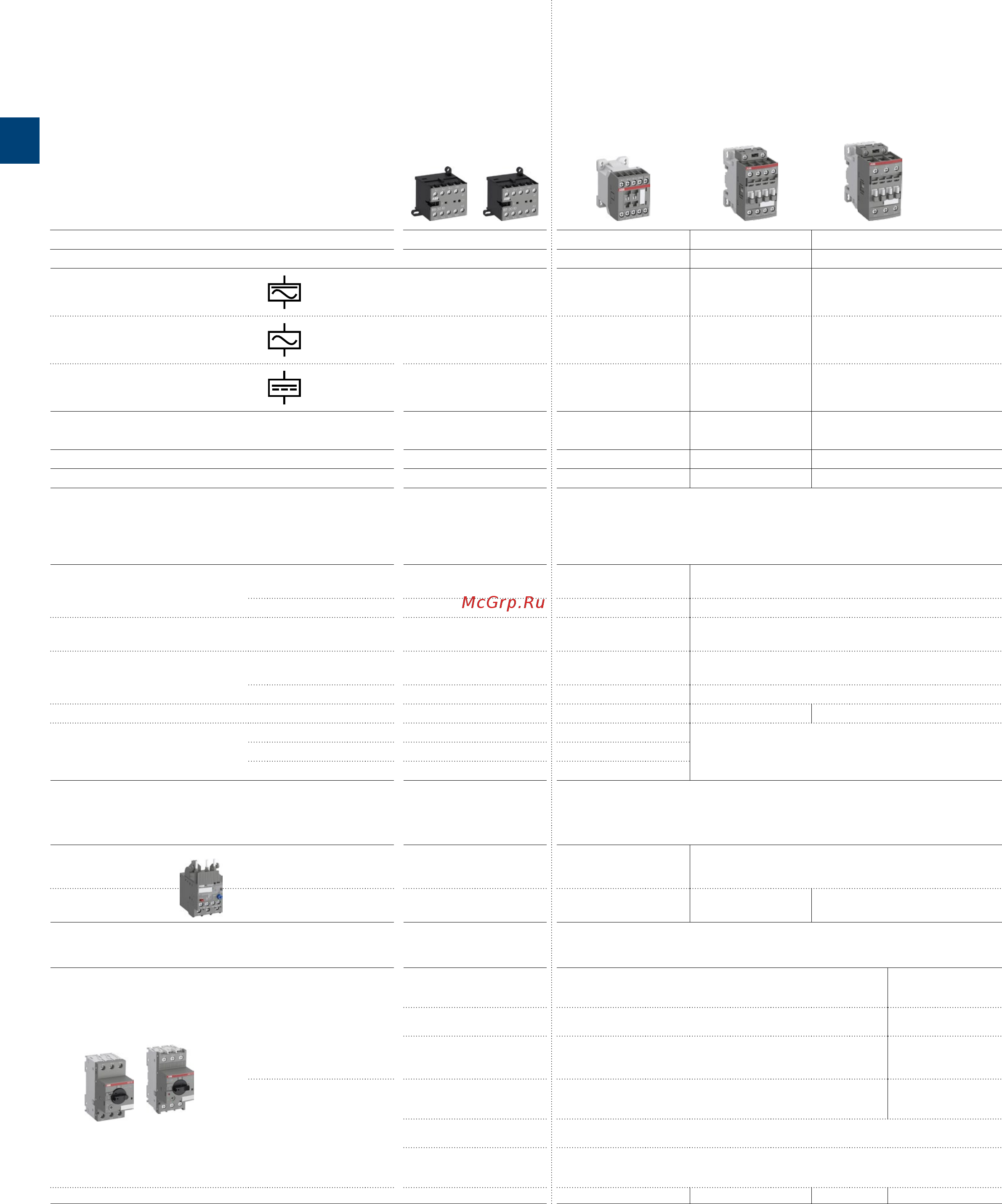

Contactors for motor control and
3-pole contactors
Mini contactors
IEC (1)
AC-3 Rated operational power
θ ≤ 60 °C (2), 400 V
kW 4 5.5 4 5.5 7.5 4 5.5 7.5 11 15 18.5 18.5 22 30 37 45 55 75 75 90 110 132 160 200 200 250
315 400
— 475 560 — —
UL/CSA
3-phase motor rating
480 V
hp 3 5 5 7.5 10 5 7.5 10 15 20 25 30 40 50 60 60 75 100 100 125 150 200 250 300 350 400
500 600
— 800 900 — —
AC / DC Control supply Type — — — — —
AF09 AF12 AF16 AF26 AF30 AF38 AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
AC Control supply Type
B6 B7 AS09 AS12 AS16
AF09 AF12 AF16 AF26 AF30 AF38
AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
DC Control supply Type
BC6 BC7 ASL09 ASL12 ASL16
AF09 AF12 AF16 AF26 AF30 AF38
AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
IEC
AC-3 Rated operational current
θ ≤ 60 °C (2), 400 V
A 8.5 11.5 9 12 15.5 9 12 18 26 32 38 40 53 65 80 96 116 140 146 190 205 265 305 370 400 460
580 750
— 860 1060 — —
AC-1 Rated operational current
θ ≤ 40 °C, 690 V
A 20
(400 V)
20
(400 V)
22 24 24 25 28 30 45 50 50 70 100 105 125 130 160 200 225 275 350 400 500 600 600 700
800 1050 1260
1350 1650 2050 2650
UL/CSA
General use rating
600 V
A 12
(300 V)
16 20 20 20 25 28 30 45 50 50 60 80 90 105 115 160 200 200 250 300 350 400 520 550 650
750 900 1210
1350 1650 2100 2700
NEMA
NEMA Size
— — 00 00 0 00 0 — 1 — — 2 — — 3 — — 4 — — — 5 — — — 6 —
7
— — 8 — —
(1) 1000 V IEC ratings available for AF80, AF96 and AF146 … AF2650 contactors.
(2)
θ
≤ 55 °C for mini contactors and AF400 ... AF2650 contactors.
Main accessories
Auxiliary contact blocks
Front mounting
CAF6 CA3-10
(1 x N.O.)
CA3-01
(1 x N.C.)
CA4-10
(1 x N.O.)
CA4-01
(1 x N.C.)
Side mounting
CA6 CAL4-11
(1 x N.O. + 1 x N.C.)
CAL19-11
(1 x N.O. + 1 x N.C.)
CAL18-11
(1 x N.O. + 1 x N.C.)
Timers
Electronic
TEF3-ON
TEF3-OFF
TEF4-ON
TEF4-OFF
Interlocking units (3)
Mechanical
VM3 VM4 VM96-4 VM19
(for same size contactors)
VM750H
VM750V
VM1650H
Mechanical / Electrical
VEM4
Connection
sets
For reversing contactors
BSM6-30 BER16C-3 BER16-4 BER38-4 BER65-4 BER96-4 BER140-4 BER205-4 BER370-4 BEM460-30 BEM750-30
Surge suppressors
Varistor (AC/DC)
RV-BC6 RV5
(24…440 V)
Built-in surge protection
RC type (AC)
RC5-1
(24…440 V)
Transil diode (DC)
RD7 RT5
(12…264 V )
(3) See available reversing contactors VB6, VB7 and VAS09 ... VAS16.
Overload relays
Thermal relays
Class 10
(Class 10A for TF140, TA200DU)
T16
(0.10…16 A)
T16
(0.10…16 A)
TF42
(0.10…38 A)
TF65
(22...67 A)
TF96
(40...96 A)
TF140DU
(66...142 A)
θ
≤ 55 °C
TA200DU
(66...200 A)
θ
≤ 55 °C
Electronic relays
Class 10E, 20E, 30E
E16DU
(0.10…18 .9 A)
EF19
(0.10…18 .9 A)
EF19
(0.10…18 .9 A)
EF45
(9…45 A)
EF65
(20...70 A)
EF96
(36...100 A)
EF146
(54...150 A)
EF205
(63...210 A)
EF370
(115...380 A)
EF460
(150…500 A)
EF750
(250…800 A)
E1250DU
(375…1250 A)
Manual motor starters Short-circuit protection devices
Thermal / magnetic protection
Class 10
MS116
(0.10…32 A)
Ics up to 50 kA for class 10A
MS116
(0.10...32 A)
lcs up to 50 kA for class 10A
MS165
(4)
(10...65 A)
lcs up to 100 kA
MS5100
(4 0…10 0 A)
Ics up to 50 kA
MCCB and switch-fuses
MS132
(0.10…32 A)
Ics up to 100 kA
MS132
(0.10...32 A)
lcs up to 100 kA
MS495
(45…100 A)
Ics up to 50 kA
MS497
(2 2…10 0 A)
Ics up to 100 kA
Magnetic only types
MO132
(0.16...32A)
MO132
(0.16...32 A)
Ics up to 100 kA
MO165
(4)
(16...65 A)
lcs up to 100 kA
MO5100
(70…10 0 A)
Ics up to 36 kA
MO496
(32…100 A)
Ics up to 100 kA
MO495
(6 3…100 A )
Ics up to 50 kA
Accessories
For contactor mounting
BEA7/132 BEA16-3 BEA16-4 BEA38-4 BEA65-4 (5)
(4) MS165/MO165 are suitable for use with AF09 ... AF30 for North american applications.
(5) BEA65-4 suitable for MS165 and MO165 only.
