CAPACITOR REFORMING

Inspection Instruction

3AFE 6873 5190

00522808_G.DOC

Dept.

Project

ORANGE

Status Date

05.May 2010

Author

Haapala Mari

Status

APPROVED/DAVIDSAINEN JANNE

Revision

Page

3 / 5

a) Method 2A

Capacitors are reformed by switching in a rectifier and resistor circuit, which is connected

to the drive input. The reforming circuit is given in figure 2 below. Circuit component

values for different voltages are given in table 1. See the reforming time in figure 1.

WARNING: Disconnect the mains supply while the reforming circuit is connected.

Note! Markings for drive input differs between drive types:

ACS550

U1 V1 W1

ACS150/310/320/350/355

U1/L V1/N W1

ACS50/55

L/R N/S

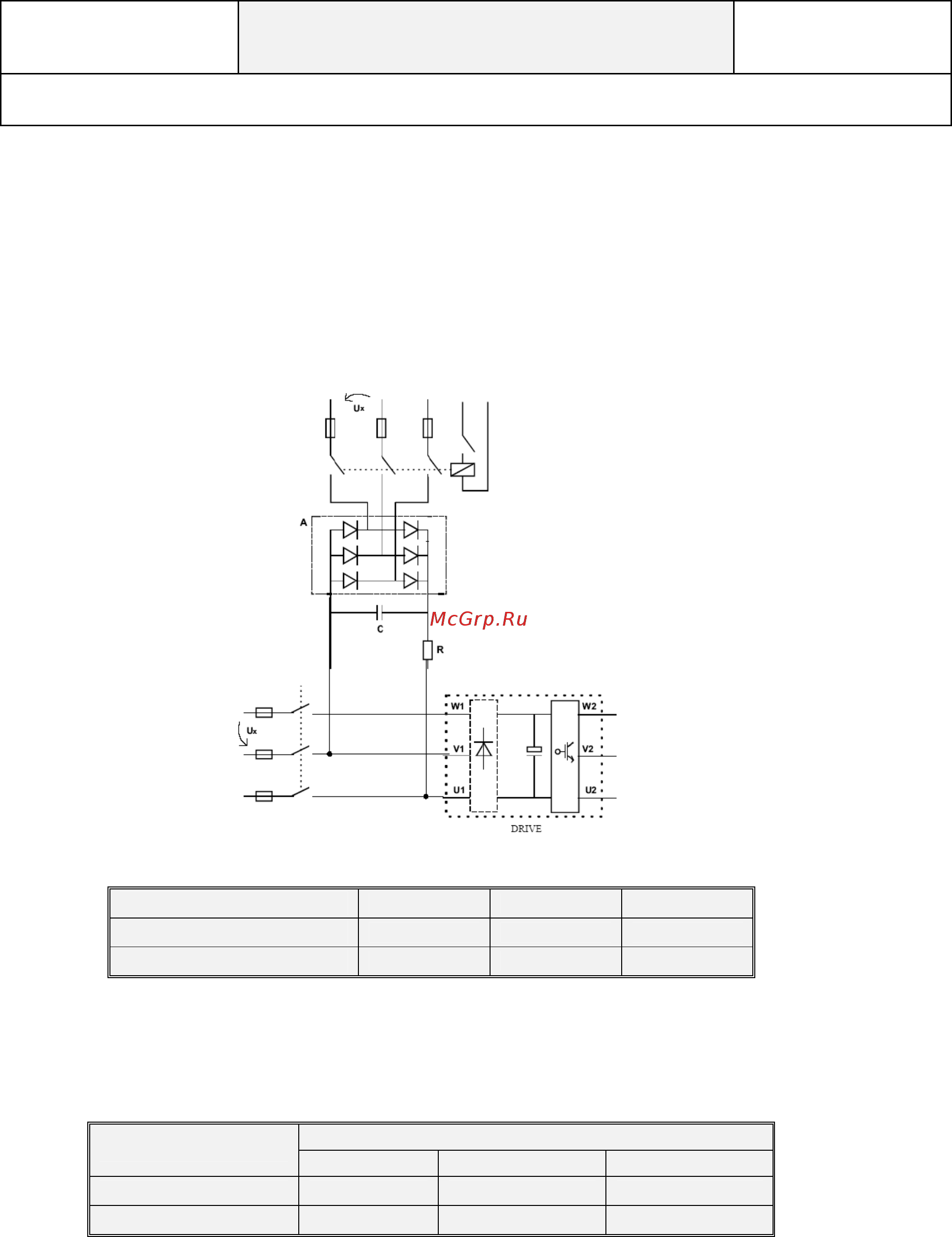

Figure 2. The reforming circuit for method 2A.

Recommended components

Voltage

A R C

200 V < U

< 240 V SKD 82/16 220  / 700 W 22 nF / 2000 V

380 V < U

< 480 V SKD 82/16 470  / 1200 W 22 nF / 2000 V

Table 1. Circuit component values for different voltages.

b) Method 2B
