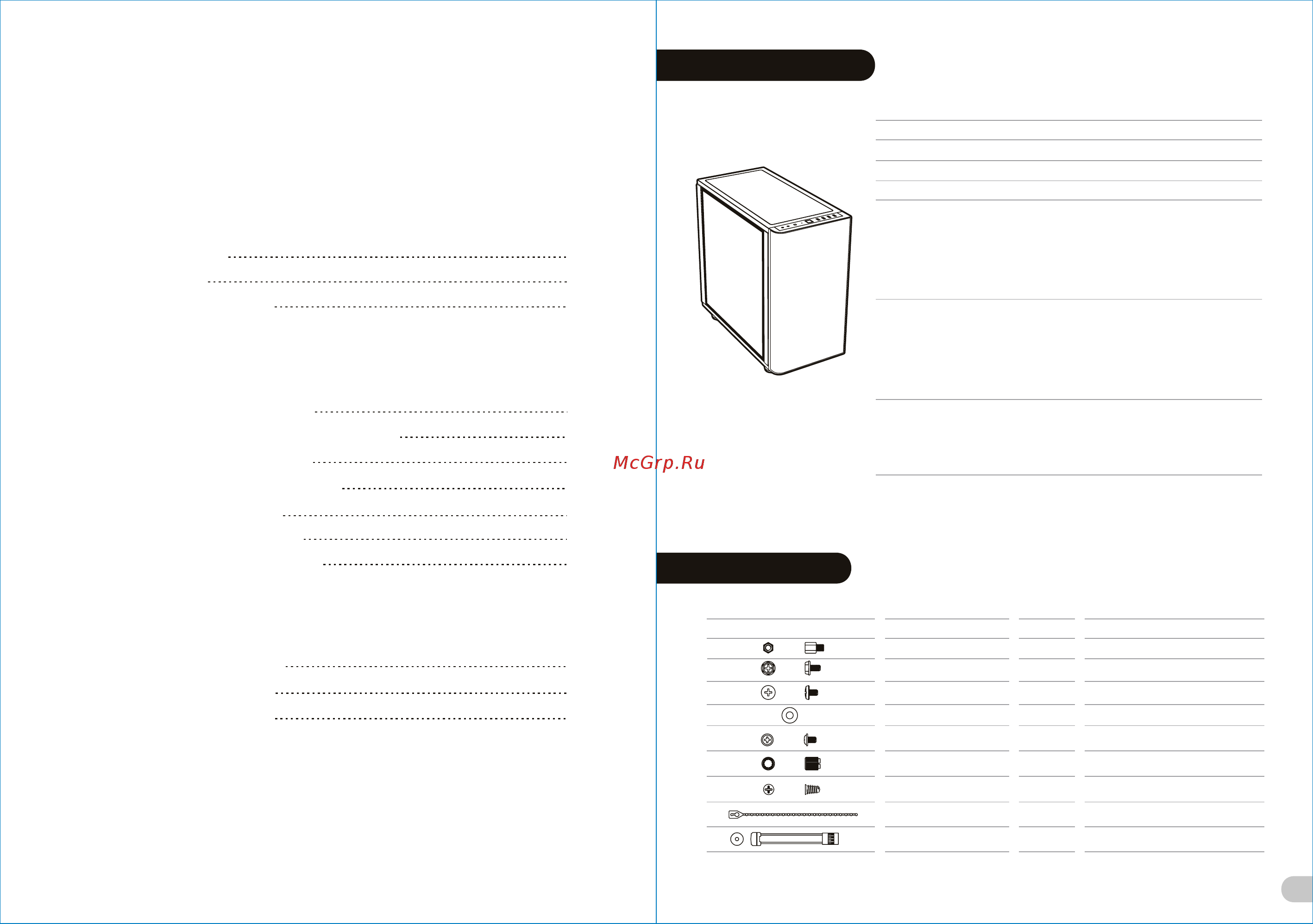

Thermaltake View 31 TG ARGB (CA-1H8-00M1WN-02) [3/12] 頁面 3
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Thermaltake View 31 TG ARGB (CA-1H8-00M1WN-02) [3/12] 頁面 3

Thermaltake View 31 TG ARGB (CA-1H8-00M1WN-02) [3/12] 頁面 3
Chapter 1. Product Introduction
Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
01
02
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
Side Panels Disassembly
Power Supply Unit (PSU) Installation
Motherboard Installation
3.5" & 2.5" HDD Installation
PCI Card Installation
Air Cooling Installation
Liquid Cooling Installation
04
05
06
07
09
10
11
Chapter3 Leads Installation Guide
Case LED connection
USB 3.0 connection
Audio connection
3.0
3.1
3.2
13
13
13
Specification
Accessory
Screw Ø5 x 12mm
4
Case Fan
Figure
Parts Name
Cable Tie
Buzzer
Screw＃6-32 x 6mm
Screw＃6-32 x 5mm
Stand-off＃6-32 x 6mm
Rubber
Nut Setter
Q'ty
2
4
12
12
1
5
1
Used for
Cable Management
3.5”HDD
Power
Motherboard Alarm
Motherboard
3.5”HDD
Stand-off
Screw M3 x 5mm
22
Motherboard, 2.5”HDD
Mid Tower
Radiator Support
Tempered Glass (Left & Right)
SPCC
Case Type
Dimension (H*W*D)
Side Panel
Material
Fan Support
Clearance
CPU cooler height limitation: 180mm
VGA length limitation: 278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation: 180mm (With One Bottom Fan)
220mm (Without Bottom Fan)
Front:
3 x 120mm, 2 x 140mm, 1 x 200mm
Top:
3 x 120mm, 3 x 140mm, 2 x 200mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm, 2 x 140mm
497 x 250 x 511mm (19.5 x 9.8 x 20.1 inch)
Front:
1 x 360mm, 1 x 280mm
Top:
1 x 360mm, 1 x 280mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
1 x 120mm, 1 x 140mm
1
