Ada PROF-X6 А00160 [29/36] Adjusting the theodolite

Содержание

• Measurement foundation 1
• Prof х6 хю 1
• Руководство по эксплуатации 1
• Оглавление 2
• Описание 3
• Технические характеристики 3
• Комплектация 4
• Pr0fx6 хю 6
• Конструктивные особенности прибора 6
• Pr0fx6 хю 7
• Использование теодолита 8
• Pr0fx6 хю 11
• Юстировка поверка теодолита 11
• Меры предосторожности 14
• Свидетельство о приемке и продаже 15
• Гарантийный талон 17
• Measurement foundation 19
• Prof x6 x10 19
• Eng contents 20
• Review 21
• Technical parameters 21
• Complete set 22
• Construction features 24
• How to use the instrument 26
• Adjusting the theodolite 29
• Precautions 32
• Certificate of acceptance and sale 33
• __________________________________________ _____________________ 33
• Before operating you should read service instruction 34
• Warranty card 34
• Www adainstruments com 36

Похожие устройства

• Fluke 773 Инструкция по эксплуатации
• LG MH-6352B Инструкция по эксплуатации
• Centurion NAD v.2 Инструкция по эксплуатации
• E-Mu TRACKER PRE USB Creative Professional Инструкция по эксплуатации
• Whirlpool AWE 9629 Инструкция по эксплуатации
• Ada PROF-X6 (с поверкой) Инструкция по эксплуатации
• LG MH-6346W Инструкция по эксплуатации
• Fluke 77 IV Инструкция по эксплуатации
• Echo AUDIOFIRE 12 Инструкция по эксплуатации
• Belkin F4U006er Инструкция по эксплуатации
• Centurion XANADU v.2 Инструкция по эксплуатации
• Siemens WS 10X47 AOE Инструкция по эксплуатации
• Ada ZCT 777 А00161 Инструкция по эксплуатации
• LG MH-6346QMS Инструкция по эксплуатации
• Fluke 787 Инструкция по эксплуатации
• Echo AUDIOFIRE 2 Инструкция по эксплуатации
• Belkin F5U404PerBLK Инструкция по эксплуатации
• Siemens WM 12S47 AOE Инструкция по эксплуатации
• Ada ProDigit 60 А00168 Инструкция по эксплуатации
• LG MH-6346QMB Инструкция по эксплуатации

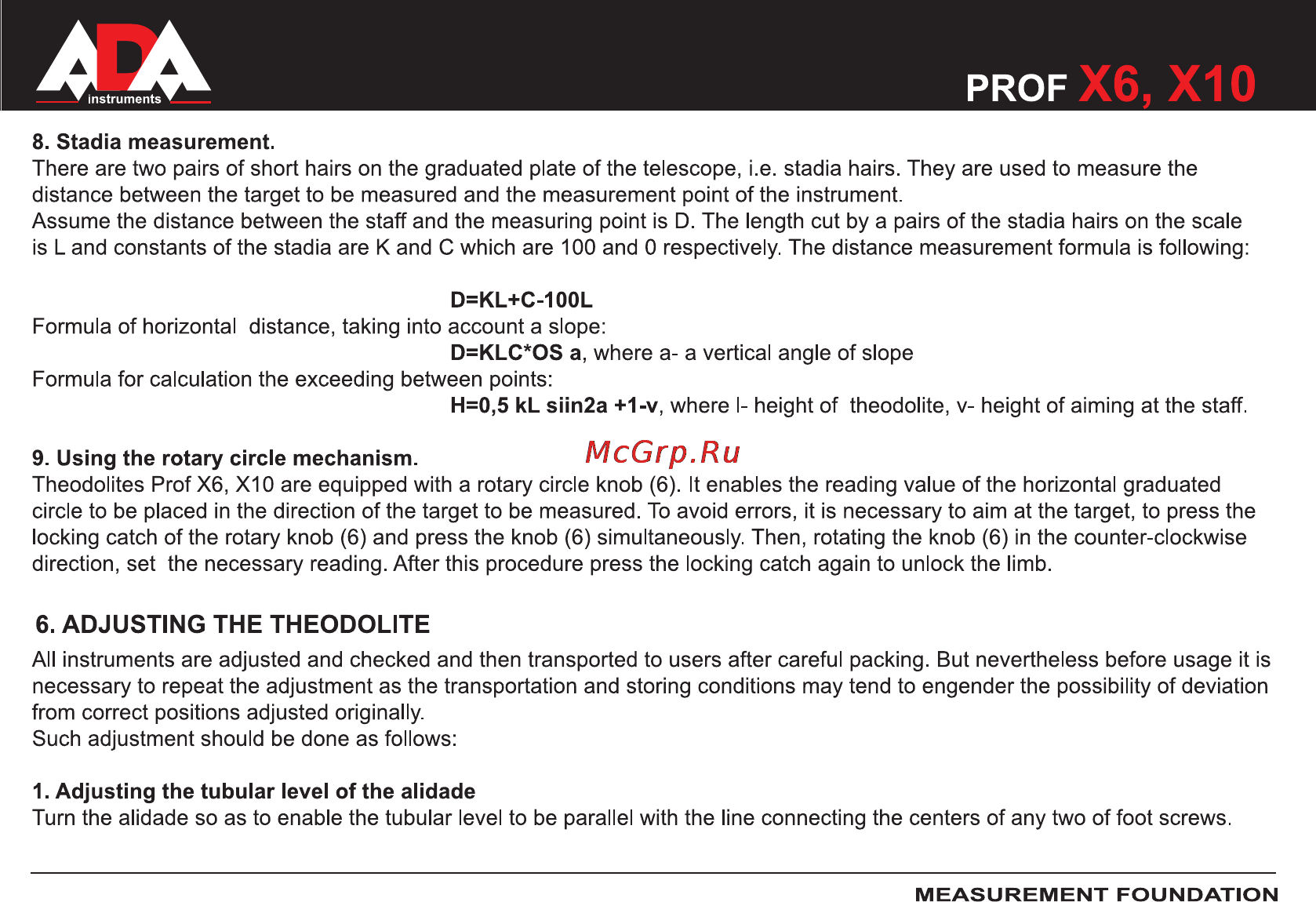

PROF 8 Stadia measurement There are two pairs of short hairs on the graduated plate of the telescope i e stadia hairs They are used to measure the distance between the target to be measured and the measurement point of the instrument Assume the distance between the staff and the measuring point is D The length cut by a pairs of the stadia hairs on the scale is L and constants of the stadia are K and C which are 100 and 0 respectively The distance measurement formula is following D KL C 100L Formula of horizontal distance taking into account a slope D KLC OS a where a a vertical angle of slope Formula for calculation the exceeding between points H 0 5 kL siin2a 1 v where I height of theodolite v height of aiming at the staff 9 Using the rotary circle mechanism Theodolites Prof X6 X10 are equipped with a rotary circle knob 6 It enables the reading value of the horizontal graduated circle to be placed in the direction of the target to be measured To avoid errors it is necessary to aim at the target to press the locking catch of the rotary knob 6 and press the knob 6 simultaneously Then rotating the knob 6 in the counter clockwise direction set the necessary reading After this procedure press the locking catch again to unlock the limb 6 ADJUSTING THE THEODOLITE All instruments are adjusted and checked and then transported to users after careful packing But nevertheless before usage it is necessary to repeat the adjustment as the transportation and storing conditions may tend to engender the possibility of deviation from correct positions adjusted originally Such adjustment should be done as follows 1 Adjusting the tubular level of the alidade Turn the alidade so as to enable the tubular level to be parallel with the line connecting the centers of any two of foot screws 29 MEASUREMENT FOUNDATION
