5.2.9 Control Terminals
Drawing reference numbers:
1. 10 pole plug digital I/O.
2. 3 pole plug RS-485 Bus.
3. 6 pole analog I/O.
4. USB Connection.

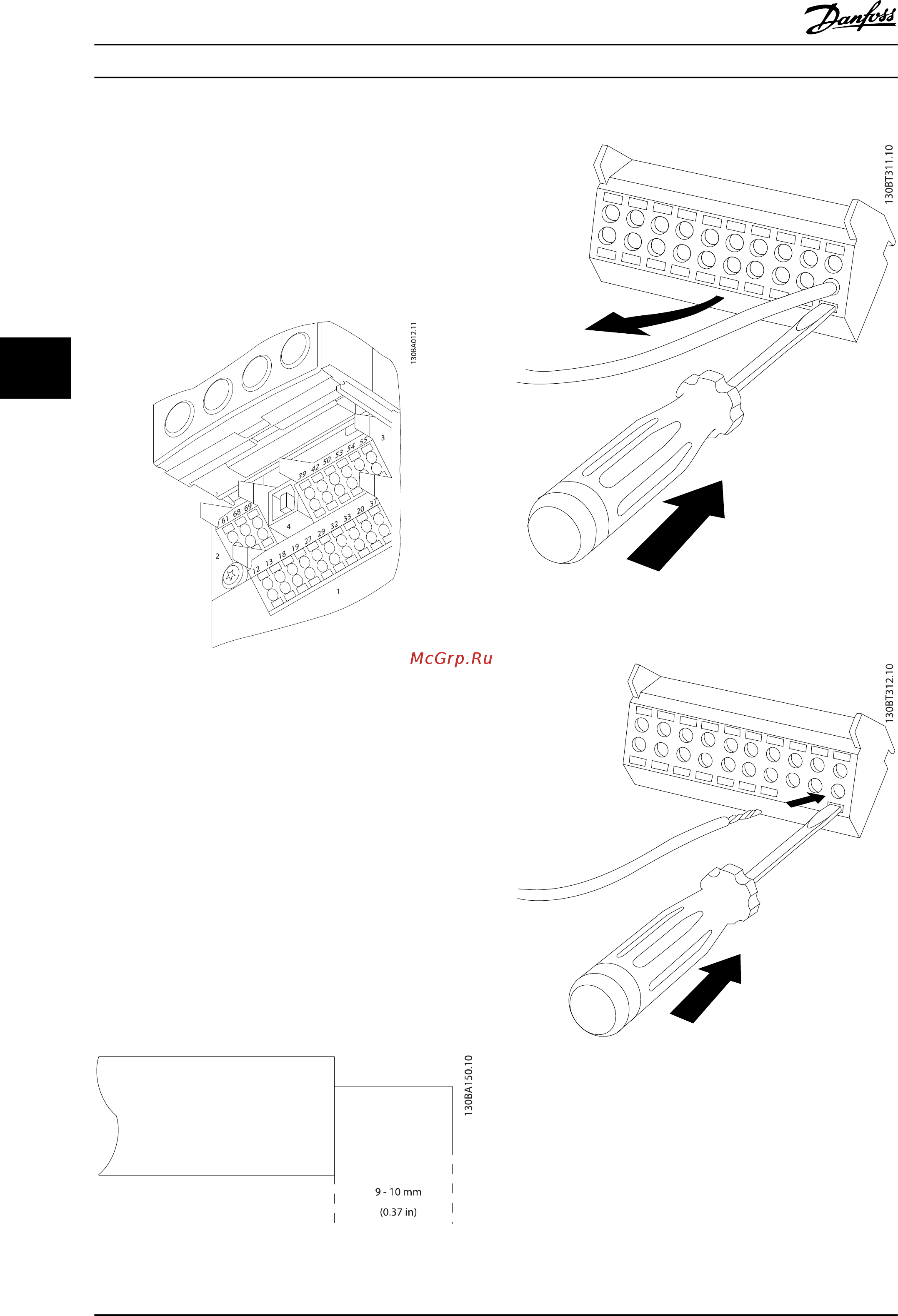

Illustration 5.17 Control Terminals (all Enclosures)
5.2.10 Control Cable Terminals
To mount the cable to the terminal:
1. Strip isolation of 9-10 mm
2.
Insert a screw driver
1)
in the rectangular hole.
3. Insert the cable in the adjacent circular hole.
4. Remove the screw driver. The cable is now
mounted to the terminal.
To remove the cable from the terminal:
1.
Insert a screw driver
1)
in the square hole.
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm
1.
Illustration 5.18
2.
Illustration 5.19
3.
Illustration 5.20
How to Install
VLT
®
Refrigeration Drive Design Guide
68 MG16G102 - VLT
®
is a registered Danfoss trademark
5
5
