If [OK] is pressed, the Application Guide will start with the

following screen:

130BC952.10

Illustration 4.2

NOTE

Numbering of steps in wizard (e.g. 1/12) can change

depending on choices in the workflow.

This screen will automatically change to the first input

screen of the Application Guide:

130BC953.10

Illustration 4.3

130BC954.10

Illustration 4.4

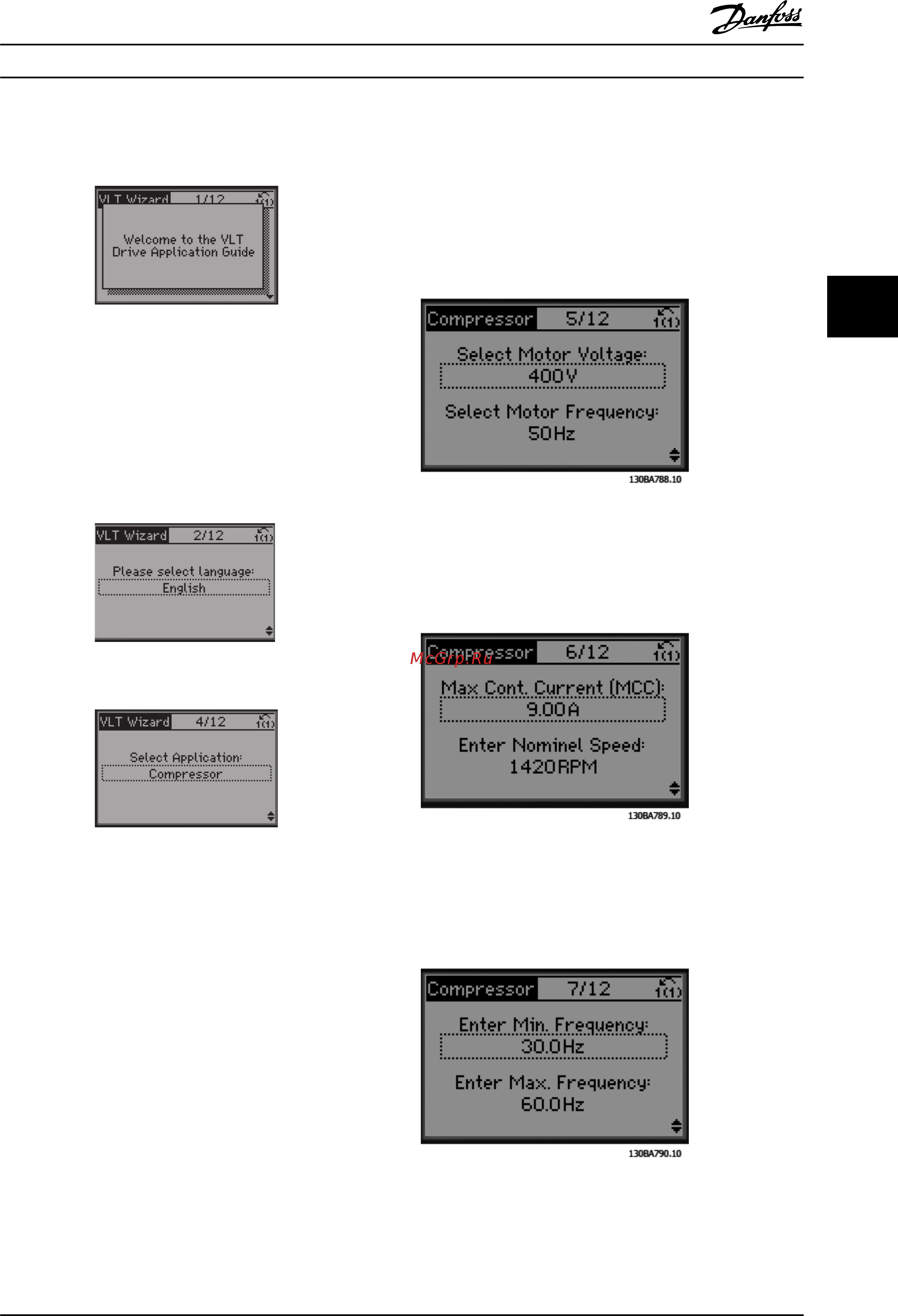

Compressor pack set-up

As an example, see screens below for a compressor pack

set-up:

Voltage and frequency set-up

Illustration 4.5

Current and nominal speed set-up

Illustration 4.6

Min. and max. frequency set-up

Illustration 4.7

Start Up and Functional Tes... VLT® Refrigeration Drive 110-250 kW Operating Instructions

MG16F102 - VLT® is a registered Danfoss trademark 23

4 4
