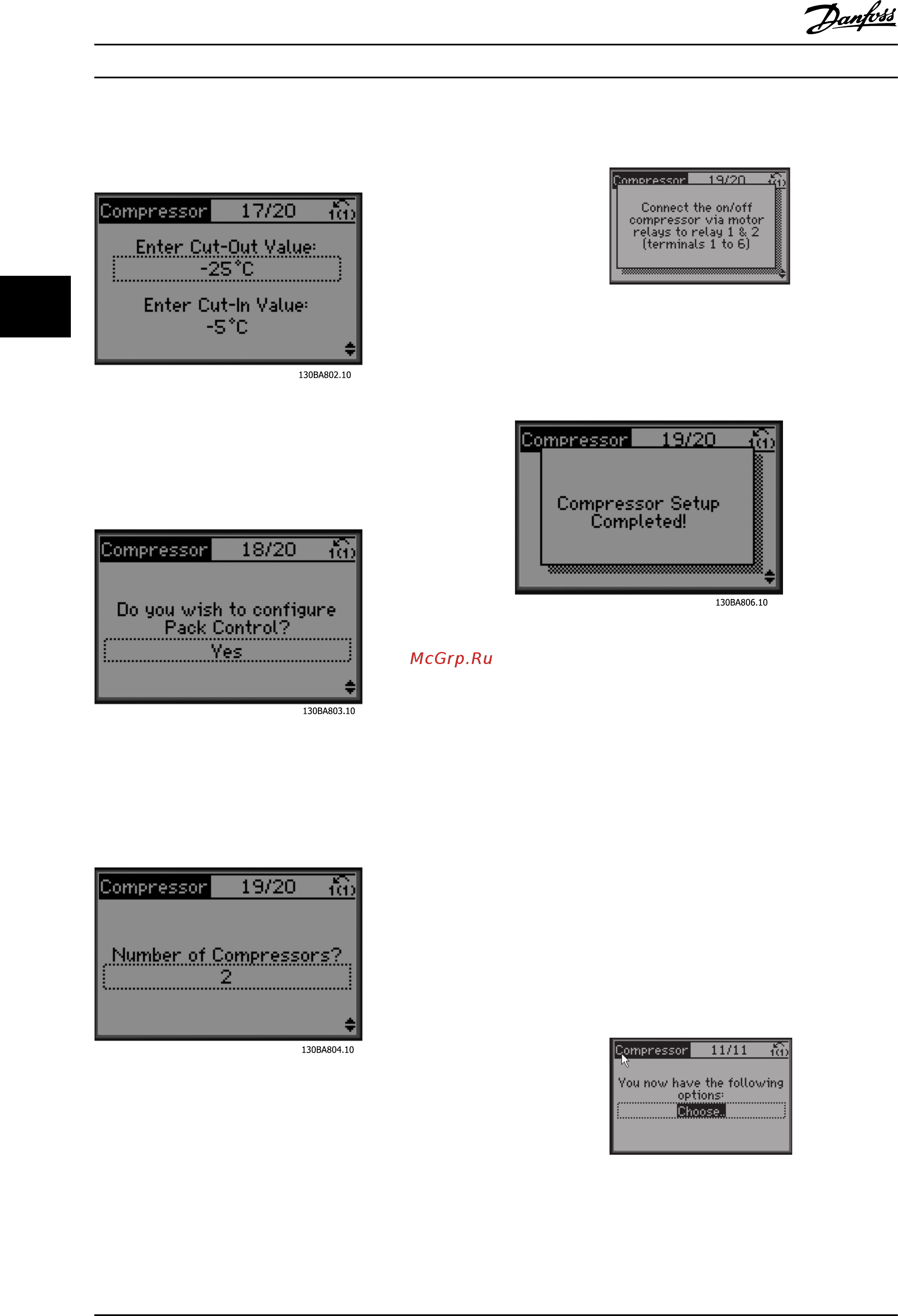

Set cut out/in value
Illustration 4.19
Choose pack control set-up
Illustration 4.20
Set number of compressors in pack
Illustration 4.21
Info: Connect accordingly
130BC955.10
Illustration 4.22
Info: Setup completed
Illustration 4.23
After completing set-up, choose to re-run wizard or start
application. Select between the following options:
•
Re-run wizard
•
Go to main menu
•
Go to status
•
Run AMA - Note this is a reduced AMA if
compressor application is selected and full AMA if
single fan and pump is selected.
•
If condenser fan is selected in application NO
AMA can be run.
•
Run application- this mode starts the frequency
converter in either hand/local mode or via an
external control signal if open loop is selected in
an earlier screen
130BP956.10
Illustration 4.24
Start Up and Functional Tes... VLT® Refrigeration Drive 110-250 kW Operating Instructions
26 MG16F102 - VLT® is a registered Danfoss trademark
44
