46

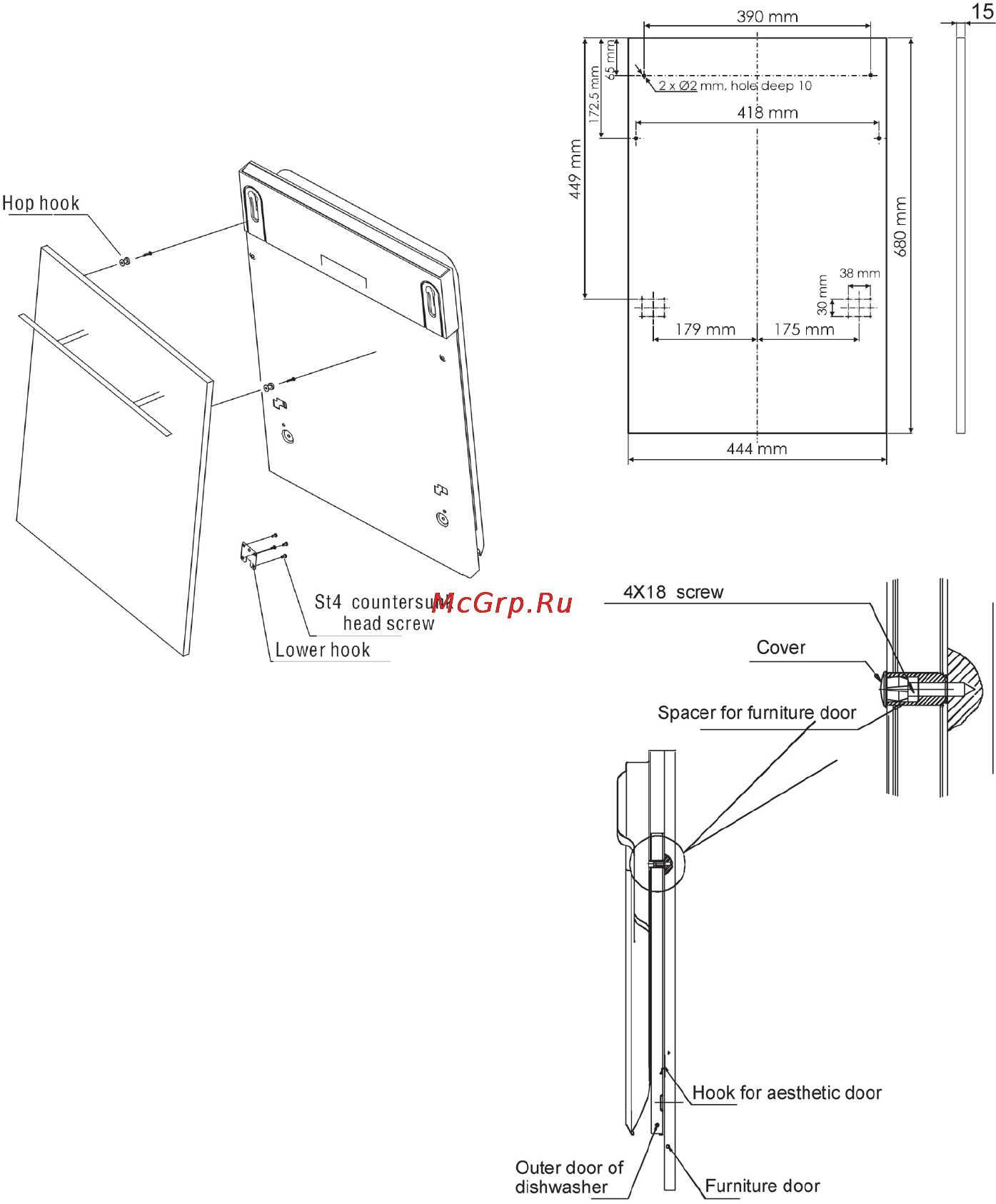

aesthetIc panel’s dImensIons and InstallatIon
1. Theaestheticwoodenpanelcouldbepro-
cessedaccordingtothegure3.
2. Install the hook on the aesthetic wooden
panelandputthehookintotheslotofthe
outerdoorofdishwasher(seegure4a).
After positioning of the panel, x the
panel onto the outer door by screws
andbolts(Seegure4b).
1. Takeawaythecover.
2. Pinupthescrew.
3. Getbackthecover.
Figure3
Figure4a
Figure4c
