tensIon adjustment of the door sprIng
Thedoorspringsaresetatthefactorytothe
propertensionfortheouterdoor.Ifaesthetic
wooden panel are installed, you will have
toadjustthedoorspringtension.Rotatethe
adjustingscrewtodrivetheadjustortostrain
orrelaxthesteelcable(seegure5).
Doorspringtensioniscorrectwhenthedoor
remains horizontal in the fully opened posi-
tion,yetrisestoaclosewiththeslightliftof
anger.
connectIon of draIn hoses
Insertthedrainhoseintoadrainpipewitha
minimumdiameterof4cm,orletitrunintothesink,makingsuretoavoidbending
orcrimpingit.Usethespecialplasticsupportthatcomeswiththeappliance(gure
6).Thefreeandofthehosemustbeataheightbetween400and1000mmand
mustnotbeimmersedinwatertoavoidthebackowofit.ATTENTION:Thespecial
plastichosesupportmustbesolidlyfastenedtothewalltopreventthedrainhose
frommovingandallowingwatertospilloutsidethedrain.
dIshWasher InstallatIon steps
1. Installthefurnituredoortotheouterdoorofthedishwasherusingthebrackets
provided.Refertothetemplateforpositioningofthebrackets.
2. AdjustthetensionofthedoorspringsbyusinganAllenkeyturninginaclockwise
motiontotightentheleftandrightdoorsprings.Failuretodothiscouldcause
damagetoyourdishwasher(Illustration2).
3. Connecttheinlethosetothecoldwatersupply.
4. Connectthedrainhose.Refertodiagram.(Figure6)
5. Connectthepowercord.
6. Putthedishwashertosliderails(lIIustration4).
7. Afxthecondensationstripundertheworksurfaceofcabinet.Pleaseensurethe
condensationstripisushwithedgeofworksurface.
8. Placethedishwasherintoposition.
9. Levelthedishwasher.Therearfeetcanbeadjustedfromthefrontofthedish-

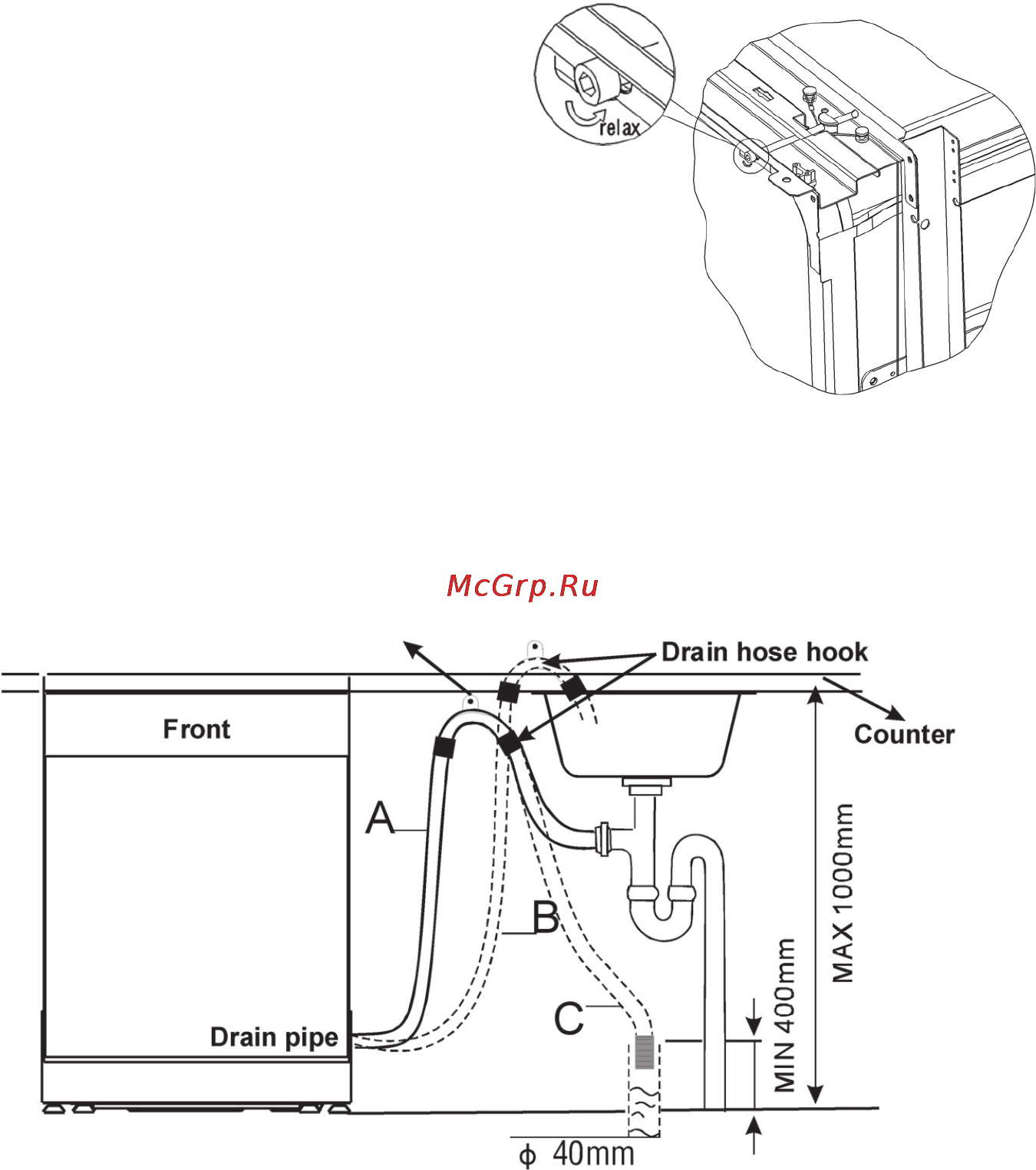

Figure5
Figure6
