ENGLISH

Installation

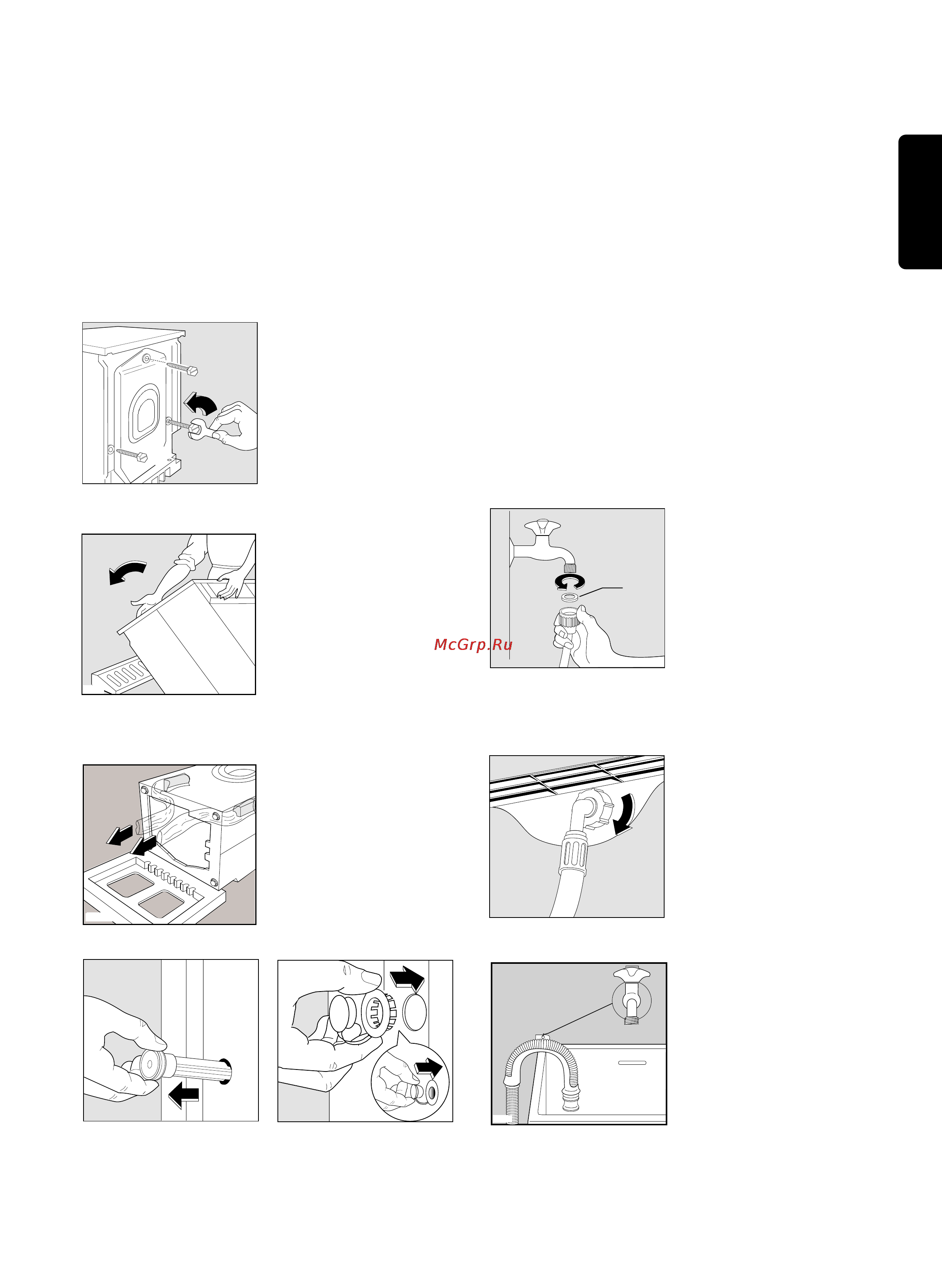

Transit security bars

Before starting the machine up, the transport

security bars must be removed as follows:

You are advised to keep all the transport security

bars in case the appliance has to be transported

again.

1. Unscrew and remove

the three rear screws

by means of a key.

2. Lean the appliance

back on the rear and

fit one of the

polystyrene angles

between the appliance

and the floor.

Make sure the hoses

are not squashed.

3. Carefully remove the

plastic bags on the

right and the left,

pulling them to the

centre of the appliance

4. Place the machine in an upright position and

remove the three plastic bolts.

5. Plug the 3 holes with the plastic plugs which you

can find in the envelope containing the instruction

booklet.

Hydraulic connection

There should be a COLD WATER tap near the

washing machine with a screwing on connection

pipe of

⁄

” gas for the water supply, a sink, a wash

basin or a drainage system in the wall.

Previously check if:

— it is not a hot water tap.

— the running water is clean. If not, run off a

reasonable amount of water to flush out any

debris that may have collected in the pipes.

Have the permanent drainage system in the wall

checked by a plumber.controlar su buen estado por

un fontanero.

A) Place the enclosed

rubber joint, delivered in

a plastic bag together

with the appliance (A)

Fig.6), at the very end of

the inlet hose and

carefully screw the pipe

to the tap taking care not

to damage the

screwdrive and fix the

nut well on to the end in

order to avoid leaking.

B) If necessary turn the

hose adequately by

unscrewing the nut at the

rear of the appliance.

C) Now tighten the nut

anew to avoid leaks.

(Open the tap and asure

that it does not leak and

close it again.)

D) Place the discharging

hose in a washbasin or

sink with the aid of the

bent piece delivered

separately. The bent

piece has to be entered

into the tube’s mouth in

order to assure the

support. Aforesaid piece

allows the hose to be

fixed to the wall by means

of an opening on the

upper part and that way

the hose does not move

and its falling is avoided.
