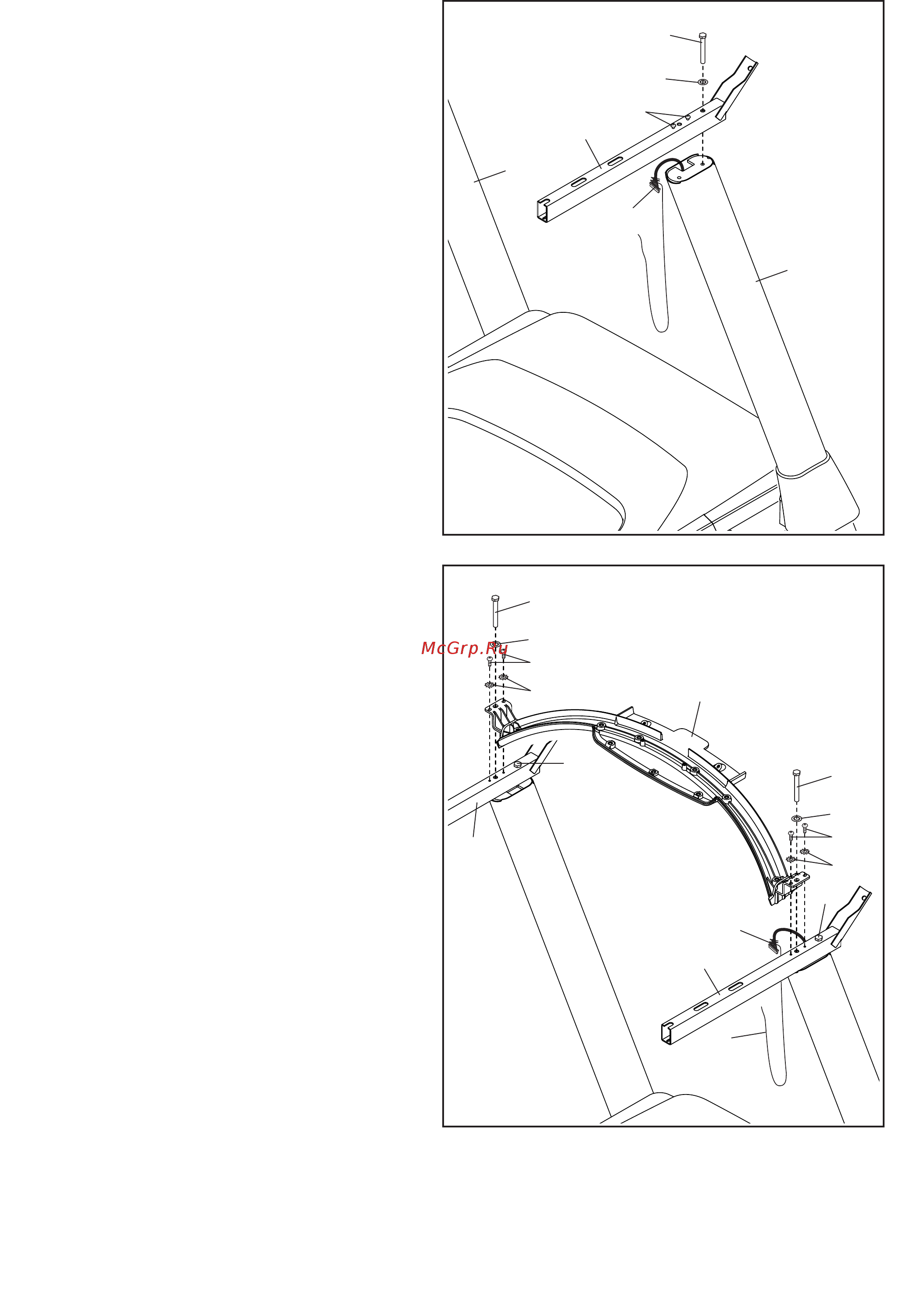

6. Attach a Handrail (84) to the Right Upright (90)

with a 5/16" x 2 1/2" Screw (28) and a 5/16" Star

Washer (11) in the location shown. Make sure

not to pinch the Upright Wire (81). Do not

fully tighten the Screw yet.

Then, remove and discard the two indicated

screws (E).

Attach the other Handrail (not shown) to the

Left Upright (89) in the same way. Note: There

are no wires on the left side.

7. IMPORTANT: To avoid damaging the Pulse

Crossbar (93), do not use power tools and do

not overtighten the #10 x 3/4" Screws (9).

Orient the Pulse Crossbar (93) as shown. Attach

the Pulse Crossbar to the Handrails (84) with

four #10 x 3/4" Screws (9) and four #10 Star

Washers (5); start all four Screws, and then

tighten them. Make sure not to pinch the

Upright Wire (81).

Next, tighten two 5/16" x 2 1/2" Screws (28)

with two 5/16" Star Washers (11) into the Pulse

Crossbar (93) as shown.

Firmly tighten the four 5/16" x 2 1/2" Screws

(28).

Then, remove the wire tie (A) from the Upright

Wire (81).
