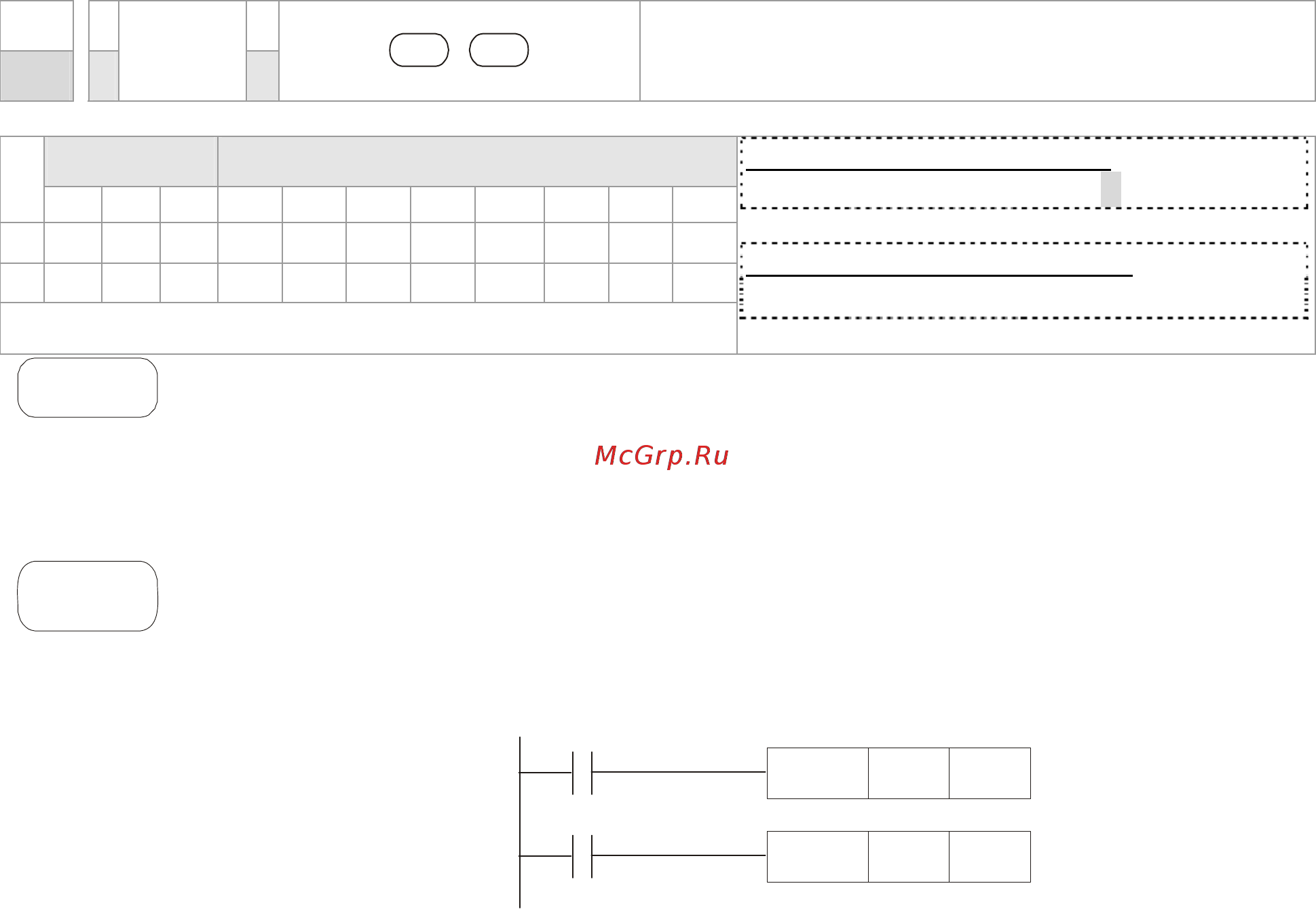

Chapter 14 PLC Function |C200 Series
14-45
API
12 D
MOV
P
S D
Moving the data
Bit Devices Word Devices
X Y M K H KnX KnY KnM T C D
S
＊ ＊ ＊ ＊ ＊ ＊ ＊ ＊
D
＊ ＊ ＊ ＊ ＊
Operand: None
16-bit command (5 STEPS)
MOV
MOVP
32-bit command (9 STEPS)
－ － － －
Flag signal: None
Explanation
1. S: Source of data D: Destination of data
2. When this instruction is executed, the content of S will be moved directly
to D. When this instruction is not executed, the content of D remains
unchanged.
Example
1. When X0 = Off, the content in D10 will remain unchanged. If X0 = On, the
value K10 will be moved to D10 data register.
2. When X1 = Off, the content in D10 will remain unchanged. If X1 = On, the
present value T0 will be moved to D10 data register.
X0
K10MOV D0
X1
T0MOV D10
