Chapter 9 Digital Keypad|C200
9-3

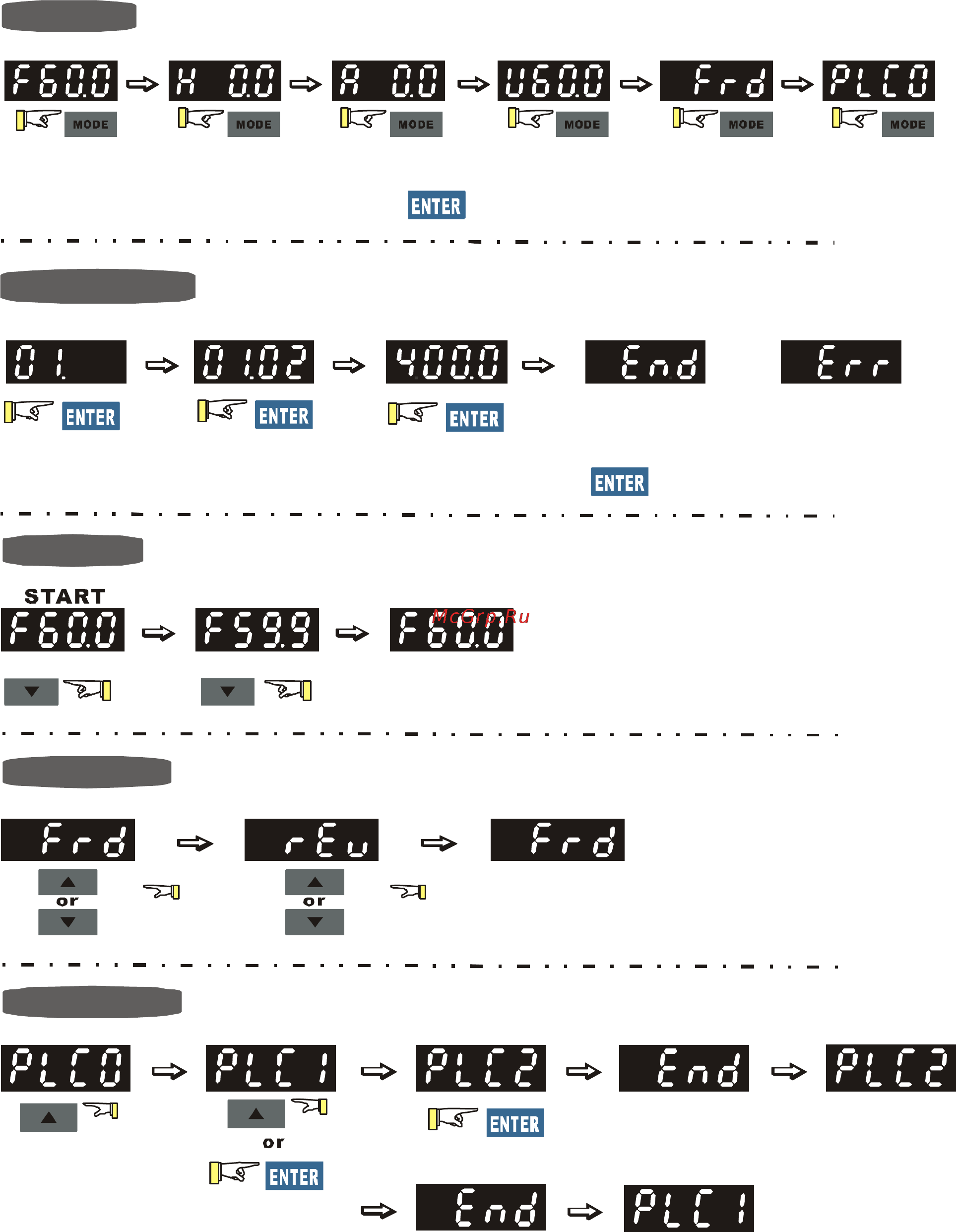

How to Operate the Digital Keypad
To shift data
Setting direction
Setting PLC Mode
Setting Mode
Setting parameters
(When operation source is digital keypad)
enter PLC2 mode
enter PLC1 mode
START
GO START
NOTE:
In the selection mode, press
to set the parameters.
Success to
set parameter.
Input data error
or
NOTE
：
In the parameter setting mode, you can press
to return the selecting mode.
