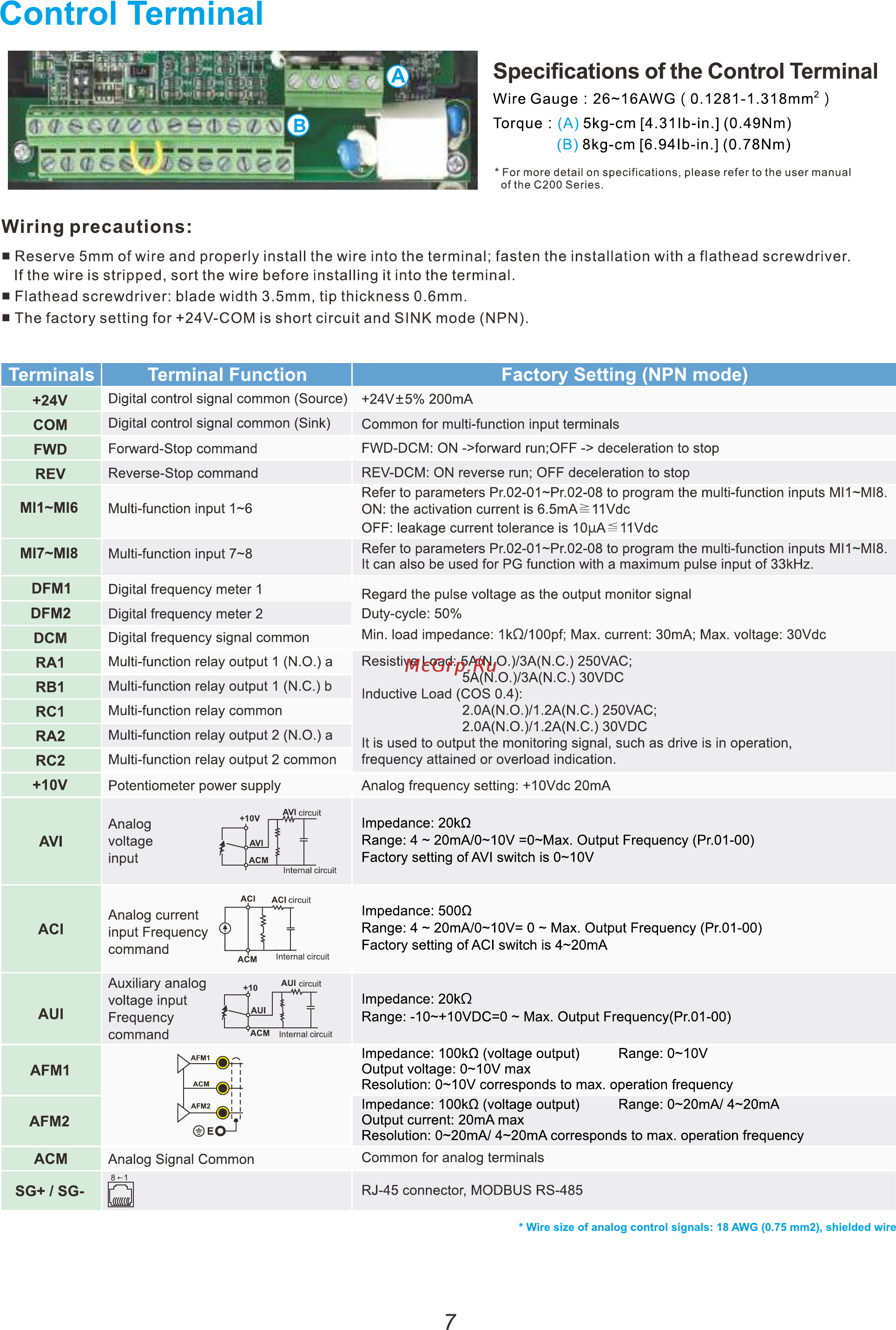

Control Terminal Specifications of the Control Terminal Wire Gauge 26 16AWG 0 1281 1 318mm2 Torque A 5kg cm 4 311b in 0 49Nm B 8kg cm 6 94Ib in 0 78Nm For more detail on specifications please refer to the user manual of the C200 Series Wiring precautions Reserve 5mm of wire and properly install the wire into the terminal fasten the installation with a flathead screwdriver If the wire is stripped sort the wire before installing it into the terminal Flathead screwdriver blade width 3 5mm tip thickness 0 6mm The factory setting for 24V COM is short circuit and SINK mode NPN Terminal Function Terminals Factory Setting NPN mode 24V Digital control signal common Source 24V 5 200mA COM Digital control signal common Sink Common for multi function input terminals FWD Forward Stop command FWD DCM ON forward run OFF deceleration to stop REV Reverse Stop command REV DCM ON reverse run OFF deceleration to stop Refer to parameters Pr 02 01 Pr 02 08 to program the multi function inputs MI1 MI8 ON the activation current is 6 5mA HVdc OFF leakage current tolerance is 10pA 11 Vdc Refer to parameters Pr 02 01 Pr 02 08 to program the multi function inputs MI1 MI8 It can also be used for PG function with a maximum pulse input of 33kHz MI1 MI6 Multi function input 1 6 MI7 MI8 Multi function input 7 8 DFM1 Digital frequency meter 1 DFM2 Digital frequency meter 2 Regard the pulse voltage as the output monitor signal Duty cycle 50 DCM Digital frequency signal common Min load impedance 1kQ 100pf Max current 30mA Max voltage 30Vdc RA1 Multi function relay output 1 N O a RB1 Multi function relay output 1 N C b RC1 Multi function relay common RA2 Multi function relay output 2 N O a RC2 Multi function relay output 2 common Resistive Load 5A N O 3A N C 250VAC 5A N O 3A N C 30VDC Inductive Load COS 0 4 2 0A N O 1 2A N C 250VAC 2 0A N O 1 2A N C 30VDC It is used to output the monitoring signal such as drive is in operation frequency attained or overload indication 10V Potentiometer power supply Analog frequency setting 10Vdc 20mA I AVI circuit AVI Impedance 20kQ Range 4 20mA 0 10V 0 Max Output Frequency Pr 01 00 Factory setting of AVI switch is 0 10V v j 1 AVI 1 ACM Analog voltage input Internal circuit ftCI ACI circuit ACI AUI Analog current input Frequency C command 11 CM Internal circuit Auxiliary analog voltage input Frequency command AUI circuit Impedance 20kO Range 10 10VDC 0 Max Output Frequency Pr 01 00 ACM internal circuit K AFM1 AFM1 ACM I I AFM2 ACM Impedance 500Q Range 4 20mA 0 10V 0 Max Output Frequency Pr 01 00 Factory setting of ACI switch is 4 20mA EO Analog Signal Common Impedance 100kO voltage output Range 0 10V Output voltage 0 10V max Resolution 0 1OV corresponds to max operation frequency Impedance 100kO voltage output Range 0 20mA 4 20mA Output current 20mA max Resolution 0 20mA 4 20mA corresponds to max operation frequency Common for analog terminals 8 1 RJ 45 connector MODBUS RS 485 SG SGa Wire size of analog control signals 18 AWG 0 75 mm2 shielded wire 7
