The product you have just purchased has undergone numerous tests and inspections to guarantee the highest
quality. We hope it will give you entire satisfaction.
INSTALLATION OF THE PANEL HEATER
Please read the instructions before starting to install the heater. Disconnect the power before carrying out any
work on the heater. Keep these instructions even once you have installed your heater.
1) Where to install your heater?
- This equipment was designed to be installed in a residence. Please ask your distributor before using it for
any other purpose.
- The panel heater should be installed according to normal trade practice and in compliance with legislation in
the relevant country (the IEE Wiring Regulations).
- The equipment is class 2 and is protected against splashed water IP 24. Therefore it can be installed in
volume 2, provided the panel heater’s controls cannot be reached by a person using the shower or bath.
- Comply with the minimum clearance distances for positioning of the panel heater.
- If your wall covering is laid on foam, a spacer the same thickness as the foam must be placed under the panel
heater’s support. This ensures there is free space behind the panel heater to make sure its control settings are
not adversely affected.
- Do not install the panel heater:
➫ In a draught likely to affect the control settings (under a fan, etc.).
➫ Under a fixed mains power socket.
Except in the UK. Please refer to the IEE Regulations 601-06-01 and 601-08-01 (BS7671).

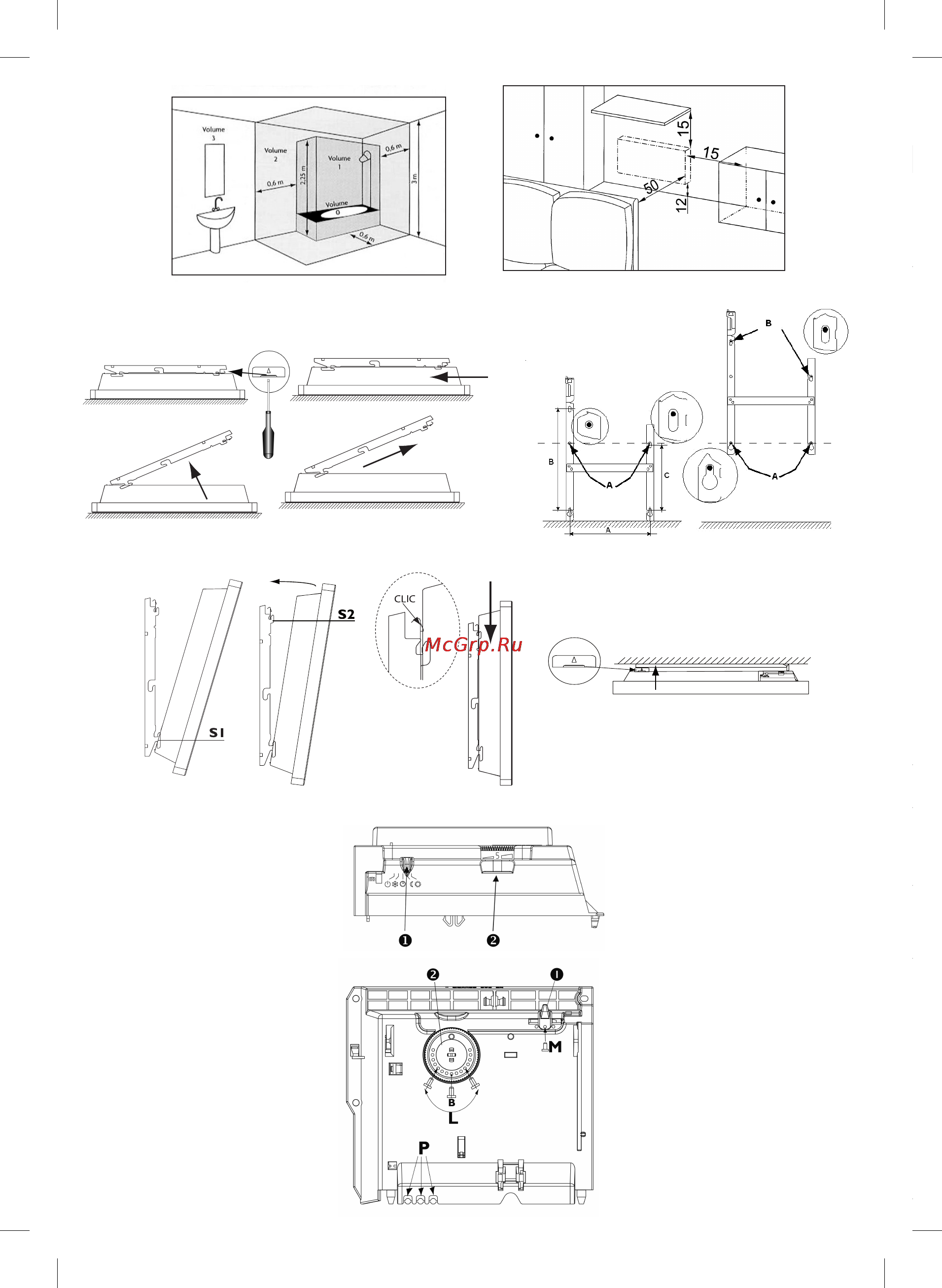

2) How to install the panel heater?
2-1) Release the appliance’s hook-on bracket
We recommend that you place the panel flat, face down.
Have a straight head screwdriver to hand.
2-2) fix the hook-on bracket
Drilling points A
Drilling points B
2-3) connecting the panel heater
- The panel heater must be powered with 220-240V 50Hz
- The panel heater must be connected via a power socket connexion box
In humid areas such as bathrooms and kitchens the power socket must be installed at least 25 cm above the
floor.
- The installation must be equipped with an omni pole cutting system with a break contact distance of at least
3mm.
- Earthling is prohibited.
- The heater must be installed by a qualified electrician in accordance with the local regulations. The heater and
the pilot wire (black) must NOT be connected to earth. If the heater wire is damaged, it must be replaced by a
qualified person to avoid hazard.
2-4) lock the appliance on the hook-on bracket
431623L_dantex.indd 4 08/06/10 09:42
