Motor-driven evaporating units LER

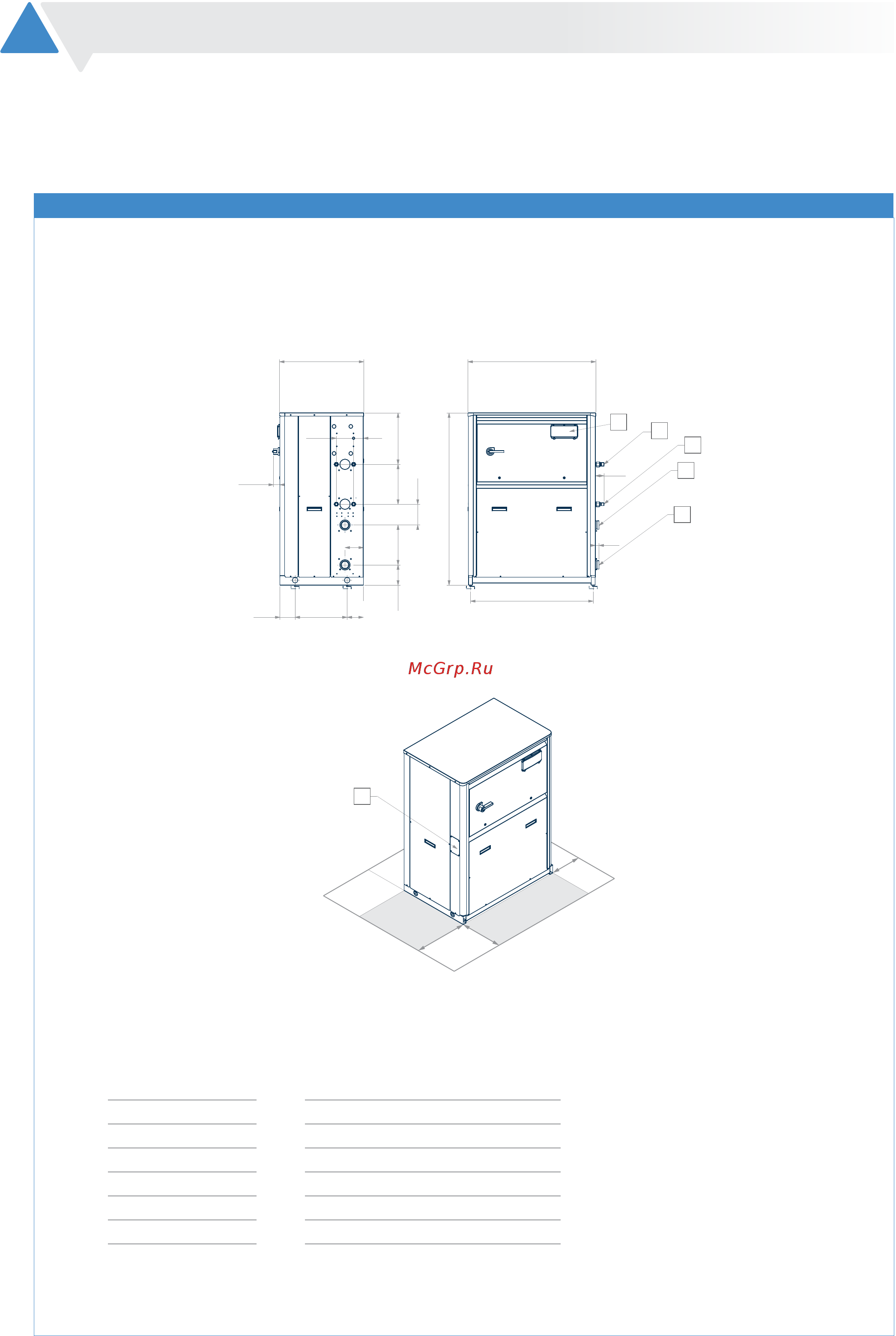

Dimensional drawings
LER 41 - 91
LEGEND
1 User interface
2 Air outlet, refrigerant side (Ø 22)
3 Liquid return (Ø 16)
4 User circuit inlet (Victaulic 2” ½ )
5 User circuit outlet (Victaulic 2” ½ )
6 Power supply input
772 1174
1
6
1 m
1 m
0,5 m
140 482 150
1136
91
1594
34
80
(60)
187 369
171
193
369 476
160
3
5
4
2
1 - INTERFACCIA UTENTE
6 - INGRESSO ALIMENTAZIONE ELETTRICA
3 - RITORNO LIQUIDO (Ø16)
5 - USCITA CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
4 - INGRESSO CIRCUITO UTILIZZAT ORE (VICTAULIC 2 1/2")
2 - MANDATA LATO REFRIGERANTE (Ø22)
772 1174
1
6
1 m
1 m
0,5 m
140 482 150
1136
91
1594
34
80
(60)
187 369
171
193
369 476
160
3
5
4
2
1 - INTERFACCIA UTENTE
6 - INGRESSO ALIMENTAZIONE ELETTRICA
3 - RITORNO LIQUIDO (Ø16)
5 - USCITA CIRCUITO UTILIZZATORE (VICTAULIC 2 1/2")
4 - INGRESSO CIRCUITO UTILIZZAT ORE (VICTAULIC 2 1/2")
2 - MANDATA LATO REFRIGERANTE (Ø22)
Model Version
LER 41 S-L
LER 51 S-L
LER 61 S-L
LER 71 S-L
LER 81 S-L
LER 91 S-L
