Total heat recovery multi-purpose heat pumps MCP

MCP 18T - 24T

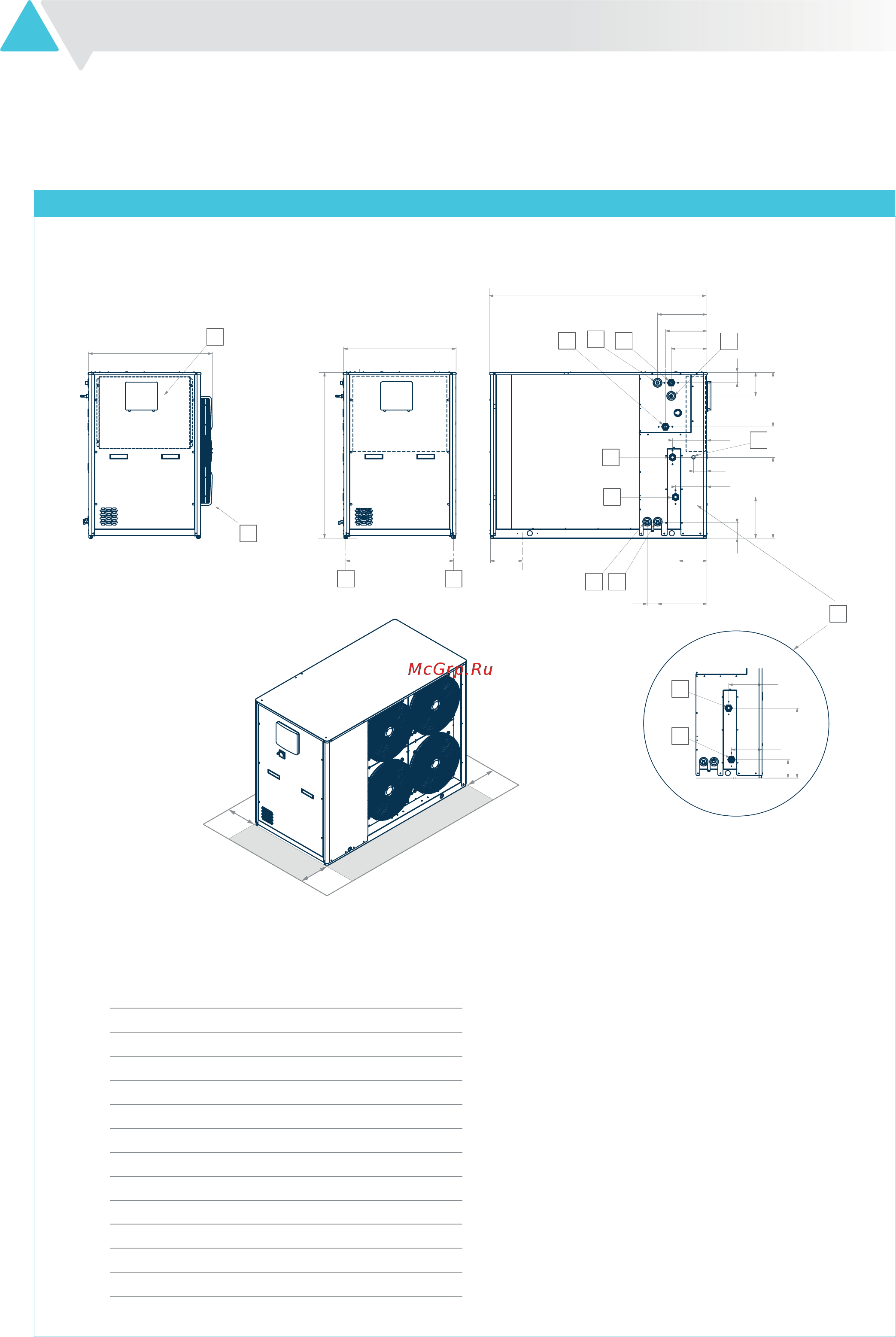

Dimensional drawings

libero da ostacoli

1 Water inlet 1" ¼ female

2 Domestic hot water inlet 1" ¼ female

3 Water outlet 1" ¼ female

4 Domestic hot water outlet 1" ¼ female

5 Safety valve discharge outlet provided with rubber ring holder

6 Water supply ½" male (optional tap)

7 Water drainage ½" female

8 Domestic hot water drainage ½" female

9 Power supply, Ø 28 mm

10 Electric control board

11 Fastening points for vibration dampers

A Version with EC pump

B EC fan view
