Total heat recovery multi-purpose heat pumps - MCP
MCP 7 - 41 kW
MCP 32 - 40 - 30T

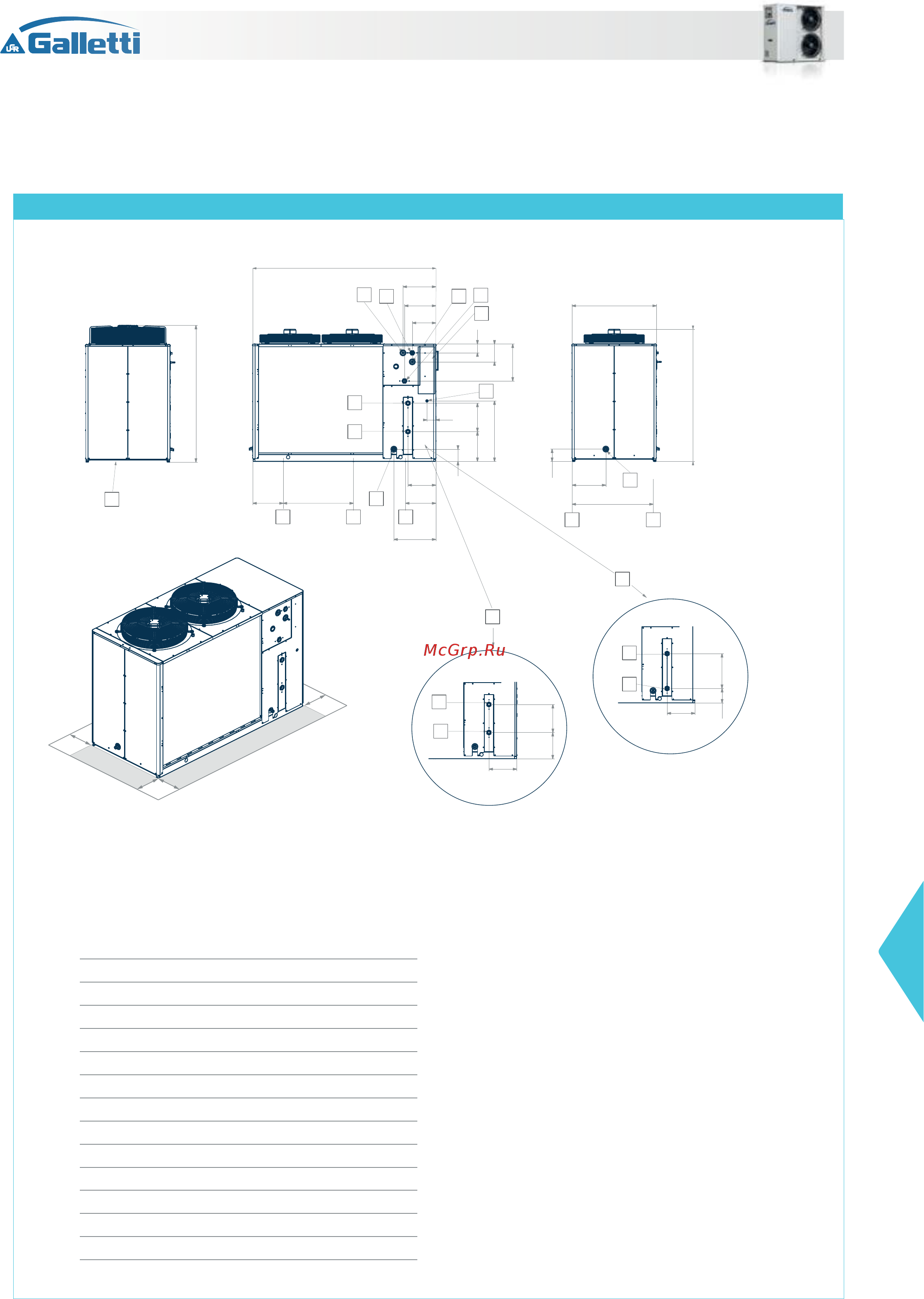

Dimensional drawings
951
914
342 791
11
473
342
314
370
265
5
1
6
9
2
99
201
416
100
320
682
336
139
140
380
7
1489
1541
353
4
3
10
2065
392
314
314
296 316
3
4
3
4
163
11 11
11
C
8
11
1,5 m
1,5 m
1 m
A
B
LEGEND
1 Water inlet 1" ¼ female
2 Domestic hot water inlet 1" ¼ female
3 Water outlet 1" ¼ female
4 Domestic hot water outlet 1" ¼ female
5 Safety valve discharge outlet provided with rubber ring holder
6 Water supply ½" male (optional tap)
7 Water drainage ½" female
8 Domestic hot water drainage ½" female
9 Power supply, Ø 28 mm
10 Electric control board
11 Fastening points for vibration dampers
A Version with EC pump, models 32 - 40
B Version with EC pump, model T30
C EC fan view
