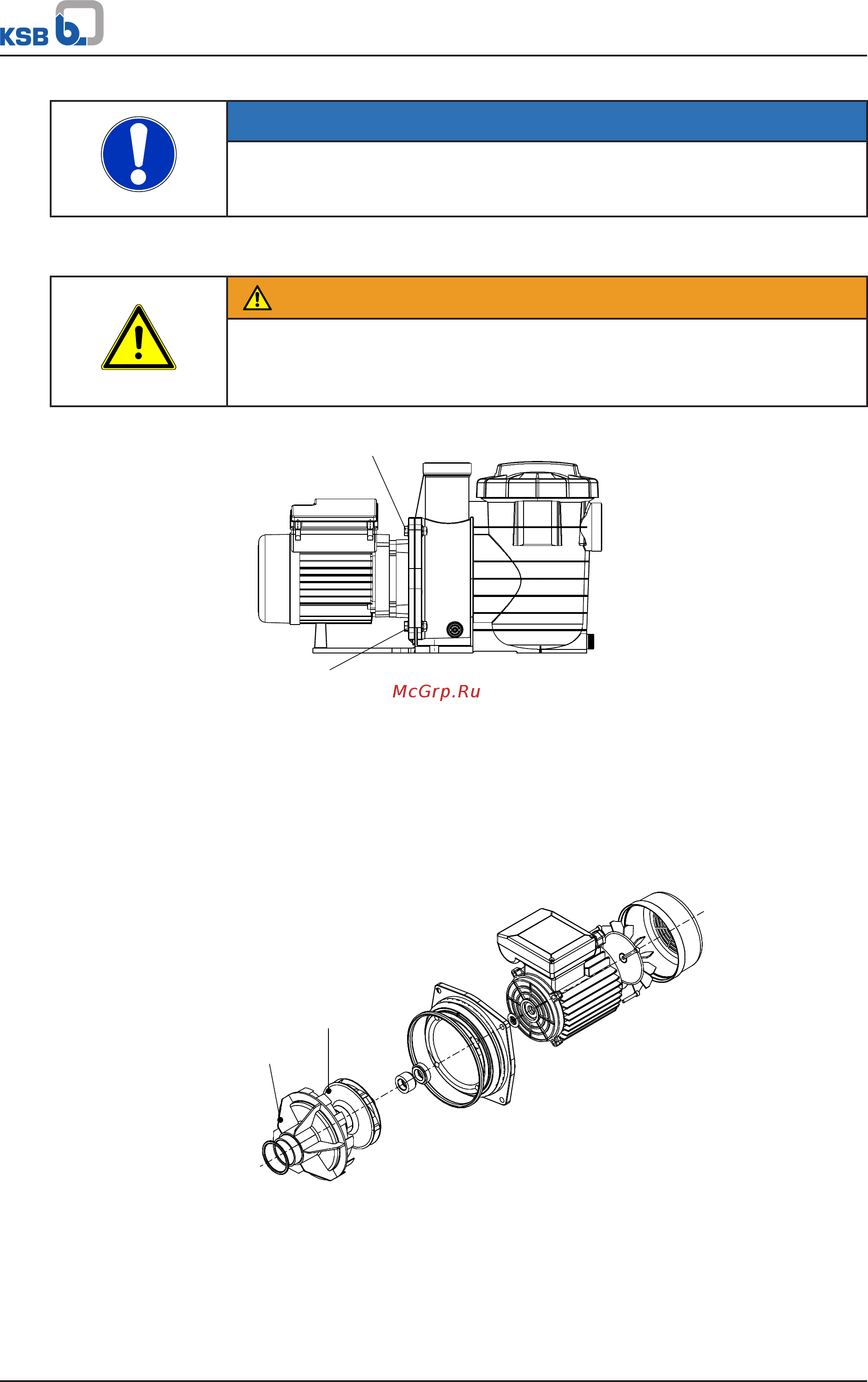

7 Servicing/Maintenance
26 of 36
Filtra N
NOTE
All maintenance work, service work and installation work can be carried out by KSB
Service or authorised workshops. For contact details please refer to the enclosed
"Addresses" booklet or visit "www.ksb.com/contact" on the Internet.
7.5.2 Dismantling the motor
WARNING
Motor tipping over
Risk of crushing hands and feet!
▷ Suspend or support the motor to prevent it from tipping over.
563
563
Fig.9: Dismantling the motor
1. Disconnect the motor from the power supply.
2. Remove pins 563.
3. Lift off the motor together with the pump's hydraulic system.
7.5.3 Dismantling the impeller
171
230
Fig.10: Dismantling the impeller
ü The motor has been removed. (ðSection7.5.2,Page26)
1. Remove diffuser 171.
2. Remove impeller 230.
