Riotec / Riotec Z

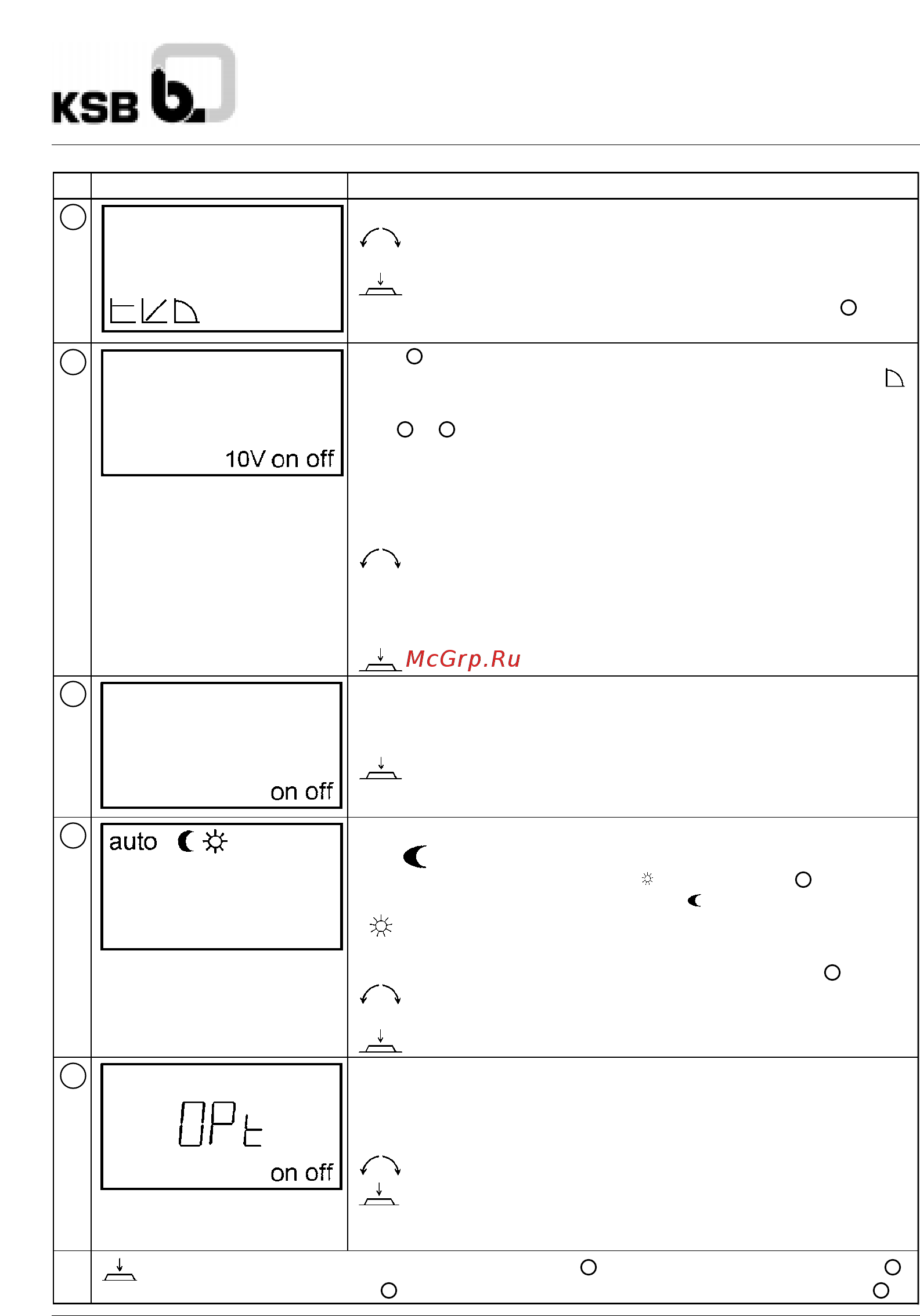

LC display Setting
3
The currently set control system blinks.
By turning the tuning button other control systems can
be selected. The newly selected control system blinks.
By pressing the button, the new control system
is stored and the unit switches over to the next menu .
4
Menu only appears if the pump performance fulfils the following con-
dition: P
1
≥ 500 W and if the selected control system is “regulator” .
If ∆p-c and ∆p-v are the selected control systems, the menu jumps
from to
For regulator mode with the signal 0 … 10 V the following points apply:
“10 V on off” activate or deactivate external regulator mode
appears in the display.
Current setting blinks.
The other setting blinks.
ON: activates external regulator mode,
OFF: deaktivates the external regulator mode, the speed can be
set on the pump with the help of the tuning button.
Setting stored.
5
The following applies for all other modes:
“on off” appears in the display
Switch pump on or off using the turning knob.
Setting stored.
6
One of the following blinks
auto :
➝
Night-time mode possible.
In this case, “auto ” appears in menu during auto.
standard mode or “auto ” during Night-time mode.
:
➝
normal regulator mode,
Night-time mode blocked.
In this case, no symbol appears in menu .
➝
Select one of the two settings
and store.
➝
Display moves on to the next menu.
7
OPt
➝
Optimisation, at zero amount and maximum speed the pump’s
ability to log data is optimised. Occurs once on starting up. For this, the
blocking device on the pressure side must be closed so that the flow
Q = 0, off blinks,
turn to on.
This starts the optimisation process. When off blinks again
the optimisation process has been completed. During optimisa-
tion, the unit cannot be operated.
In single pump mode the display returns to basic setting . In the event of a fault the error menu
appears before basic setting . In double pump mode the display moves forward to menu .
4
4
3 5
2
2
2
2
10
8
