30
English
User Controls
Please refer to the
“Troubleshooting”
section on pages
53-55 for more
details.
Help menu button functions only when no input source
is detected.

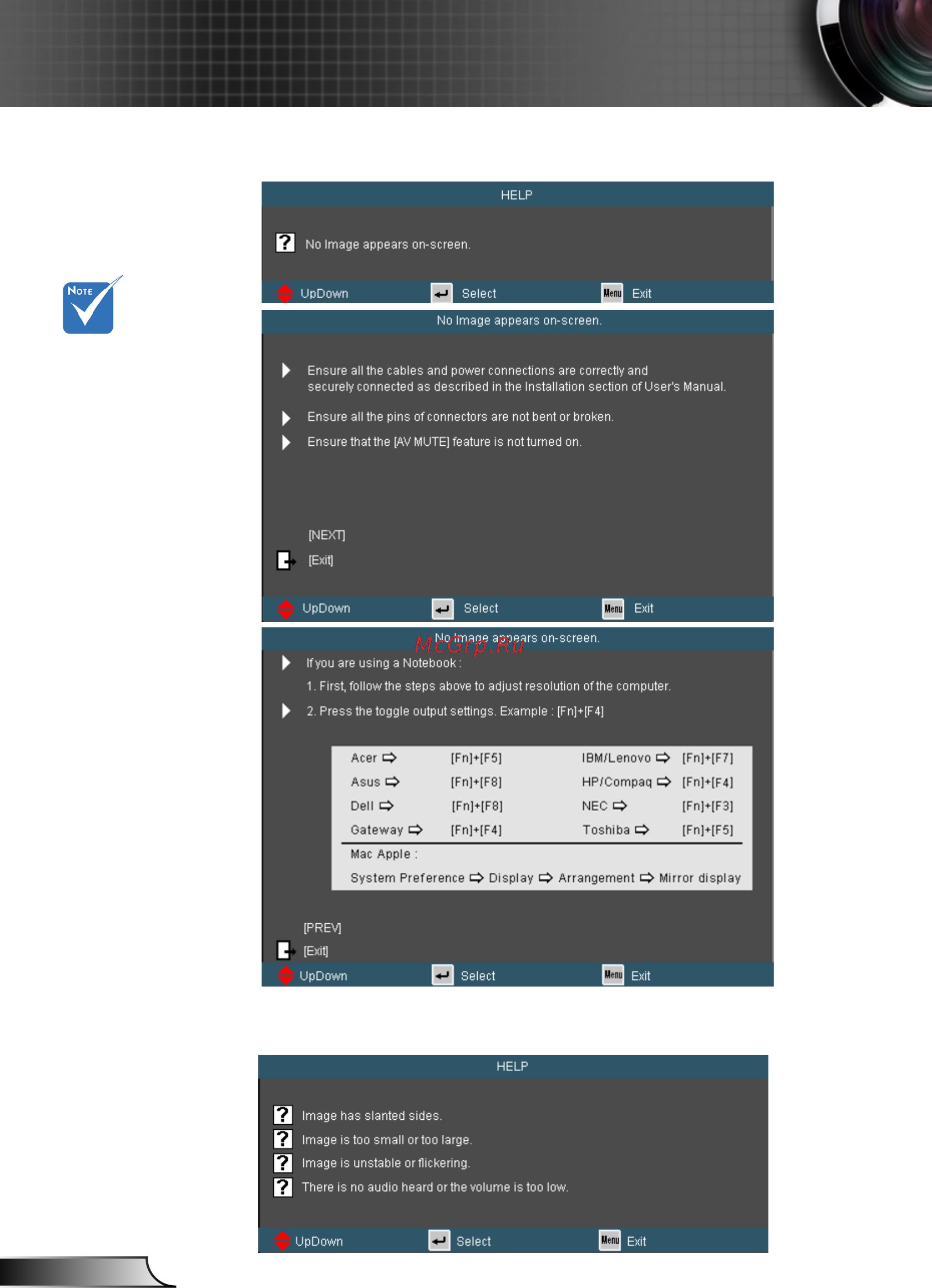

If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
