Analog speed input with 1 preset speed
and motor thermistor trip
Local or remote analog speeds
(2 analog inputs)
Push button fwd/rev/stop with fast stop
using 2
nd
deceleration ramp
8.2. Keypad mode (P-12 = 1 or 2)
P-15 Digital input 1 (T2) Digital input 2 (T3) Digital input 3 (T4) Analog input (T6) Comments
0, 1,
5,
8..12
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP
push-button
Closed : remote DOWN
push-button
Open : Forward
+24V : Reverse
2
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP
push-button
Closed : remote DOWN
push-button
Open : Keypad speed ref
+24V : Preset speed 1
Connect external
thermistor type PT100 or
similar to digital input 3
3
1)
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP
push-button
External trip input :
Open: Trip, Closed: Run
Closed : remote DOWN
push-button
4
Open: Stop (disable)
Closed: Run (enable)
Closed : remote UP
push-button
Open : Keypad speed ref
Closed : Analog input 1
Analog input 1
Connect external
thermistor type PT100 or
similar to digital input 3
6
1)
Open: Stop (disable)
Closed: Run (enable)
Open : Forward run
Closed : Reverse run
External trip input :
Open: Trip, Closed: Run
Open : Keypad speed ref
+24V : Preset speed 1
Closing digital inputs 1 and
2 together carries out a
fast stop (P-24)
7
Open: Forward Stop
Closed: Forward Run
Open: Reverse Stop
Closed: Reverse Run
External trip input :
Open: Trip, Closed: Run
Open : Keypad speed ref
+24V : Preset speed 1

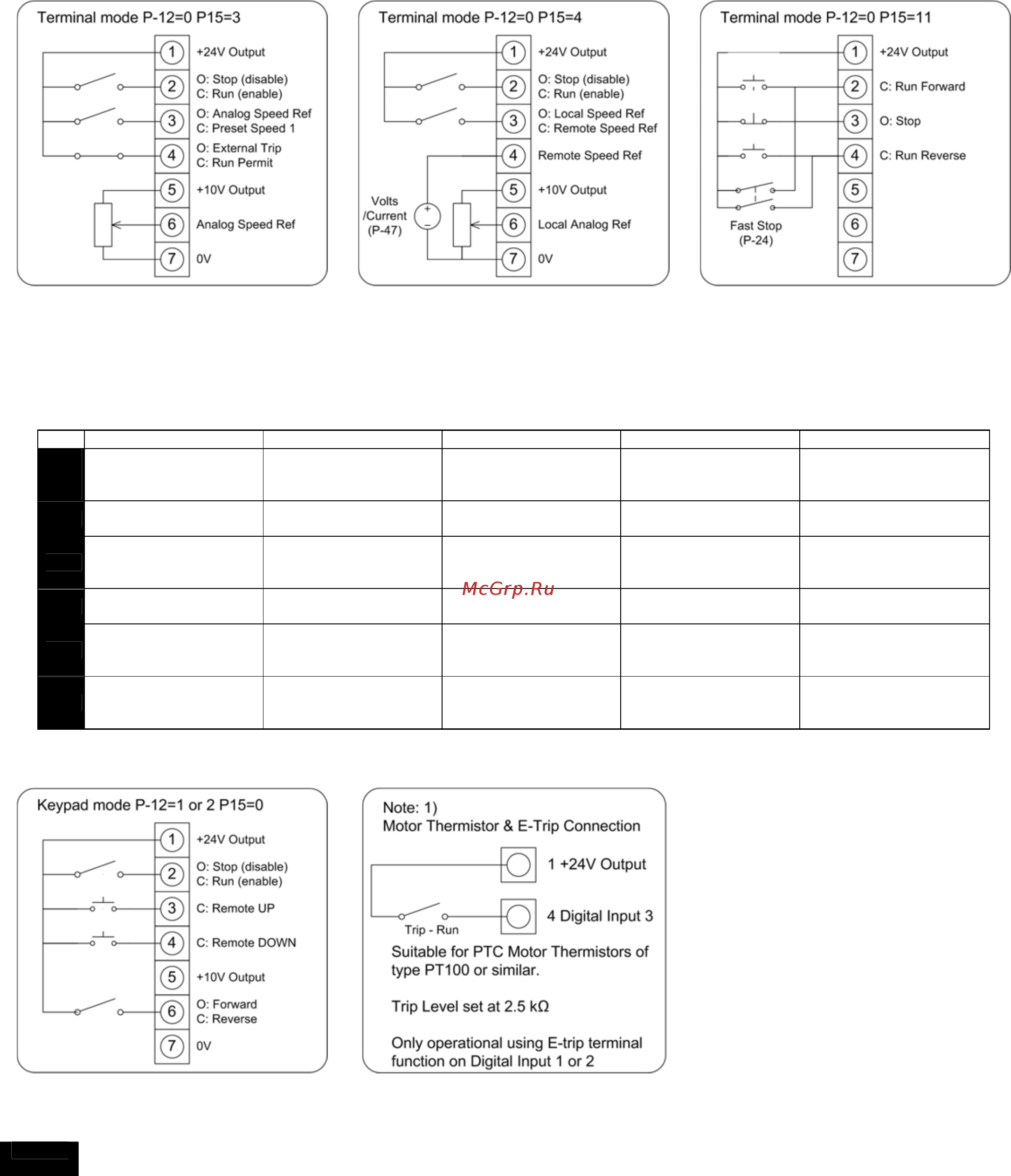

Example Wiring
Remote push button speed control with
fwd/rev
NOTE By default if the enable signal is present the drive will not Enable until the START button is pressed. To automatically enable the drive
when the enable signal is present set P-31 = 2 or 3. This then disables the use of the START & STOP buttons
20 Optidrive E2 IP55/NEMA 12 User Guide
