KSB Movitec LHS060/05 [55/60] Movitec 90b

Movitec 90B

914.01

862

580

500

904

914.03

471

412.06

525.07

433

412.06

160

932

525.05

525.03

230.01

108.01

230.02

412.03

525.02

108.02

525.01

230.01

525.02

108.01

529

525.03

230.01

412.01

503

525.04

930

920.02

903.01

412.07

920.03

554.01

341.02

10-6

905

210

901.04

554.04

801

722

890

341.01

914.05

681

914.02

101

903.02

412.04

890

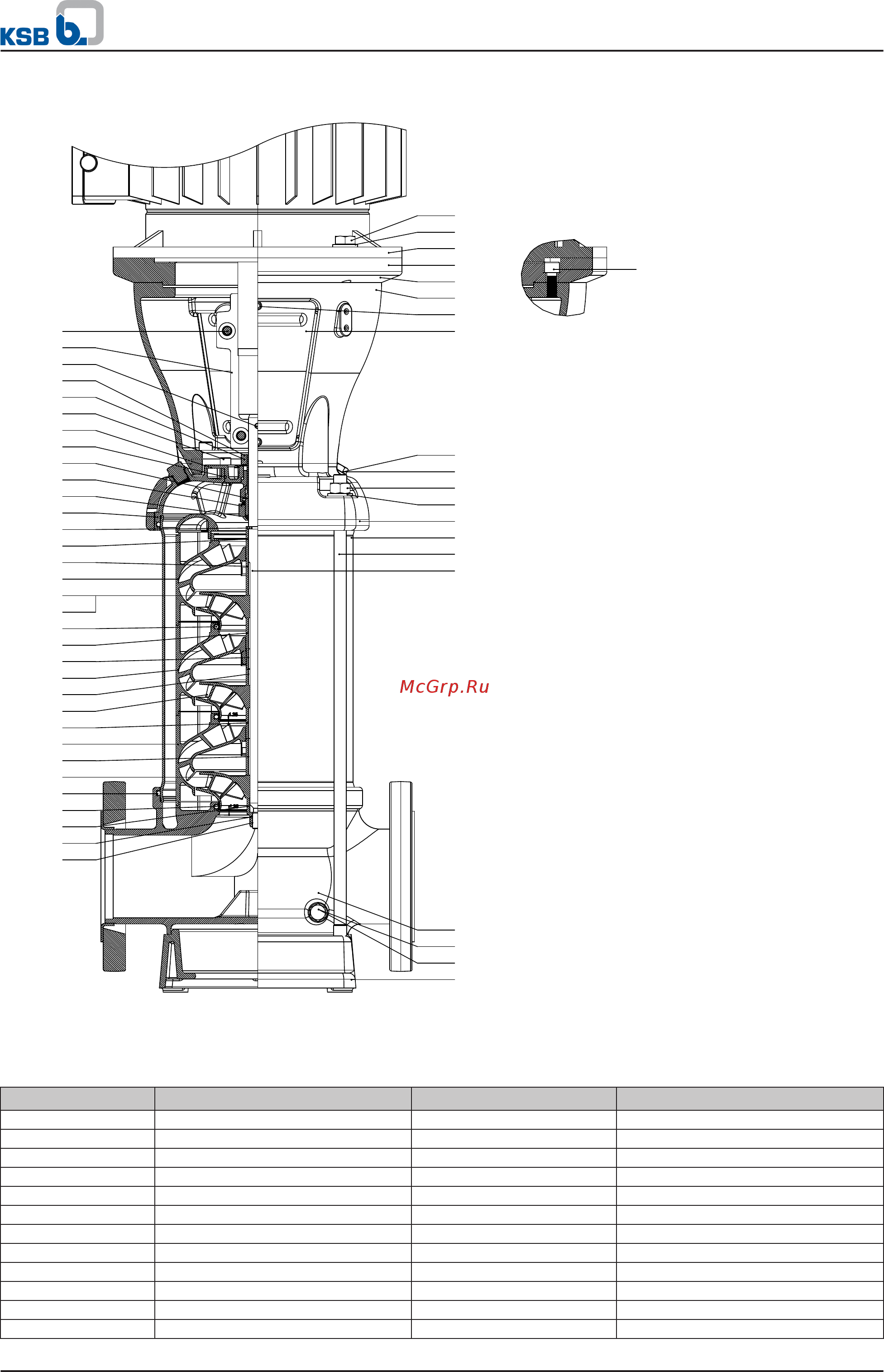

General assembly drawing of Movitec 90B

List of components

Part No. Description Part No. Description

108 Stage casing 580 Cap

160 Cover 681 Coupling guard

230 Impeller 722 Double-flanged taper

341 Drive lantern 801 Flanged motor

412 O-ring 862 Coupling

433 Mechanical seal 890 Baseplate

471 Seal cover 901 Hexagon head bolt

500 Ring 904 Grub screw

503 Impeller wear ring 914 Hexagon socket head cap screw

525 Spacer sleeve 920 Nut

529 Bearing sleeve 930 Safety device

554 Washer 932 Circlip

High-pressure Pumps

High-pressure In-line Pumps

Movitec
