Mains connection and line-side power components
2.9 Line connection variants
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
61
2.9.4 Operation of the Line Connection Components via an Isolating Transformer
The isolating transformer converts the type of the line supply type in the plant (e.g. IT/TT line
supply) to a TN line supply. Additional voltage adaptation to the permissible voltage
tolerance range is possible.
An isolating transformer must be used in the following cases:
● The insulation of the Power Module and/or the motor is not adequate for the voltages that
occur.
● There is no compatibility to an existing residual-current protective device.
● The installation altitude is greater than 2000 m above sea level.
● For all other systems that are not TN line supply systems with grounded neutral
conductor, a line filter should always be used.
CAUTION
If the line supply voltage is greater than 3-ph. 480 V AC +10% or 1-ph. 240 V AC +10%, it
is not permissible that an autotransformer is used.
In order to ensure protective separation, an isolating transformer must always be used.
,VRODWLQJWUDQVIRUPHU
)XVHV
RSWLRQDO
/LQHUHDFWRU
/LQHFRQWDFWRU
)XVHV
/LQHILOWHU
LQWH[W
RSWLRQDO
$GGLWLRQDO
ORDGV
1/
1
///
:98 :98
3RZHU
0RGXOH
3RZHU
0RGXOH
1
1
/
3(
/
/

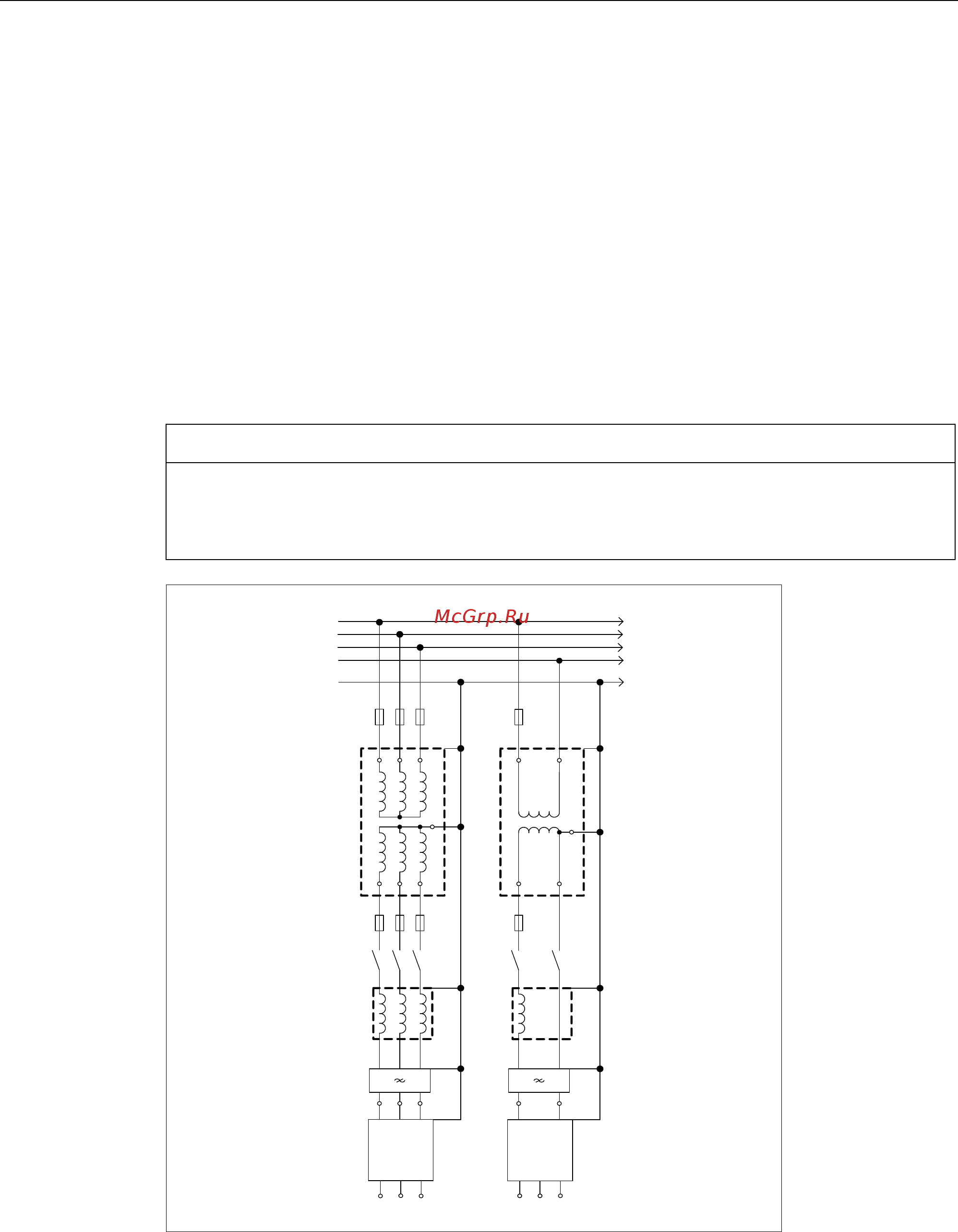

Figure 2-20 Isolating transformer
