Supplementary system components and encoder system integration
7.4 Sensor Module Cabinet-Mounted SMC30
Manual
214 Manual, 01/2011, 6SL3097-4AC10-0BP2

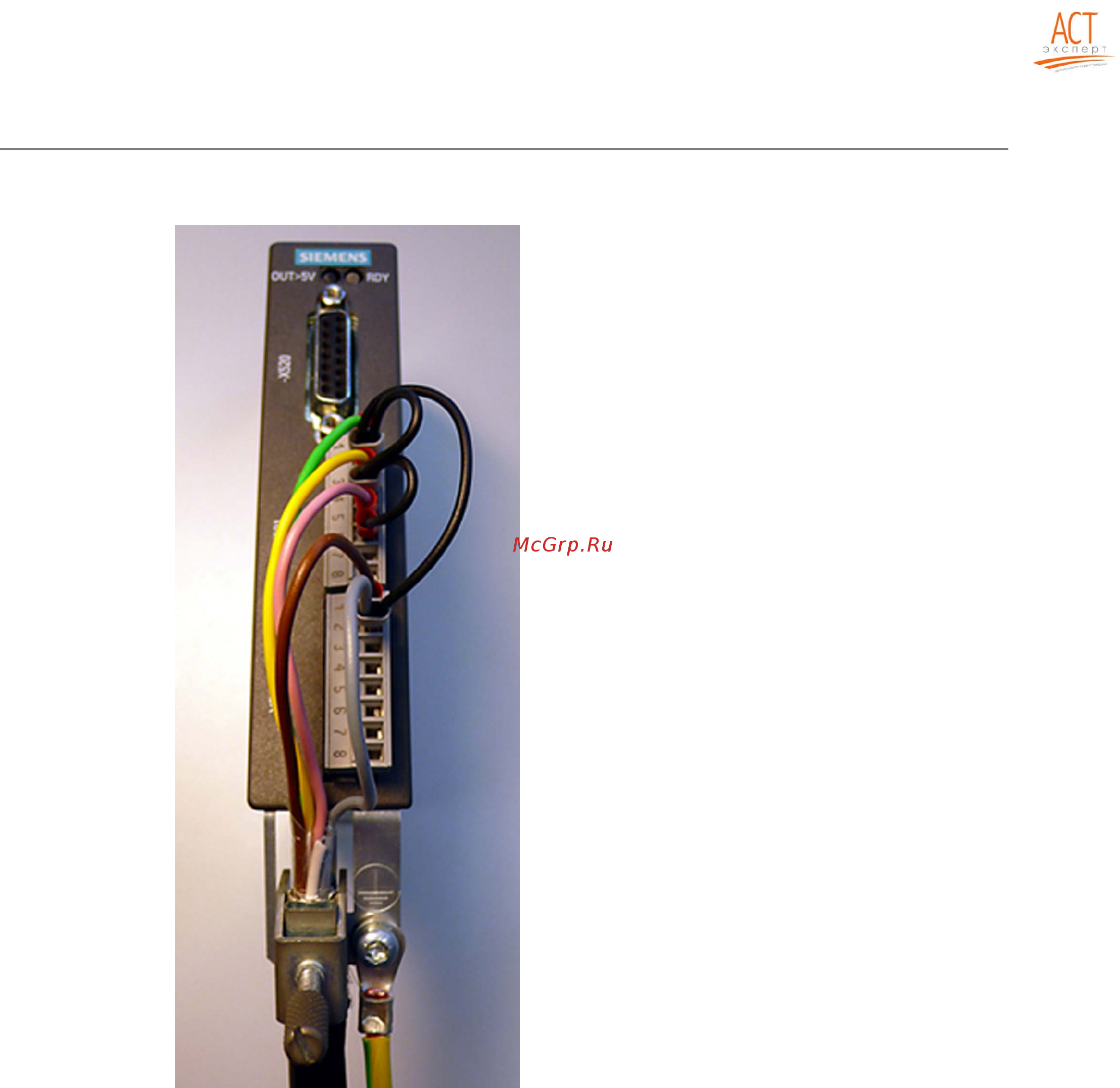

Figure 7-13 Photo of connection example 2: SMC30, 30 mm wide
Note: Diagram of the wire jumpers to connect unipolar HTL encoders with reference signal
