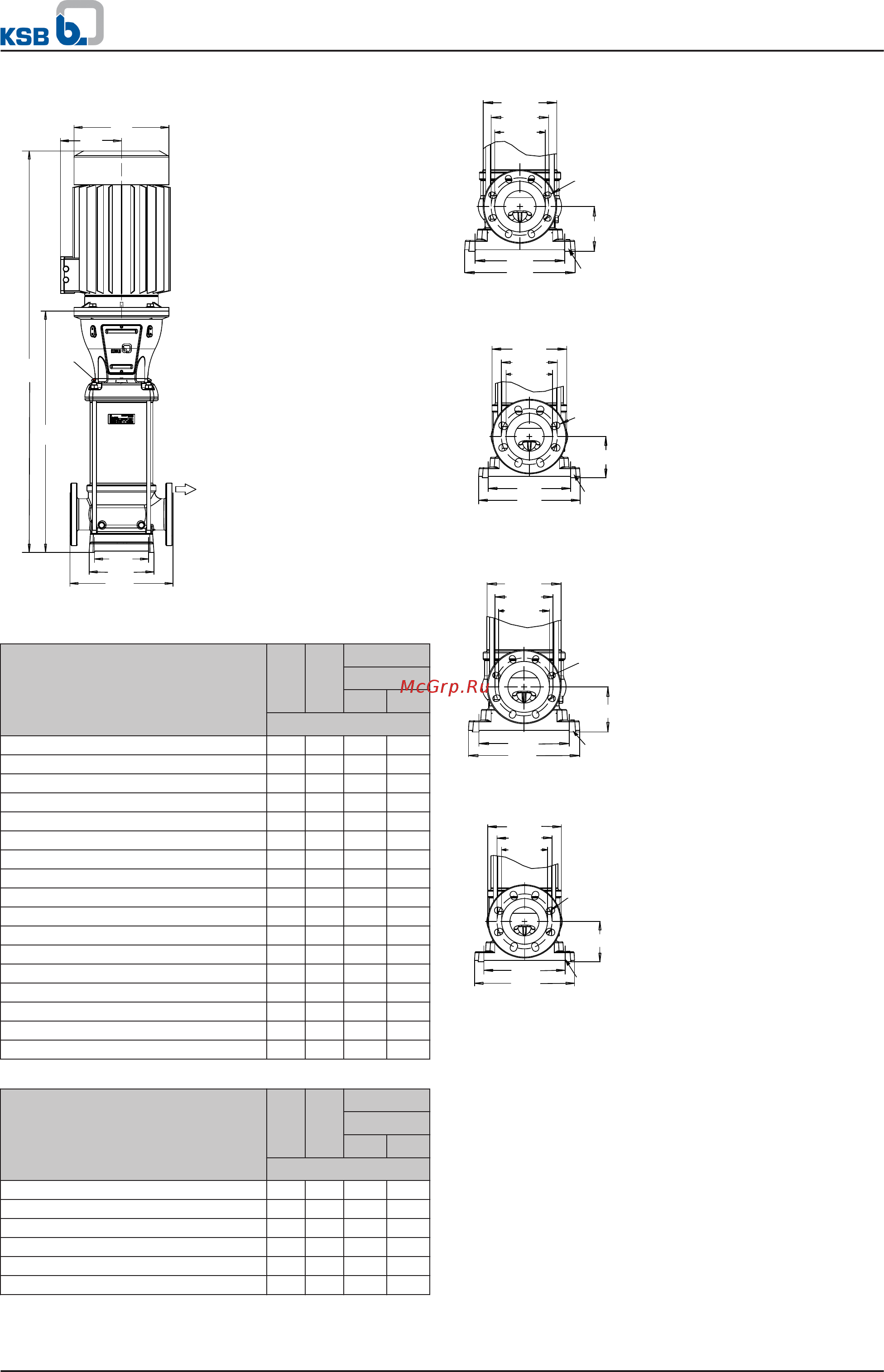

Movitec, 90B, n = 1450, 2900 rpm
F1
F2
E1
E2
DN 100
DN 100
199
239
380
G 3/8
Movitec VF/VSF; VCF
Dimensions 2900 rpm
Number of stages - blind stages E1 E2 Movitec
VF/VSF; VCF
F1 F2
[mm]
1-1 233 162 970 641
1 266 179 1062 641
2-2 315 206 1282 780
2-1 315 206 1282 780
2 315 206 1282 780
3-2 315 206 1435 889
3-1 350 225 1484 889
3 350 225 1484 889
4-2 450 355 1713 998
4-1 350 355 1713 998
4 350 355 1713 998
5-2 350 355 1822 1107
5-1 350 355 1822 1107
5 350 355 1822 1107
6-2 466 373 1953 1216
6-1 466 373 1953 1216
6 466 373 1953 1216
Dimensions 1450 rpm
Number of stages - blind stages
E1 E2 Movitec
VF/VSF; VCF
F1 F2
[mm]
5-2 266 179 1460 1077
5-1 266 179 1460 1077
5 266 179 1460 1077
6-2 266 179 1569 1186
6-1 266 179 1569 1186
6 266 179 1569 1186
Ø230
8 × Ø19
Ø180
Ø158
280
346
140
4 × Ø14
Movitec VF/VSF, PN 16
Ø254
8 × Ø22
Ø190
Ø158
280
346
140
4 × Ø14
Movitec VF/VSF, PN 25/40
Ø230
Ø180
Ø158
8 × Ø19
140
280
345
4 × Ø14
Movitec VCF, PN 16
Ø254
8 × Ø22
Ø190
Ø158
280
345
140
4×Ø14
Movitec VCF, PN 25/40
High-pressure Pumps
High-pressure In-line Pumps
Movitec
47
