High Performance Vector Control/Torque Control Inverter User Manual
Chapter 3 Wiring of Incerter 19

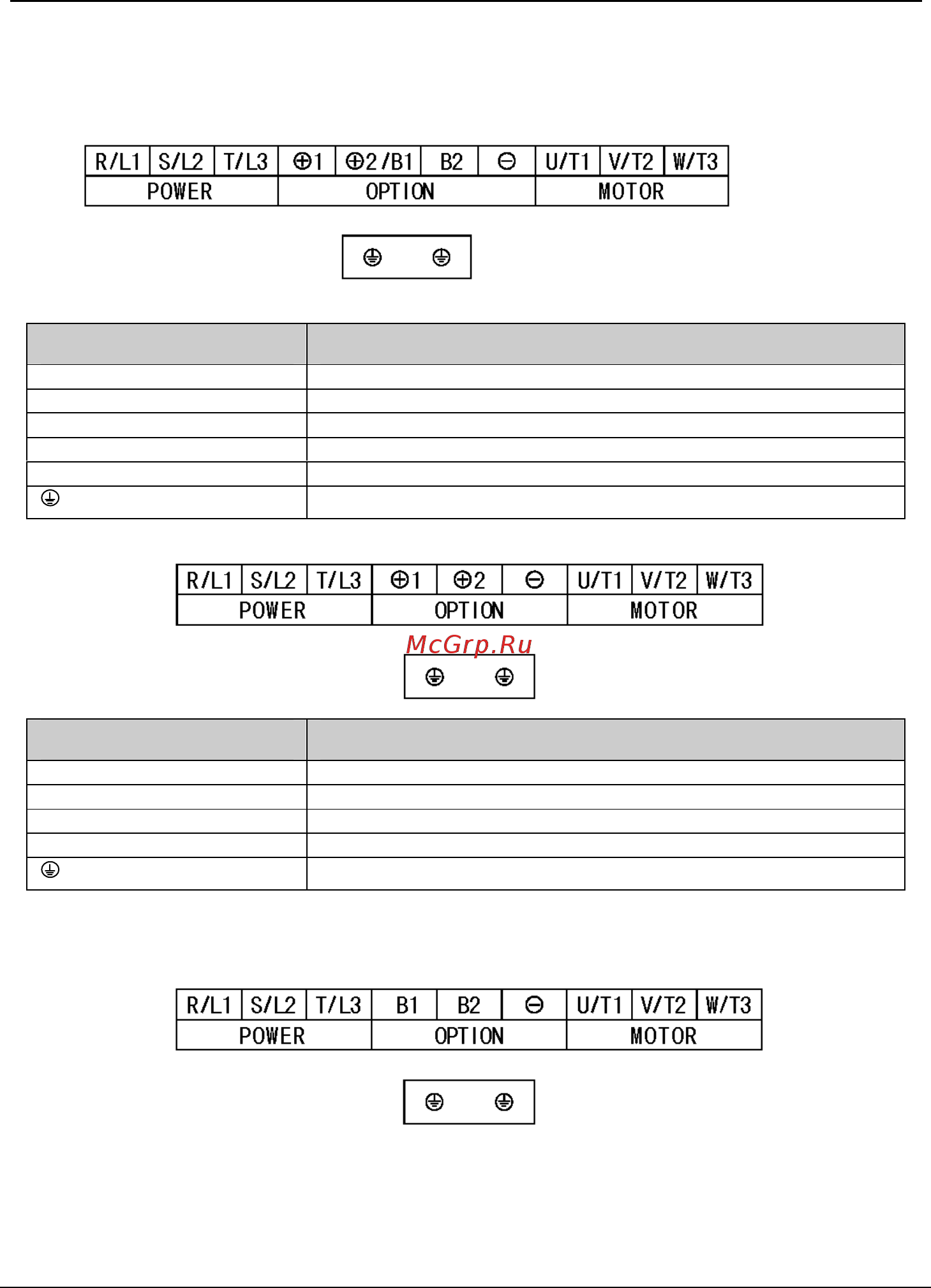

3.5 Functions of Main Circuit Terminal
3.5.1 G-20P4～G-22P2 and G-40P7/P-41P5～G-4015/P-40185
3.5.2 G-4018/P-4022～G-4075/P-4090
3.5.3 Internal Braking Unit Option for G-4018/P-4022～G-4075/P-4090
Terminal symbol Terminal name and function description
R/L1, S/L2, T/L3 Three-phase AC input terminal
⊕
1,
⊕
2/B1 DC reactor connecting terminal, short circuited with copper bus upon delivery
⊕
2/B1, B2 Connecting terminal of braking resistor
⊕
2/B1,
Ө
DC power input terminal; DC input terminal of external braking unit
U/T1, V/T2, W/T3 Three-phase AC output terminal
Grounding terminal PE
Terminal symbol Terminal name and function description
R/L1, S/L2, T/L3 Three-phase AC input terminal
⊕
1,
⊕
2 DC reactor connecting terminal, short circuited with copper bus upon delivery
⊕
2,
Ө
DC power input terminal; DC input terminal of external braking unit
U/T1, V/T2, W/T3 Three-phase AC output terminal
Grounding terminal PE
