High Performance Vector Control/Torque Control Inverter User Manual
88 Chapter 6 Parameter Description

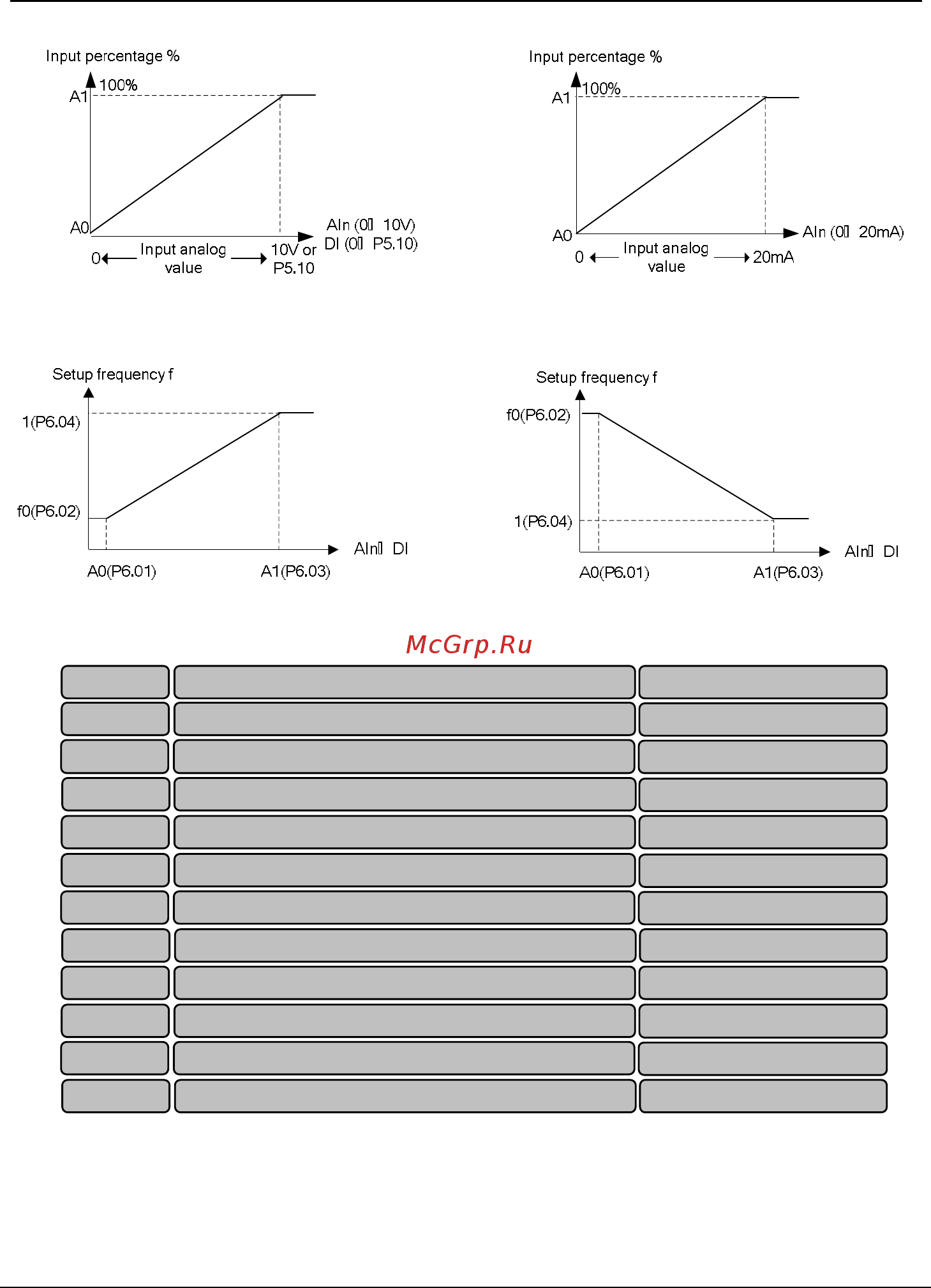

Fig.6−19 Corresponding percentage of input analog
value (voltage/frequency)
Fig.6−20 Corresponding percentage of input analog
value (current)
Fig.6−21 Setup frequency characteristics curve
(positive effect)
Fig.6−22 Setup frequency characteristics curve
(negative effect)
Curve 3 and curve 4 are basically the same, but that curve 4 has two more setting points than curve 3. The
input analog characteristics curve as shown in Fig.6-23. Curve 4 is described as an example here.
Curves 3 and 4 convert the externally input analog into the equipment analog. All the AI and DI inputs will be
reduced according to the relationship according to 10V correspondence to100% per unit value. The
function of per-unit value is determined by the analog channel function selection P6.21.
P6.09 Curve 3 input point A0
0.0~110.0%(0.0%)
P6.13 Curve 4 input point A0
0.0~110.0%(0.0%)
P6.14 Per-unit value B0 corresponding to curve 4 input point A0
0.0~110.0%(0.0%)
P6.15 Curve 4 input point A1
0.0~110.0%(25.0%)
P6.16 Per-unit value B1 corresponding to curve 4 input point A1
0.0~110.0%(25.0%)
P6.17 Curve 4 input point A2
0.0~110.0%(50.0%)
P6.18 Per-unit value B2 corresponding to curve 4 input point A2
0.0~110.0%(50.0%)
P6.19
Curve 4 input point A3
0.0~110.0%(100.0%)
P6.20 Per-unit l value B3 corresponding to curve 4 input point A3 0.0~110.0%(100.0%)
P6.10 Per-unit value B0 corresponding to curve 3 input point A0
0.0~110.0%(0.0%)
P6.11 Curve 3 input point A1 0.0~110.0%(100.0%)
P6.12 Per-unit value B1 corresponding to curve 3 input point A1
0.0~110.0%(100.0%)
