Warnings:
-
Do not use reducers, adapters or switches for connection to the mains, since these
could overheat and cause burns.
-
Earth connection is required by law. The manufacturer declines all liability
resulting from failure to observe this regulation.
If the power cable must be replaced, use a cable having identical characteristics to the original
supplied by the manufacturer, suitable for the load and temperature (type T90°C). This is available
from After-sales service. Furthermore, the end of the power cable to be connected to the appliance
must have the Yellow-Green earth conductor 20 mm longer than the other conductors.
The cable must support the load of the appliance.
Refer to the table below for the size of the power cable
Only with gas burners
With electric plate(s) <= 1000W
With electric plate(s) >1000W <2000W
With electric plate(s) >=2000W
Should it be necessary to replace the supply cord,
connect the wire in accordance with the following colours/codes:
BLUE
NEUTRAL (N)
BROWN
LIVE (L)
YELLOW-GREEN
EARTH (
-
)
-
Check wether there is a omnipolar switch available on the domestic line which is compliant with
current standards laws.
Otherwise, place a device easily reachable between the appliance and the electricity line.
-
If the cable result damaged, it must be quickly replaced with a new one by a qualified technician
or call the After-Sales service.
If a different type of gas from the one indicated on the rating plate is used, the injectors must be replaced.
If spare injectors are not supplied with the appliance, they are available from the After-sales service.
For the choice of replacement injectors, refer to the injectors table at the end of this booklet.
The injectors are identified by their diameter, which is expressed in hundredths of mm, stamped on
the body of the injector itself.

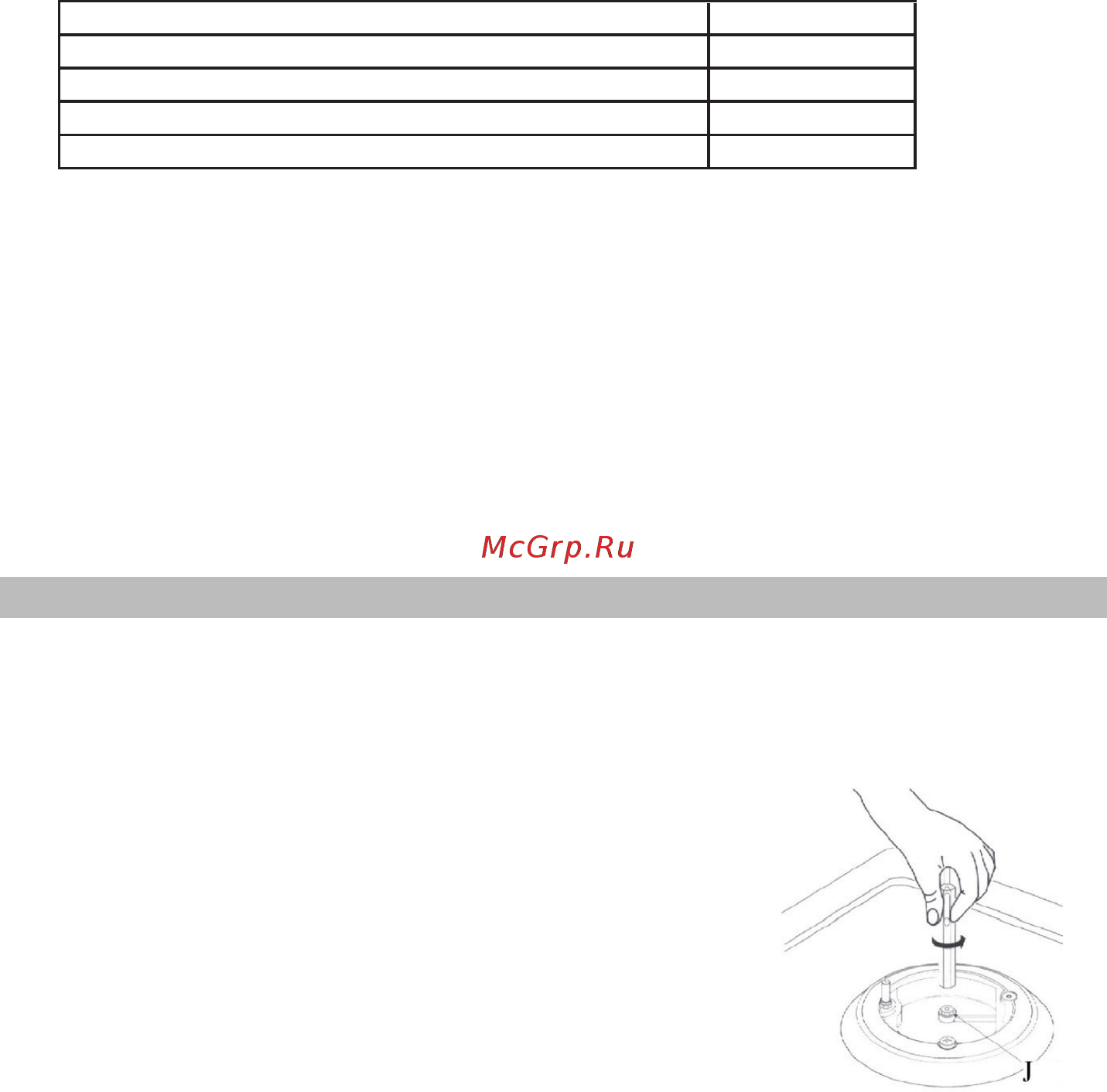

Replacing the injectors
-
Remove the grids and burner caps from the cooktop
-
Using a socket wrench, replace the injectors “J”
with the suitable ones for the gas used
-
Replace the burners
The burners do non require primary air adjustment.
Adjustment of minimum setting
After replacing the injectors, light the burner and remove the knob. Turn the tap to the minimum setting
and insert a screwdriver in the rod: tighten to reduce the flame, loosen to increase the flame. (fig.)
For gas G30/G31, tighten the adjustment screw fully
Cooktop type
Wire size
Ø0,75 mm
2
Ø1,50 mm
2
Ø2,50 mm
2
Ø2,00 mm
2
ADJUSTMENT TO DIFFERENT TYPES OF GAS
8
