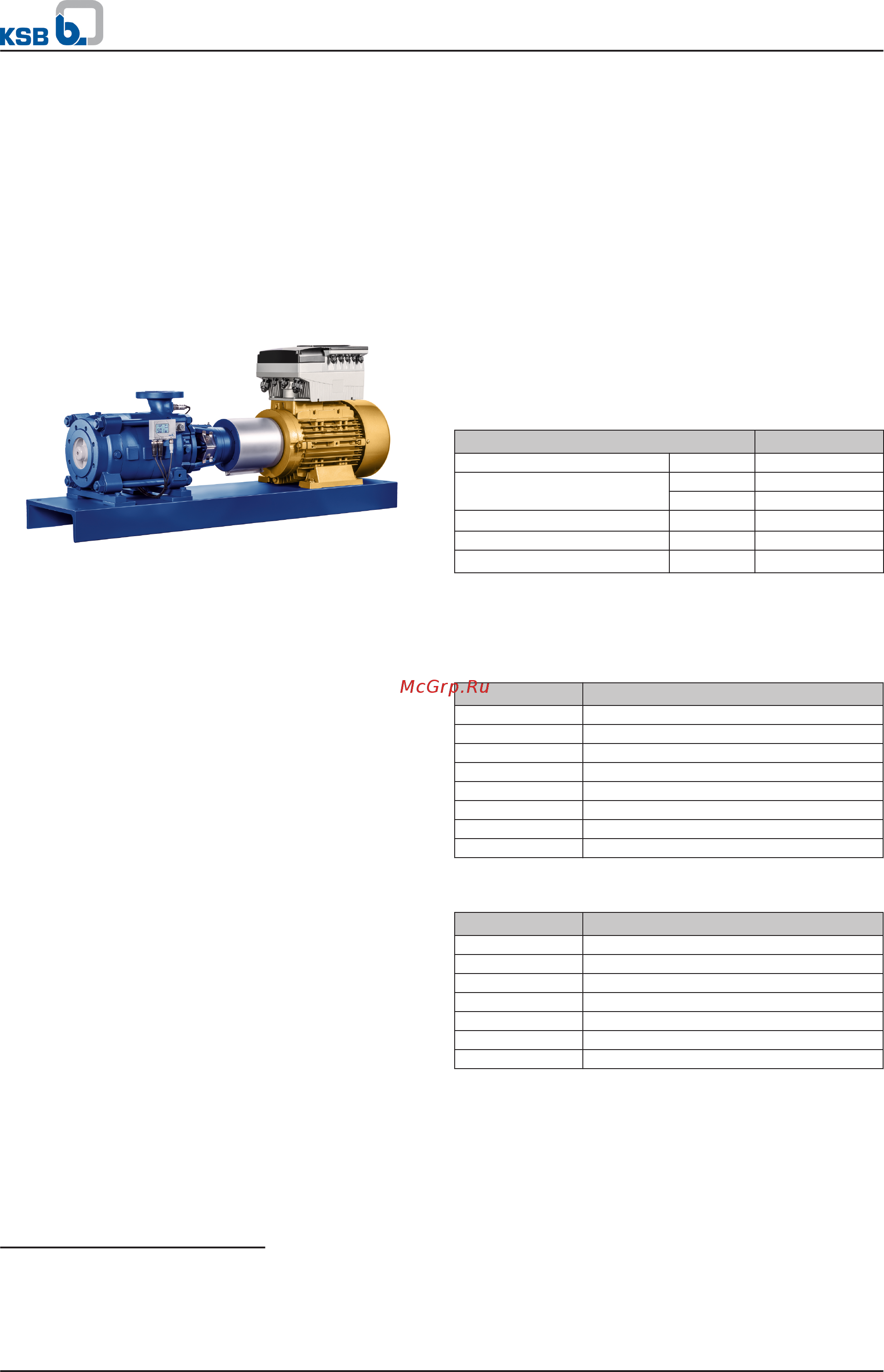

High-pressure Pumps
High-pressure Centrifugal Pump
Multitec/Multitec-RO
Main applications
▪ Water supply
▪ Drinking water supply
▪ Pressure boosting
▪ General irrigation systems
▪ Fossil-fuelled power stations
▪ Hot-water supply
▪ Condensate transport
▪ Boiler feed applications
▪ Heating systems
▪ Filtering systems
▪ Fire-fighting systems
▪ Snow-making systems
▪ Washing plants
▪ Industrial plants
▪ Desalination plants
▪ Geothermal plants
▪ Heat recovery systems
Fluids handled
▪ Water
▪ Drinking water
▪ Feed water
▪ Hot water
▪ Condensate
▪ Fire-fighting water
▪ Solvents
▪ Lubricants
▪ Fuels
▪ Cooling water
▪ Water/oil emulsions
▪ Seawater
▪ Thermal water
Operating data
Operating data
Characteristic Value
Sizes DN 32 - 200
Flow rates Q [m
3
/h] ≤ 850
Q [l/s] ≤ 236
Heads H [m]
≤ 630, (1000
1)
)
Fluid temperature T [°C] -10 to +200
Operating pressures
p
2
[bar]
2)
≤ 63, (100
1)
)
Designation
Example: Multitec
3)
A 32/8E-2.1 12.65 (SP)
Key to the designation
Code Description
Multitec Type series
A Installation type
32 Nominal discharge nozzle diameter [mm]
8E No. of stages / impeller combination
2.1 Hydraulic system
12 Material code
65 Seal code
SP Code for special variants (optional)
Example: Multitec-RO
4)
A 100/5-8.1 31.80
Key to the designation
Code Description
Multitec-RO Type series
A Installation type
100 Nominal discharge nozzle diameter [mm]
5 Number of stages
8.1 Hydraulic system
31 Casing material (duplex stainless steel)
80 Seal code
Design details
Design
▪ Multistage centrifugal pump in ring-section design
▪ Horizontal installation in long-coupled or close-coupled
design
1)
Only for individual sizes/designs
2)
The sum of inlet pressure and shut-off head must not exceed the value indicated.
3)
Code: MTC
4)
Code: MTC-RO
High-pressure Pumps
High-pressure Centrifugal Pump
4
Multitec/Multitec-RO
