KSB Multitec MTC A 50/6C [6/35] Technical description
![KSB Multitec MTC A 50/6C [6/35] Technical description](/views2/1593241/page6/bg6.png)

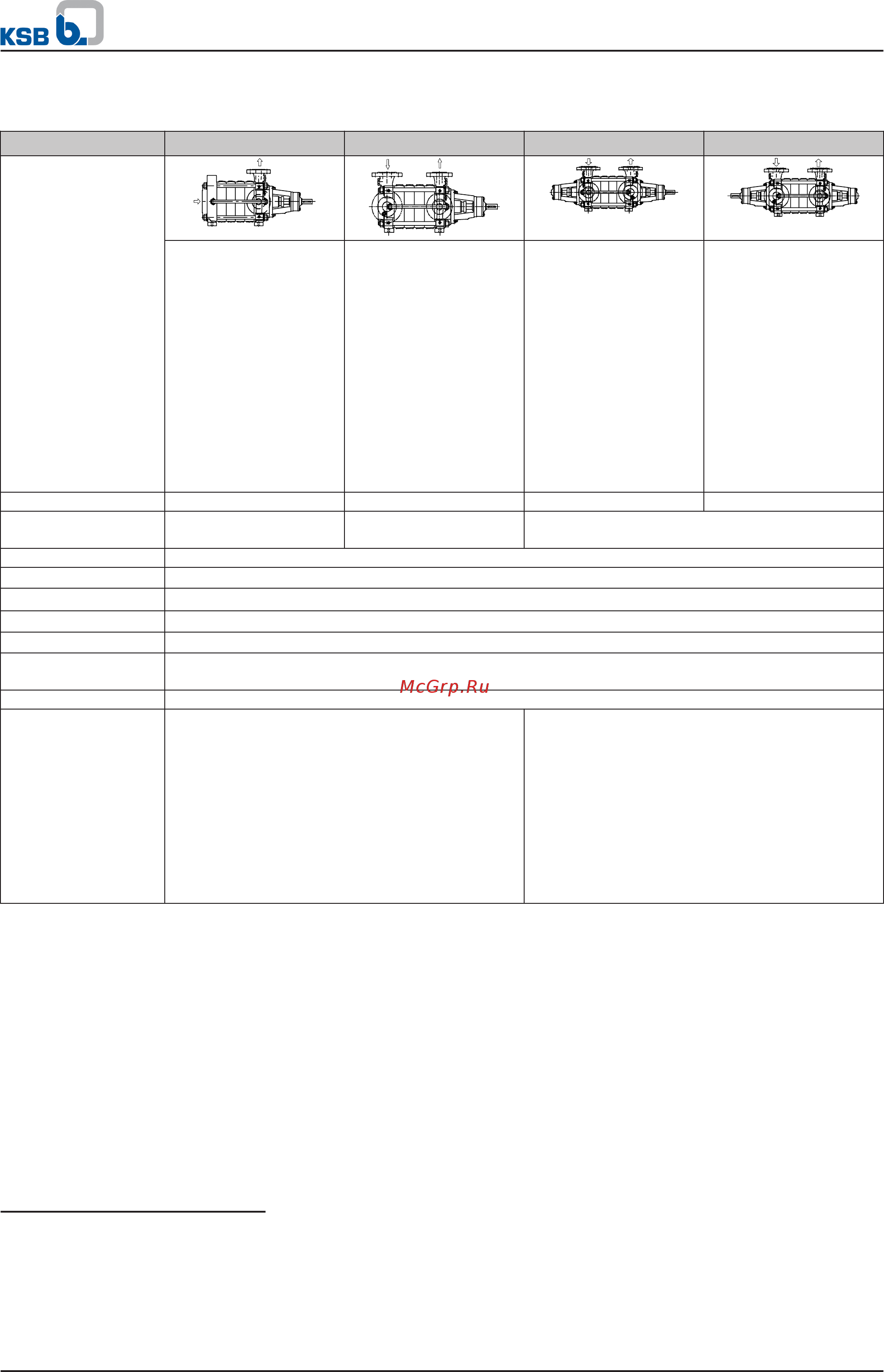

Technical description
Designs A, B, C and D
Installation type
A
5)
B
5)
C
5)
D
6)
▪ Horizontal design,
baseplate mounted
▪ Only one shaft
passage (drive end)
▪ Rolling element
bearing at the drive
end / plain bearing
on the suction side
▪ Axial suction nozzle
(block flange up to
size 50)
▪ Drive on discharge
side
▪ Horizontal design,
baseplate mounted
▪ Only one shaft
passage (drive end)
▪ Rolling element
bearing at the drive
end / plain bearing
on the suction side
▪ Radial suction nozzle
▪ Drive on discharge
side
▪ Horizontal design,
baseplate mounted
▪ With two shaft
passages
▪ Rolling element
bearings at the drive
end and on the
suction side
▪ Drive on discharge
side
▪ Horizontal design,
baseplate mounted
▪ With two shaft
passages
▪ Rolling element
bearings at the drive
end and on the
discharge side
▪ Drive on suction side
H/Q range: Complete range Complete range Complete range Complete range
Multitec-RO:
Design A only
DN 200:
For installation types C and D only
Drive Electric motor, diesel engine, turbine
Axial thrust balancing
By balance drum
7)
Q
max
8)
850 m
3
/h
H
max
630 m (1000 m
9)
)
p
2 max
63 bar (100 bar
9)
)
t
max
-10 °C to +200 °C,
Multitec-RO up to 45 °C
Shaft seal Uncooled gland packing, cooled or uncooled mechanical seal; single or double cartridge seal
Material Casing:
▪ Grey cast iron, steel, stainless steel for Multitec
▪ Duplex and super duplex stainless steel for
Multitec-RO
Hydraulic system:
▪ Grey cast iron, bronze, stainless steel for
Multitec
▪ Duplex and super duplex stainless steel for
Multitec-RO
Casing: grey cast iron, nodular cast iron
10)
, steel,
stainless steel
Hydraulic system: grey cast iron, bronze, steel,
stainless steel
5)
The direction of rotation is clockwise, seen from the motor end.
6)
The direction of rotation is counter-clockwise, seen from the motor end.
7)
For small numbers of stages without balance drum the axial thrust is completely absorbed by the thrust bearing.
8)
Note: The indicated Q values apply to 50 Hz; for 60 Hz values refer to the individual characteristic curves.
9)
Only for individual sizes/designs
10)
Only for DN 200
High-pressure Pumps
High-pressure Centrifugal Pump
6
Multitec/Multitec-RO
