SensoPilot Pro

ENGLISH10

Operation of remote display

Power supply

• In the case of battery operation, power is supplied from the SensoPilot.

• For operation from the battery of the construction machine, connect the remote

display (13) using the 12/24V battery cable, ensuring that RED is connected to the

positive battery pole (+) and BLACK to earth (engine block). The SensoPilot is then

also supplied with power via the connection cable - see illustration below.

Use of the remote display

The remote display allows laser reception of the SensoPilot to be monitored when

this cannot be seen from the cab of the construction machine. In this case, connect

the remote display (12) to the SensoPilot (4) using the connection cable and install

the remote display in the operator's cab.

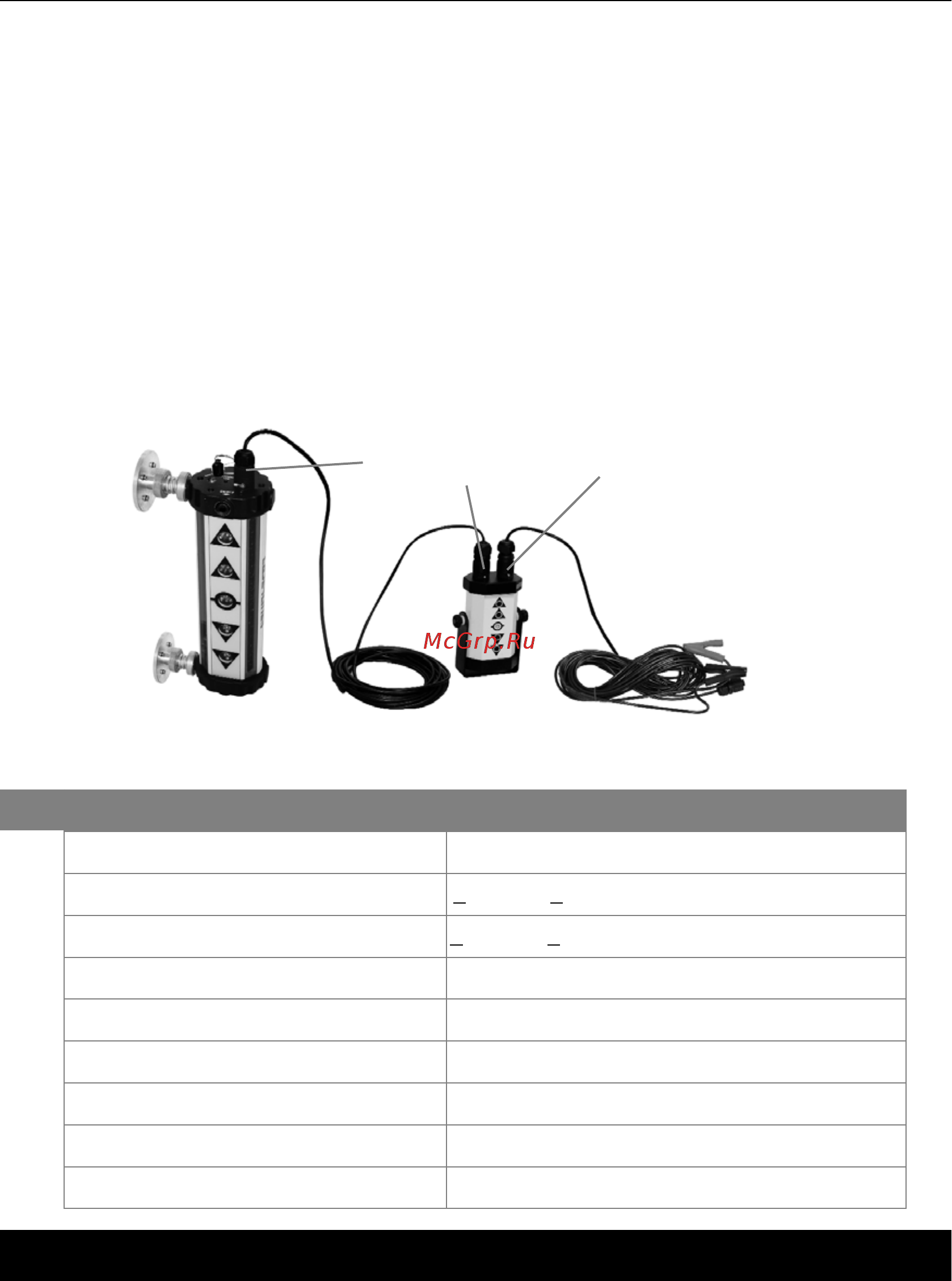

Connection cable from

SensoPilot to remote display

12/24 V battery cable

412 13

Technical data

Laser reception range 200 m

Precision HIGH

+ 2 mm – + 5 mm

Precision LOW

+ 5 mm – + 15 mm

Battery / laser

7,2 V NiMh / 2500 mA

Battery operating time / Charging time

approx. 40 hours / approx. 15 hours

Working temperature

-20°C – +50°C

Dimensions

390 x 170 x 85 mm

Weight of SensoPilot / remote display

3,4 kg / 1,1 kg

Subject to change

01.2005
