Kohler KT715 [7/96] Speciﬁ cations

Speciﬁ cations

32 690 03 Rev. I KohlerEngines.com

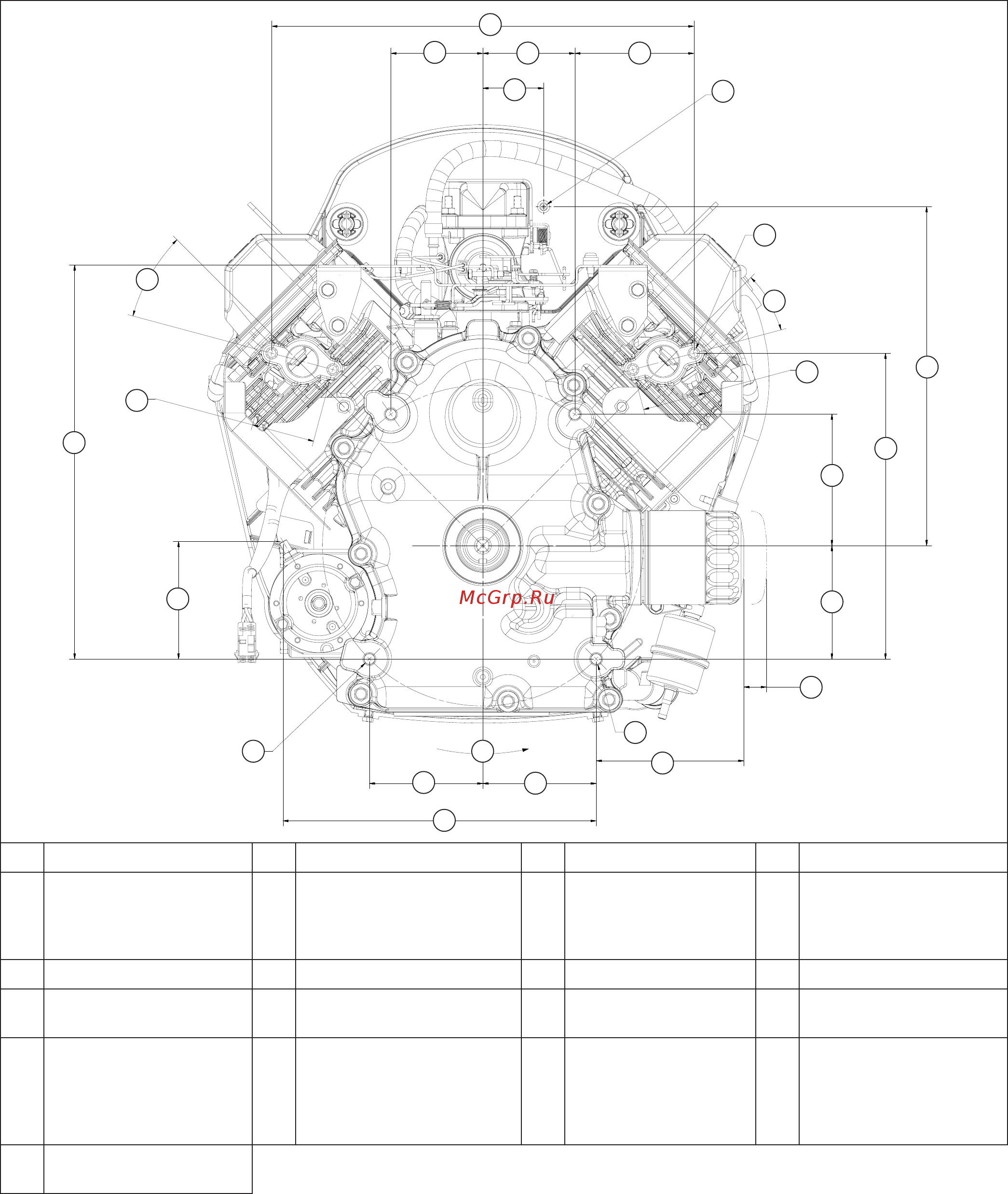

Engine Dimensions with Low Proﬁ le or High Performance Air Cleaner-Engine Mounting Surface (PTO End)

B C

A 334.3 mm (13.16 in.) B 72.8 mm (2.87 in.) C 94.3 mm (3.71 in.) D 48.1 mm (1.89 in.)

Evap Connection

Point

4 X 5/16-18

UNC-2B in.

16.5 mm (0.649 in.)

Deep No Studs

G 30° H

50.0 mm (1.97 in.)

Exhaust Port #2

I 268.3 mm (10.56 in.) J 104.0 mm (4.10 in.) K 242.1 mm (9.53 in.) L 89.8 mm (3.54 in.)

18.0 mm (0.71 in.)

Oil Filter Removal

N 116.8 mm (4.60 in.) O Mounting Hole "A" P Rotation Direction

248.1 mm (9.77 in.)

Starter Stud

4 X 9.005 mm (0.355

in.) 37.0 mm (1.46

in.) Deep on a Ø

254.0 mm (10.0 in.)

B.C.

93.1 mm (3.66 in.)

Starter Stud

312.0 mm (12.28 in.)

Throttle and Choke

Cable Mounting

Surface

50.0 mm (1.97 in.)

Exhaust Port #1
