Specifi cations
6 62 690 01 Rev. LKohlerEngines.com

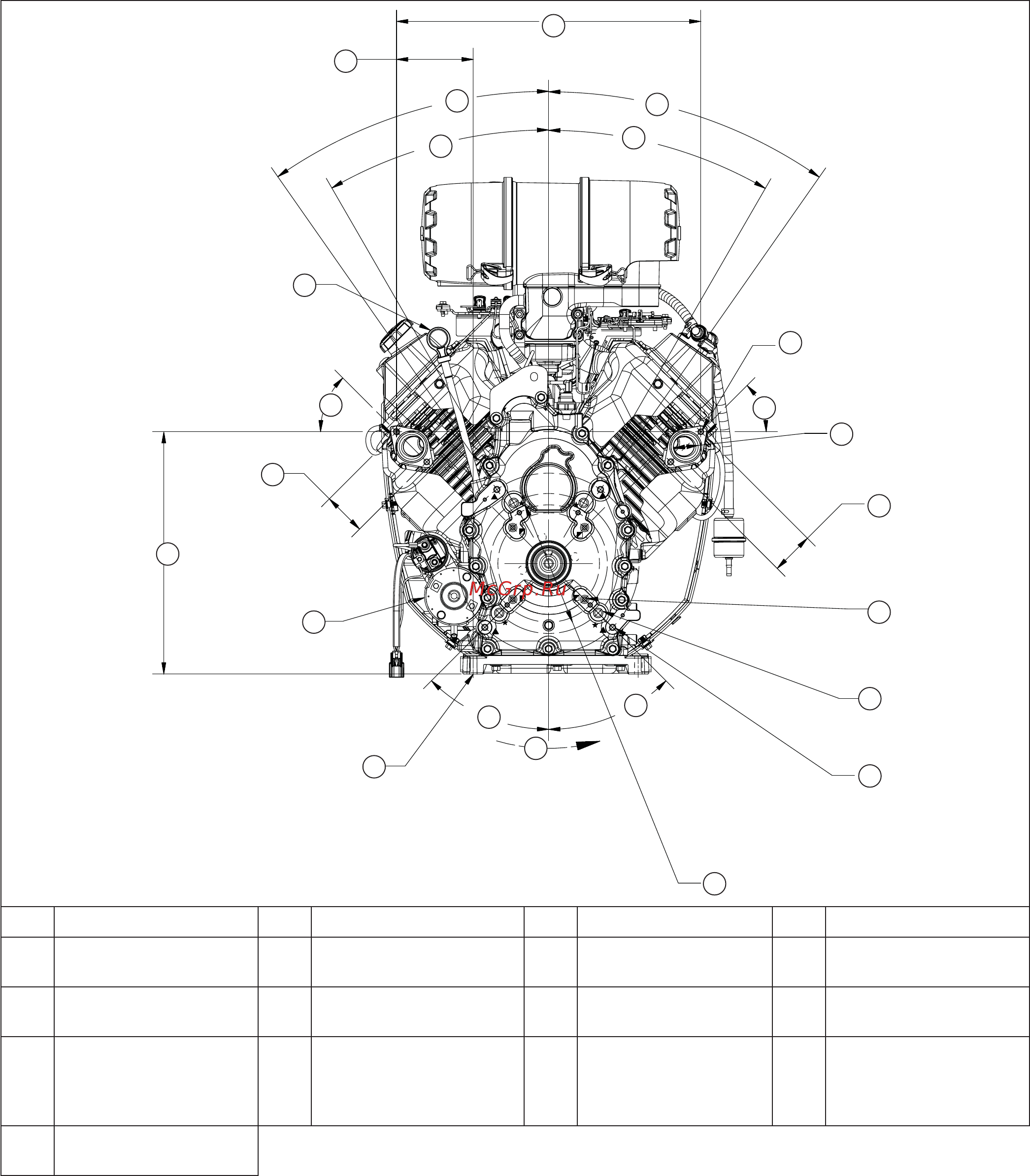

Engine Dimensions with Heavy-Duty Air Cleaner - PTO Side
A 427.8 mm (16.84 in.) B 107.9 mm (4.25 in.) C 35° D 30°
E Oil Level Dipstick F 45° G
60.0 mm (2.37 in.)
Exhaust Port
H 340.8 mm (13.42 in.)
I Solenoid Shift Starter J Mounting Hole "A" K Rotation Direction L
177.8 mm (7.0 in.)
Optional Pilot
M
M8 X 1.25 mm-6H in.
25 mm (0.98 in.)
Deep on a Ø 254 mm
(10.0 in.) B.C.
N
4 X 7/16-14 UNC-2B in.
21 mm (0.83 in.) Deep
on a Ø 142.9 mm
(5.63 in.) B.C.
O
4 X 3/8-16 UNC-2B in.
17 mm (0.67 in.) Deep
on a Ø 196.9 mm
(7.750 in.) B.C.
P
2 X 35.0 mm (1.38 in.)
Gasket
Q
4 X M8 X 1.25 mm
Studs
A
B
C
C
D
D
E
F
F
Q
P
G
G
H
I
J
K
F
F
L
M
N
O
