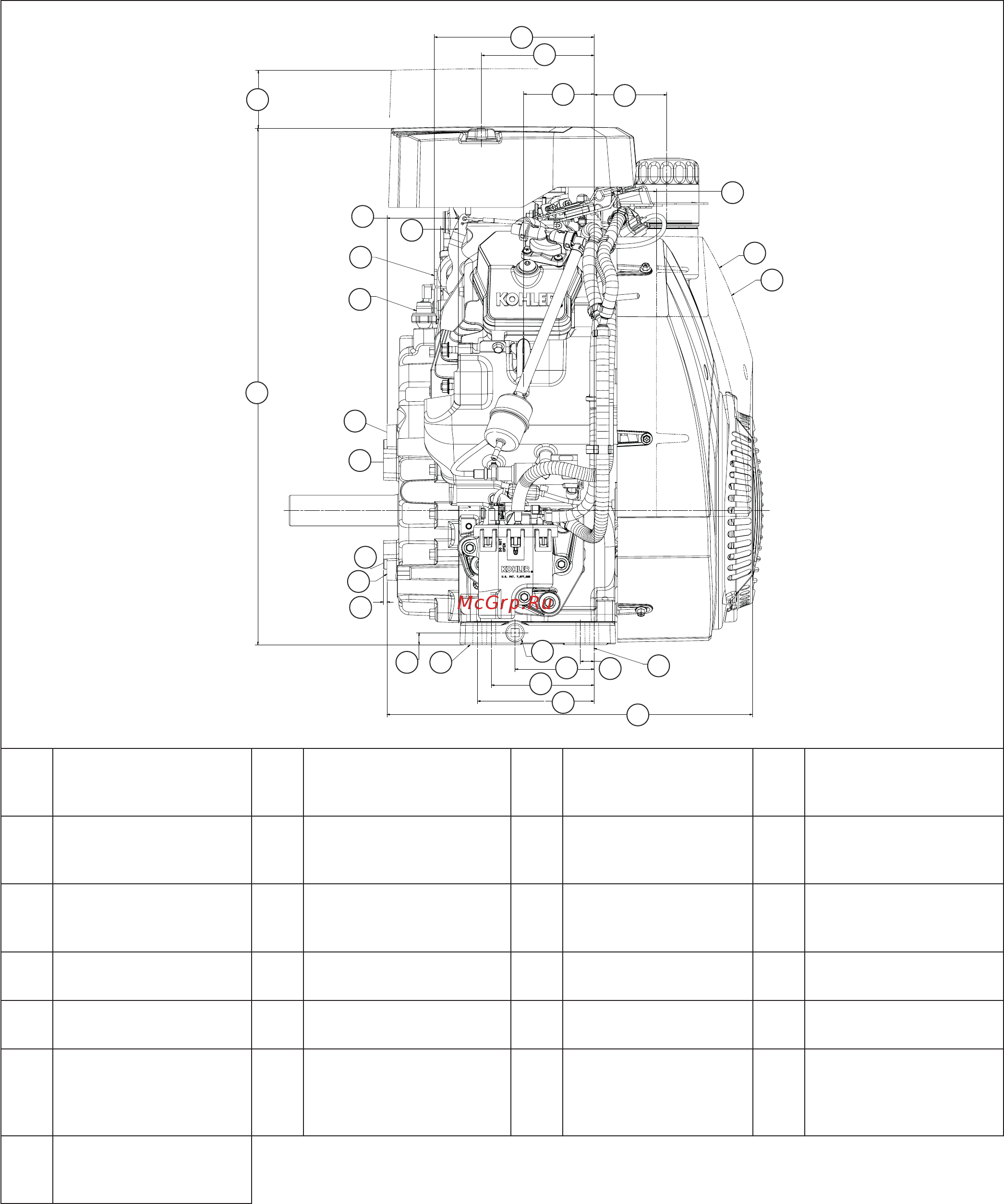

Engine Dimensions with Low-Proﬁ le Air Cleaner - Opposite Starter Side

A 184.9 mm (7.28 in.) B 130.4 mm (5.13 in.) C

81.8 mm (3.22 in.)

Center Line Spark

Plug

84.0 mm (3.31 in.)

Oil Filter

45.6 mm (1.80 in.)

Cylinder #2 Shroud

Removal

F Cylinder #2 Shroud G

Access to Integrated

Oil Cooler

H Mounting Hole "A"

I 16.0 mm (0.63 in.) J

422.8 mm (16.65 in.)

Cylinder #2 Shroud

Removal

K 135.0 mm (5.32 in.) L 119.0 mm (4.69 in.)

M 91.5 mm (3.60 in.) N

Oil Drain Plug

1/2 NPT Inch

Engine Mounting

Surface

P 13.88 mm (0.55 in.)

4 X 4.0 mm (0.16 in.)

Pilot Height

PTO Mounting

Surface

S Pilot Surface T 597.5 mm (23.52 in.)

U Oil Pressure Switch V Lifting Point W

82.4 mm (3.24 in.)

Exhaust Port #2

4 X 20.6 mm (0.81

in.)

Muﬄ er Mounting

Stud Height

67.0 mm (2.64 in.)

Air Cleaner

Cover Removal
