Installation/Connections

 Choose the mounting location where the unit will not interfere with the normal driving function of the

driver.

 Before finally installing the unit, connect the wiring and make sure that the unit works properly.

 Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

 Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

 If installation angle exceeds 30° from horizontal, the unit may not perform properly.

 Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

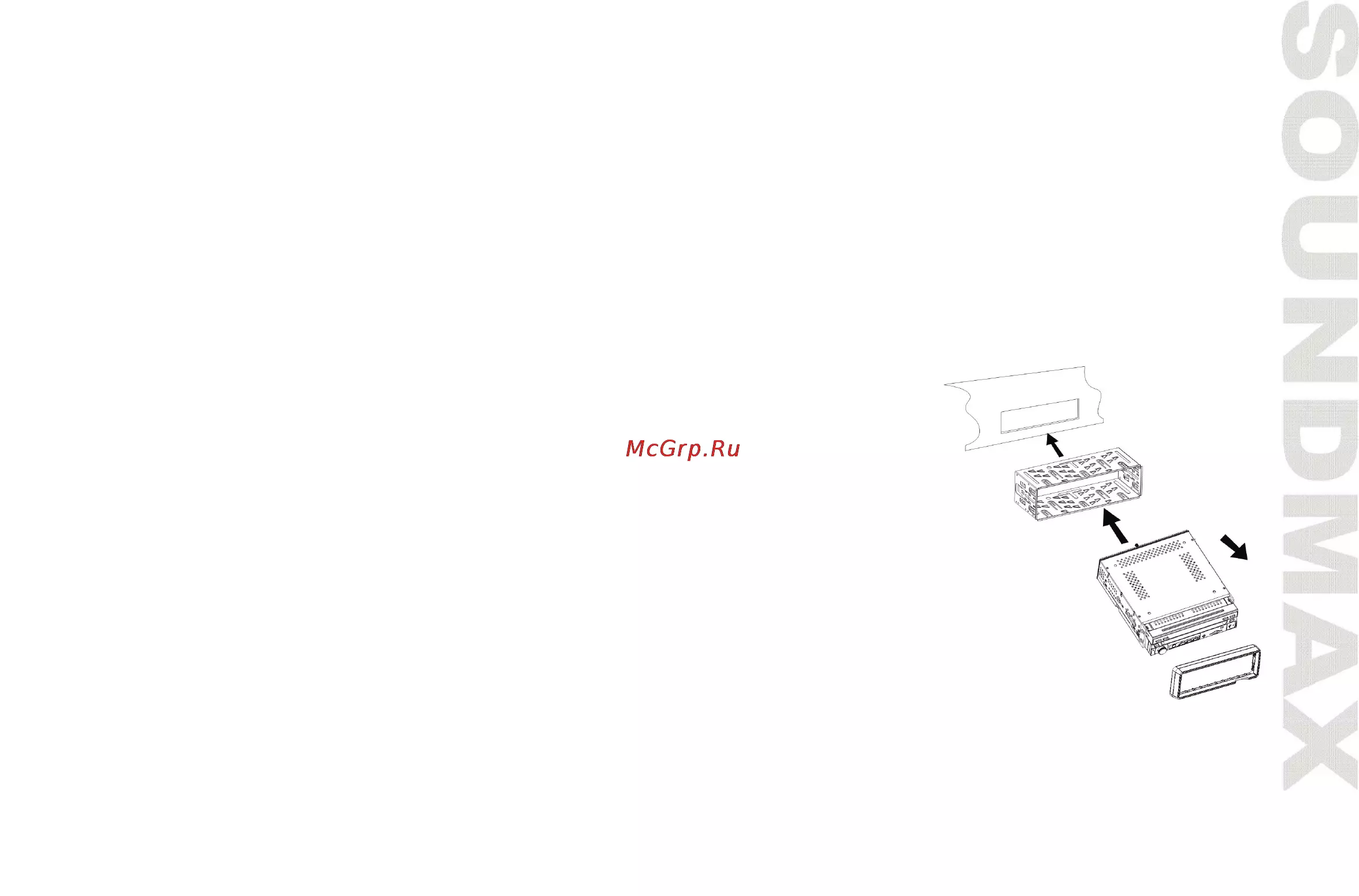

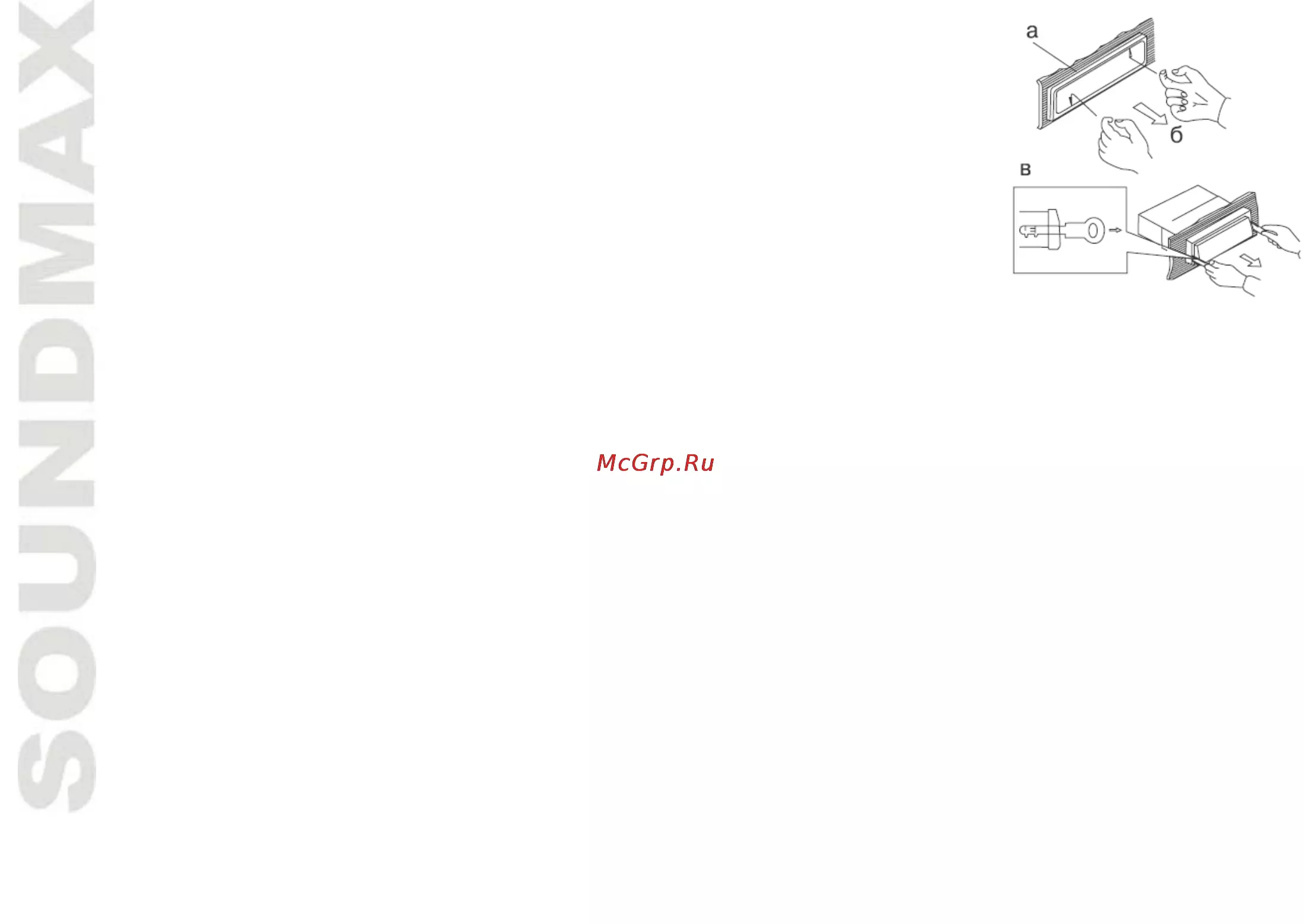

Mounting into dashboard

1. Install the sleeve into the dashboard; ensure it is installed with the

correct side and there are no obstacles (wires, dashboard elements, etc)

for the unit installation.

2. After installing the sleeve into the dashboard, bend tabs fitting to the

size of the dashboard to fix the sleeve in place.

3. Make the necessary wire connections. Ensure the connections are

correct.

4. Remove the trim frame from the unit. Install the unit into the sleeve

until the side locks are fixed. Put the trim frame onto the unit.
