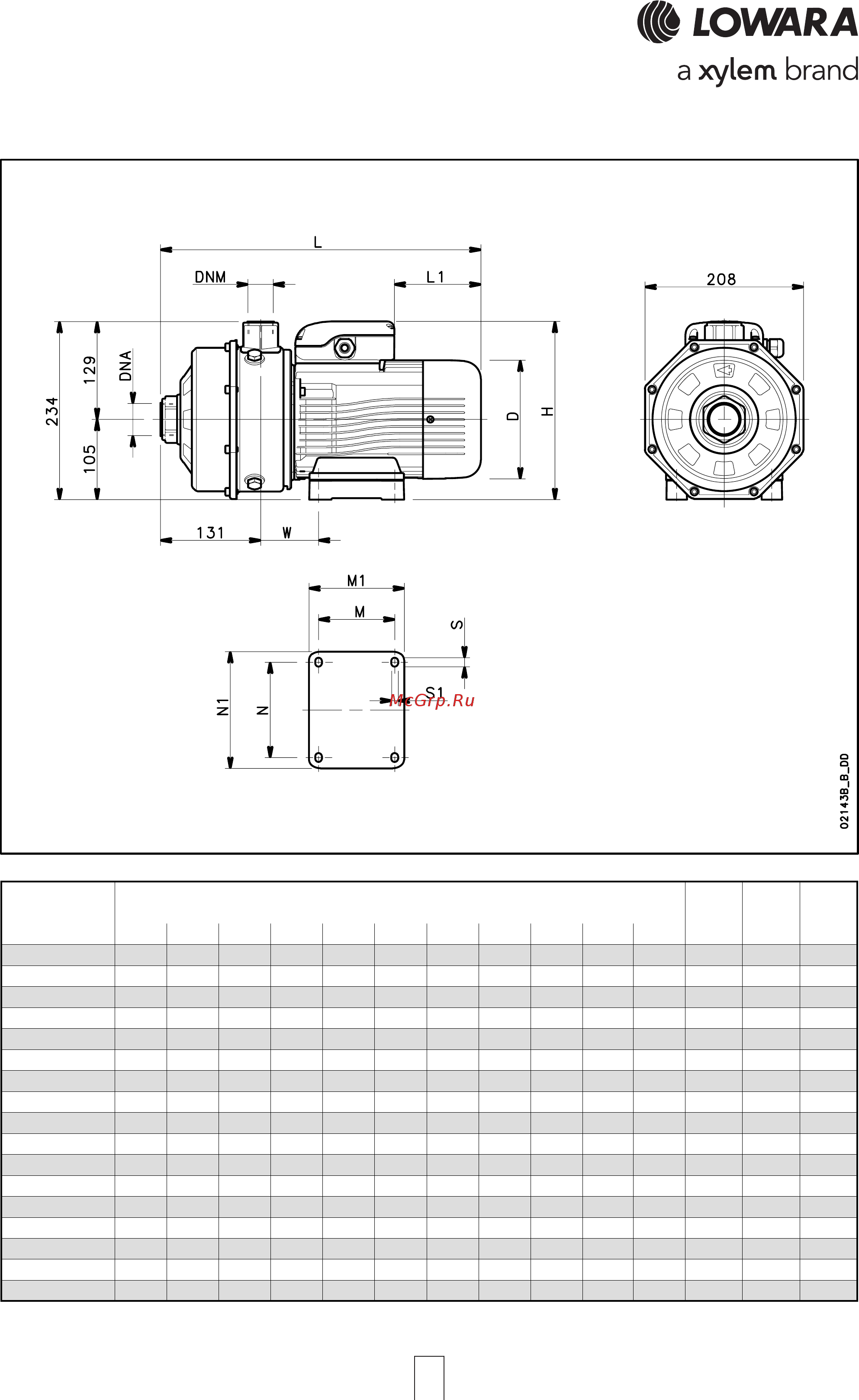

DIMENSIONI E PESI SERIE CA 2 poli 50 Hz
POMPA TIPO DNA DNM PESO
D H L L1 M M1 N N1 S S1 W kg
CAM 70/33/B 140 226 383 76 90 113 112 135 12 7 66 Rp 1¼ Rp 1 15
CAM 70/34/B 140 235 383 31 90 113 112 135 12 7 66 Rp 1¼ Rp 1 15,8
CAM 70/45/B 156 242 420 69 100 125 125 153 12 9 76 Rp 1¼ Rp 1 18,5
CAM 120/33/B 156 242 420 69 100 125 125 153 12 9 76 Rp 1¼ Rp 1 18,4
CAM 120/35/B 156 242 420 69 100 125 125 153 12 9 76 Rp 1¼ Rp 1 20,2
CAM 120/55/P 174 256 454 84 125 155 140 170 13 10 98 Rp 1¼ Rp 1 27
CAM 200/33/P 174 256 454 84 125 155 140 170 13 10 98 Rp 1½ Rp 1 27
CAM 200/35/P 174 256 454 84 125 155 140 170 13 10 98 Rp 1½ Rp 1 27
CA 70/33/D 155 234 420 114 100 125 125 153 12 9 76 Rp 1¼ Rp 1 16,7
CA 70/34/D 155 234 420 114 100 125 125 153 12 9 76 Rp 1¼ Rp 1 17,4
CA 70/45/D 155 234 420 114 100 125 125 153 12 9 76 Rp 1¼ Rp 1 18,7
CA 120/33/D 155 234 420 114 100 125 125 153 12 9 76 Rp 1¼ Rp 1 18,7
CA120/35/D 155 234 420 114 100 125 125 153 12 9 76 Rp 1¼ Rp 1 20,4
CA 120/55/P 174 239 454 172 125 155 140 170 13 10 98 Rp 1¼ Rp 1 25
CA 200/33/P 174 239 454 172 125 155 140 170 13 10 98 Rp 1½ Rp 1 25
CA 200/35/P 174 239 454 172 125 155 140 170 13 10 98 Rp 1½ Rp 1 25
CA 200/55/P 174 239 454 172 125 155 140 170 13 10 98 Rp 1½ Rp 1 27
ca-2p50_L_td
DIMENSIONI (mm)
