31

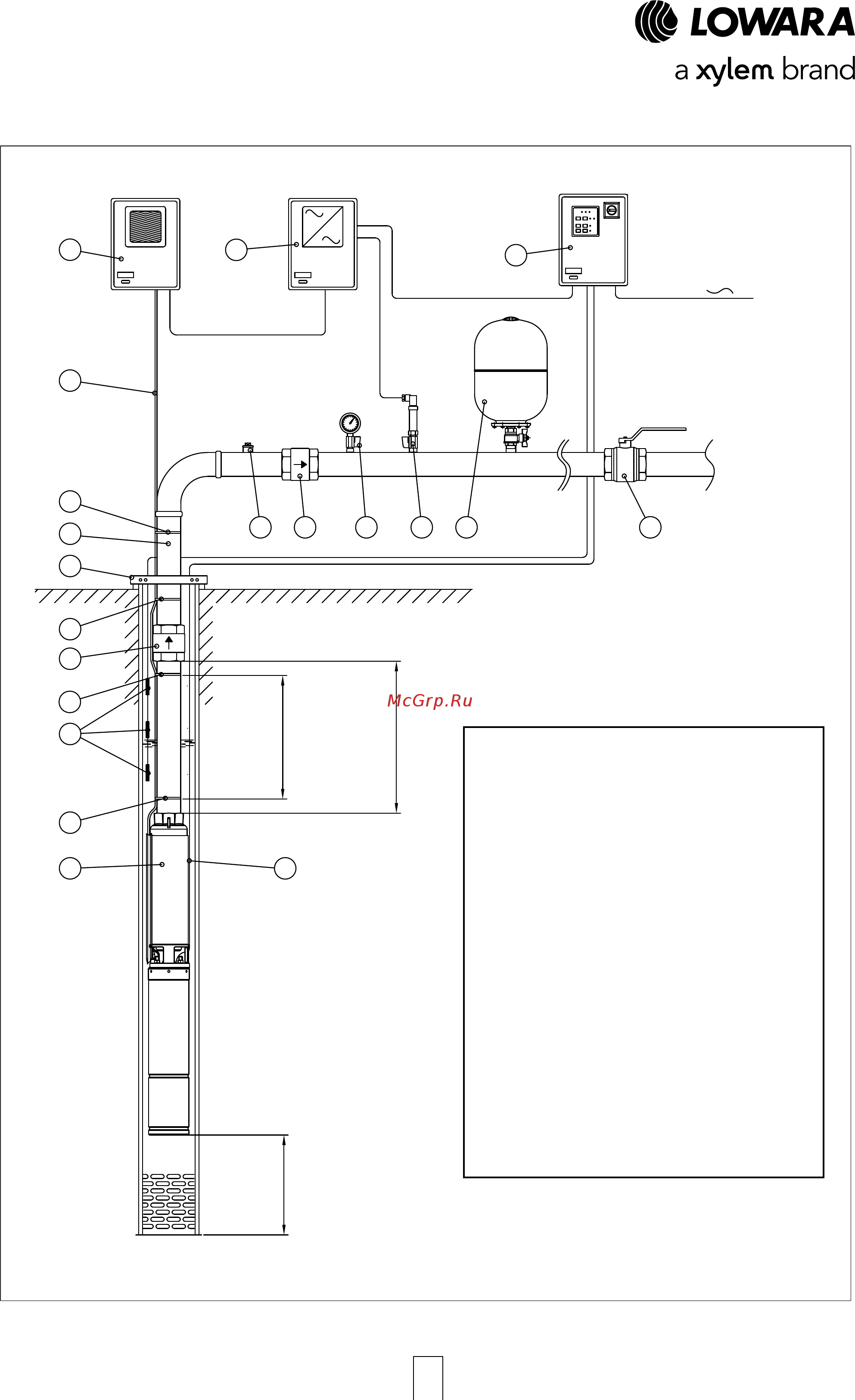

EXAMPLE OF INSTALLATION OF A SUBMERSIBLE
ELECTRIC
PUMP CONTROLLED BY AN INVERTER
1 - Submersible electric pump.
2 - Cable clamp.
3 - Level sensors for protection against
dry running.
4 - Non-return valve.
5 - Support bracket.
6 - Delivery pipe.
7 - Electrical cable for motor power
8 - Electric pump bleed/priming cap.
9 - Pressure gauge.
10 - Diaphragm tank
11 - Gate valve.
12 - Control panel.
13 - PTC/PT100 cable
14 - Pressure transducer.
15 - Inverter (Hydrovar
or ResiBoost).
16 - Filter (suggest for cable lenghts
exceeding 20 meters.
N.B. For correct Inverter-Motor coupling,
contact our sales network.
A0034_B_SC
16
7
9
4
2
3
1
4
15
5
8
10
12
2
2
2
13
1 m (B)
10 m
3 m (A)
6
1114
TECHNICAL APPENDIX
