13
DENOMINAZIONE MODELLI
S
ERIE ESHE CON PIEDE DI
SOSTEGNO SUL MOTORE
2 POLES 4 POLES
40-250/150 80-250/110
50-250/150
50-250/185
50-250/220
65-200/150
65-200/185
65-200/220
80-160/150
80-160/185
80-200/220
ESHE-s-en_a_mo
(ESHE) VERSIONS
ESHE SERIES

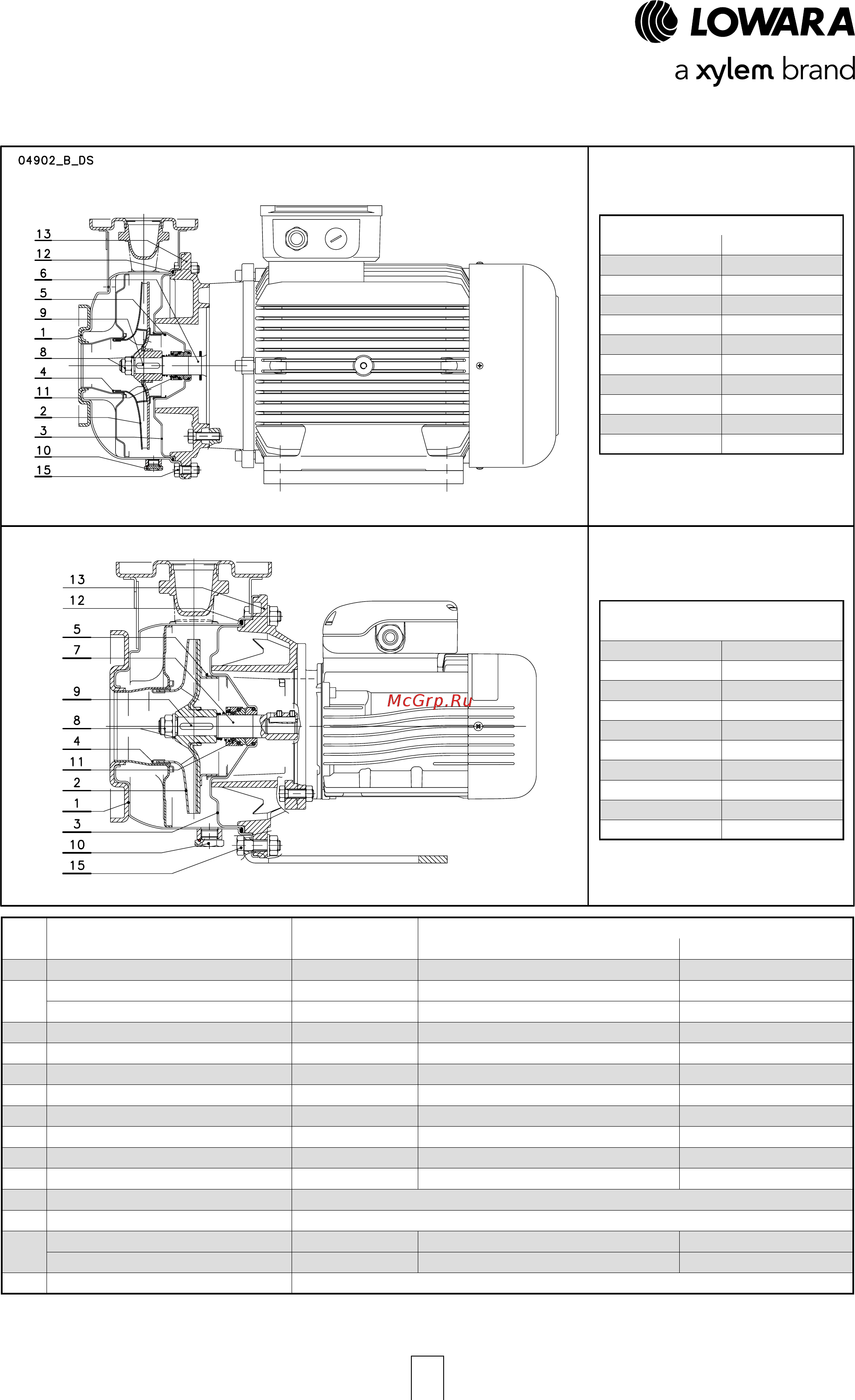

ELECTRIC PUMP CROSS-SECTION AND MAIN COMPONENTS
DENOMINAZIONE MODELLI
S
ERIE SHE4 CON MOTORE
MEC 71 B5
25-125/02A 40-125/02A
25-125/02 40-125/02
25-160/02A 40-160/03
25-160/02 50-125/02
25-200/03 50-125/03
32-125/02A
32-125/02
32-160/02A
32-160/02
32-200/03
ESHE4-p-en_a_mo
(ESHE) VERSIONS
4 POLES
ESHE-en_c_tm
