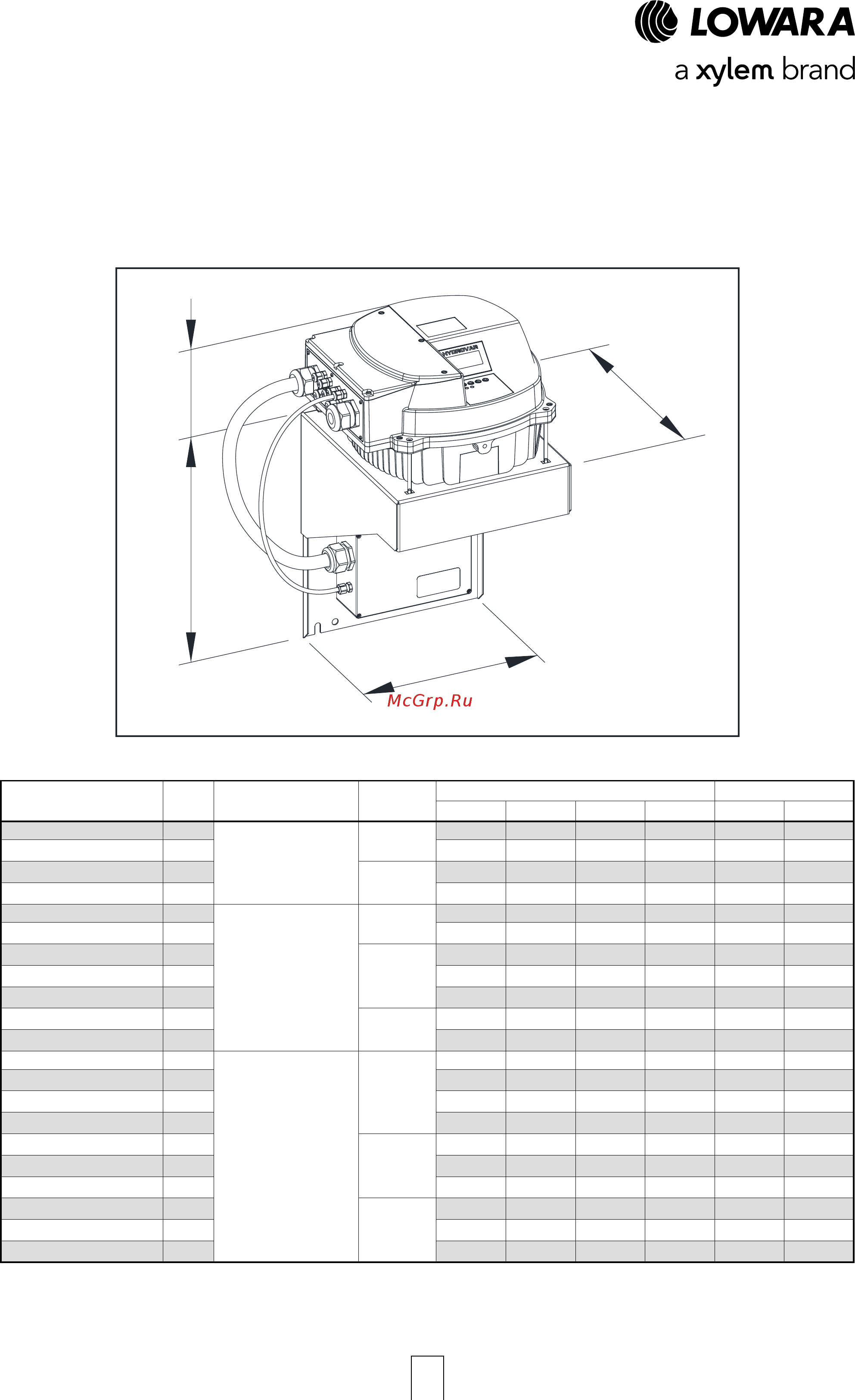

HYDROVAR HVL (WALL MOUNTING KIT)
DIMENSIONS AND WEIGHTS
A
H
L
P
WM-KIT_HVL_models_a_sc
A H L P HVL WM KIT
WM KIT HVL 2.015
1,5
220
170
202
232
5,6
2,6
WM KIT HVL 2.022 2,2 220 170 202 232 5,6 2,6
WM KIT HVL 2.030 3 240 175 258 290 10,5 8,2
WM KIT HVL 2.040 4 320 175 288 305 10,5 5,4
WM KIT HVL 3.015
1,5
220
170
202
232
5,6
2,6
WM KIT HVL 3.022 2,2 220 170 202 232 5,6 2,6
WM KIT HVL 3.030 3 240 175 258 290 10,5 8,2
WM KIT HVL 3.040 4 240 175 258 290 10,5 8,2
WM KIT HVL 3.055 5,5 240 175 258 290 10,5 8,2
WM KIT HVL 3.075 7,5 400 200 325 365 15,6 11,6
WM KIT HVL 3.110 11 400 200 325 365 15,6 11,6
WM KIT HVL 4.015
1,5
240
170
258
290
5,6
8,2
WM KIT HVL 4.022 2,2 240 170 258 290 5,6 8,2
WM KIT HVL 4.030 3 240 170 258 290 5,6 8,2
WM KIT HVL 4.040 4 240 170 258 290 5,6 8,2
WM KIT HVL 4.055 5,5 240 175 258 290 10,5 8,2
WM KIT HVL 4.075 7,5 240 175 258 290 10,5 8,2
WM KIT HVL 4.110 11 320 175 288 305 10,5 5,4
WM KIT HVL 4.150 15 400 200 325 365 15,6 11,6
WM KIT HVL 4.185 18,5 400 200 325 365 15,6 11,6
WM KIT HVL 4.220 22 400 200 325 365 15,6 11,6
WM-KIT_HVL_models-EN_b_td
WEIGHT (kg)
3~ 230V
3~ 400V
A
B
A
B
C
A
B
C
WM KIT
TIPE
HVL
SIZE
DIMENSIONS (mm)
kW
WM KIT
POWER SUPPLY
1~ 230V
As an option a HYDROVAR wall mounting kit is also available, this is used where mounting on the pump unit is impossible
or where you would like the controls in another location, these are available for the new generation HYDROVAR HVL
2.015-4.220 (22 kW). The speed of the cooling fan modulates with the HYDROVAR usage which optimizes energy
consumption and also reduces noise.
