Connection

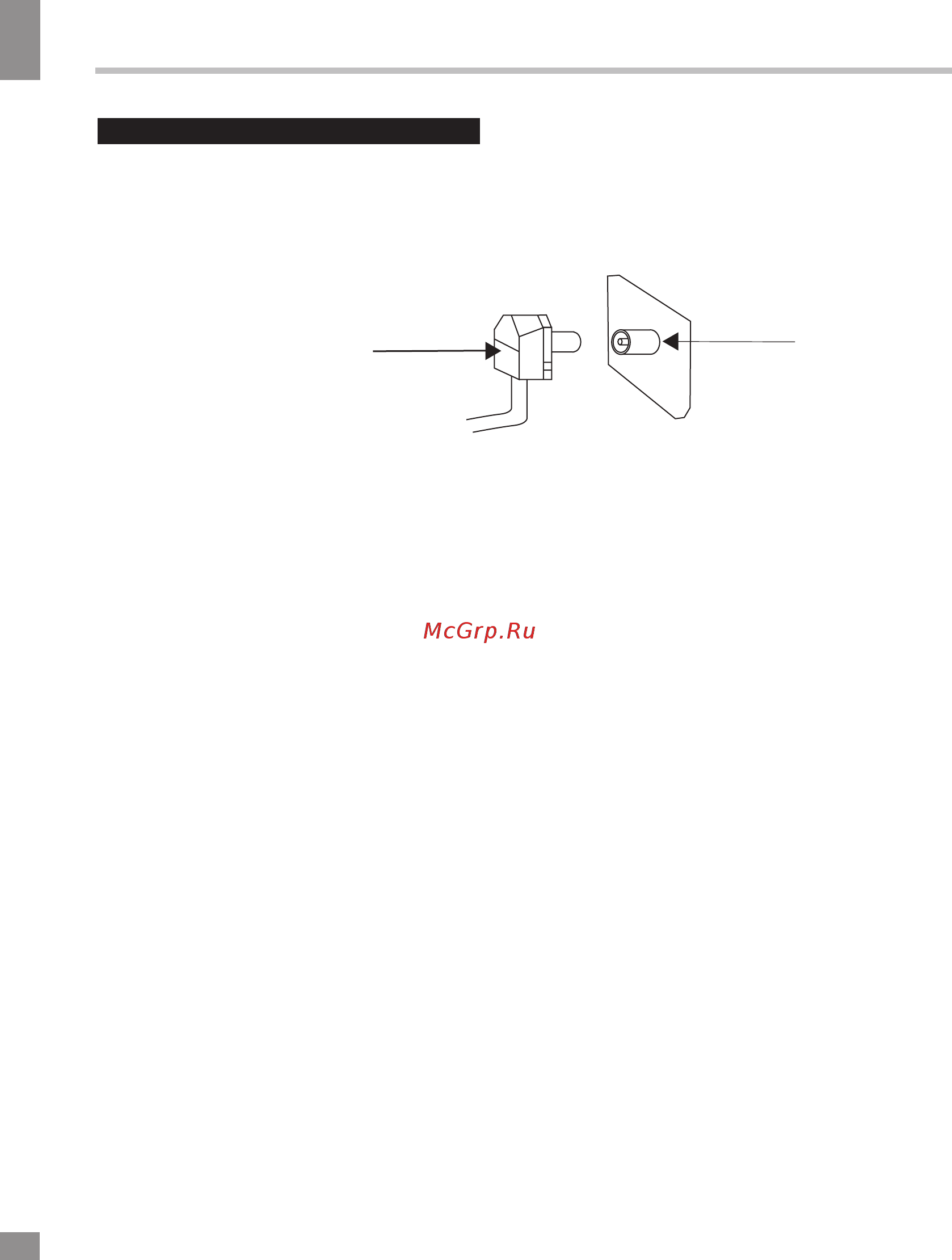

75 Ohm co-axis cable

TVRF antenna jack

Antenna cable connector

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω

impedance converter to plug in antenna input

terminal on the rear of the cabinet.

Other connections

• Connect the video source to the AV IN

input using an RCA cable.

• Plug the power cable in the electric outlet,

making sure the current voltage is supported.

• If the video source has a HDMI output

jack, you can connect the signal to the monitor

by the HDMI cable (not included).

• Optical output is intended for transmitting

multi-channel sound to an external decoder

(e.g. in 5.1-CH format). Optical cable should

be used for connection (not included).

• Connect your headphones or earphones

(not included) to the headphone socket of

this unit. When earphones are connected, the

sound output through the built-in speakers of

this unit is mute.

• PCMCIA slot is used for CI modules that

are obtained from your digital TV provider.
