SRL2
42

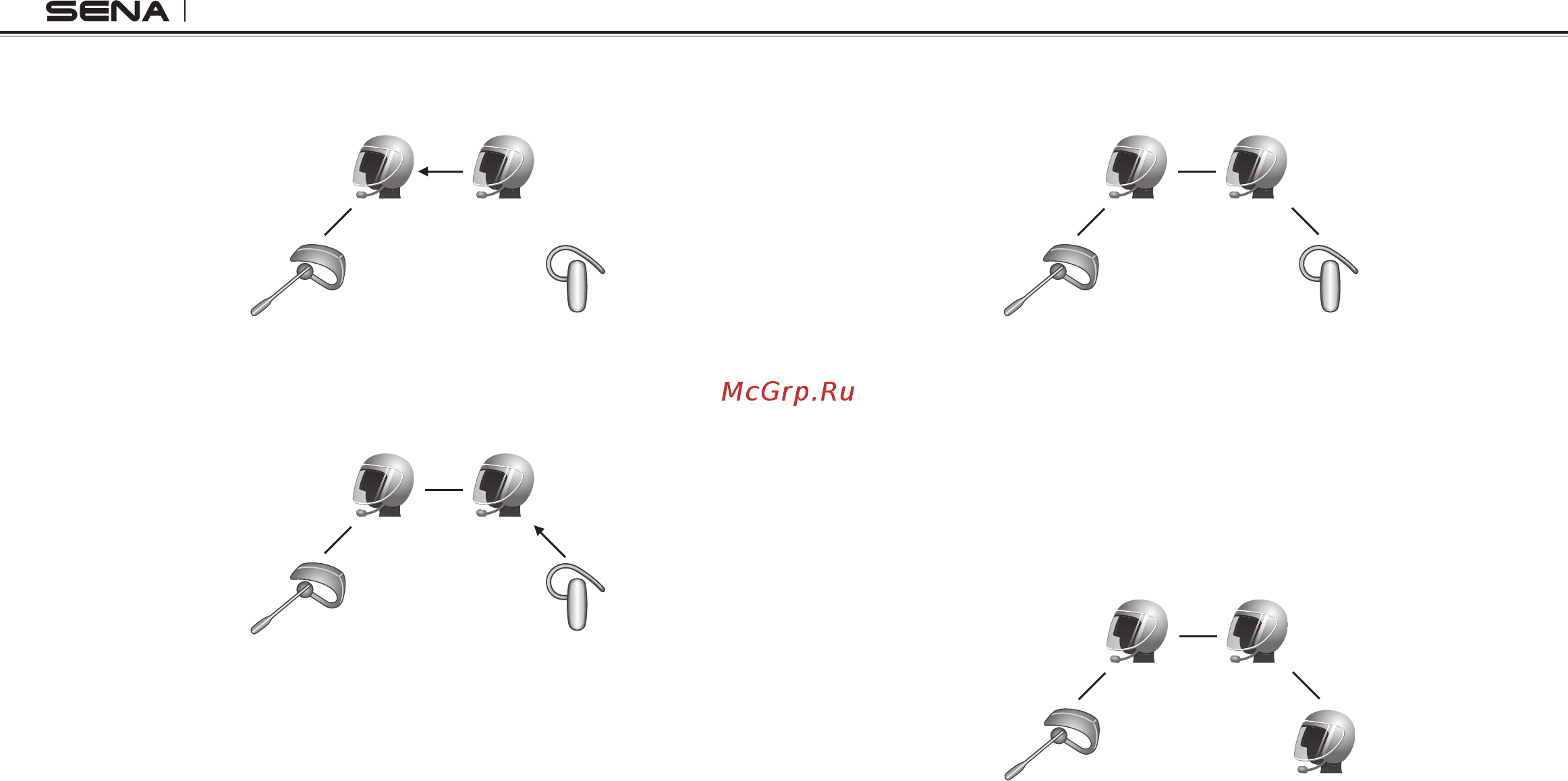

2. The other SRL2 (C) may join the intercom by making an intercom
call to you (A).
(B)
(D)
(A)
(C)
3. The non-Sena Bluetooth headset (D) may join the three-way
intercom by making an intercom call to the SRL2 (C).
(B)
(D)
(A)
(C)
4. Now two SRL2 headsets (A & C) and two non-Sena Bluetooth
headsets (B & D) are connected with the four-way Universal Intercom.
(B)
(D)
(A)
(C)
You may disconnect a four-way Universal Intercom using the same
way as you do in a normal four-way intercom. Please refer to
section
13.2.4, “End Multi-way Intercom”
.
16.4.2 Four-way Universal Intercom Case 2
Three SRL2 headsets (A, C and D) and one non-Sena Bluetooth headset (B).
The procedure is the same as case 1 described in
section 16.4.1
.
(B)
(D)
(A)
(C)
