Lowara LSN 2 - 100-65-200 [2/12] Casing pressure
![Lowara LSN 4 - 65-40-200 [2/12] Casing pressure](/views2/1622027/page2/bg2.png)
Performance Range:
m Capacity up to 500m
3
/h (1980USgpm)
m Head up to 150m (492feet)
m Speed 2950/3550rpm
Pump Sizes:
m DN 25 up to DN 150 (1“ up to 6“) Discharge
Temperature:
m -40
o
C up to +180
o
C (-40
o
F up to +350°F)
Casing Pressure:
m up to 16 bar (235 psig)
Pump sizes 50-32-315, 65-40-315, 80-50-315, 100-65-315, 125-80-315 and
125-100-315 up to 25 bar (363 psig)
Volute casing pumps for higher capacities, pump sizes up to
DN 600 (24’’) and capacities up to 4600m
3
/h (20250USgpm)
refer to design LS
Liquids:
m Clean and slightly contaminated fluids (without bigger solids)
m Cold and hot water
m Condensate and desalinated water
m Oil, brine, caustic and acid
m Suspensions
Applications:
m Water supply and water treatment
m Cooling water supply
m Hot water circulation
m District heating
m General industry
m Food and beverage industry
m Filter systems, ultra filtration
m Coolant filtration
m Parts washing machines
m Galvanisation and painting systems
Materials:
m Ductile iron - 0.7043
m Stainless steel - 1.4408
m Duplex - 1.4517
Technical Data

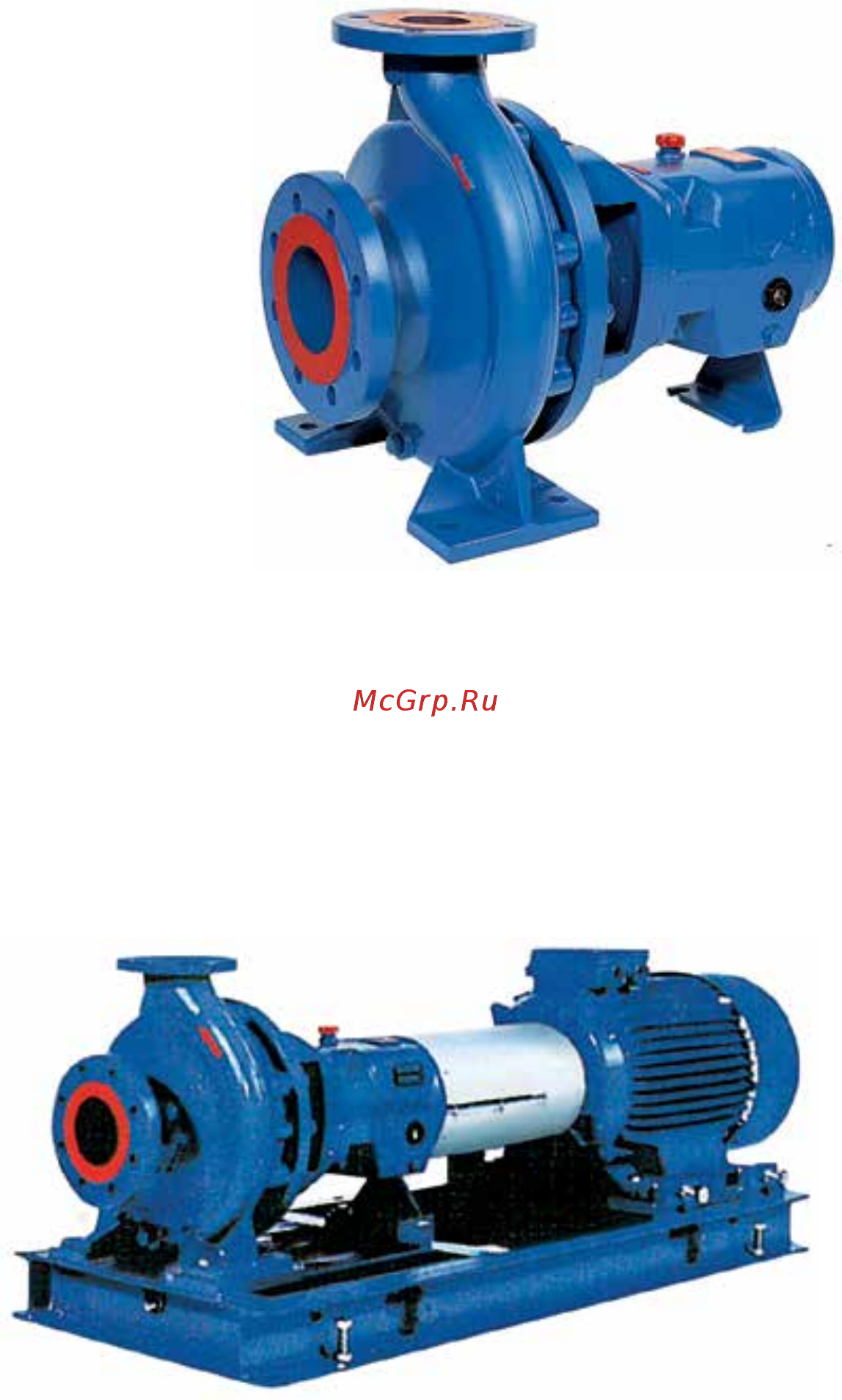

Horizontal volute casing pumps - model
LSN - are built according to
ISO 2858 / EN 22858
ISO 5199 / EN 25199
ISO 3069, ISO 3661
