Klover BI-FIRE MID [2/2] Posteriore

PELLET AND WOOD BOILER STOVE BI-FIRE MID

EN - Rev. 1.0

Connections data sheet

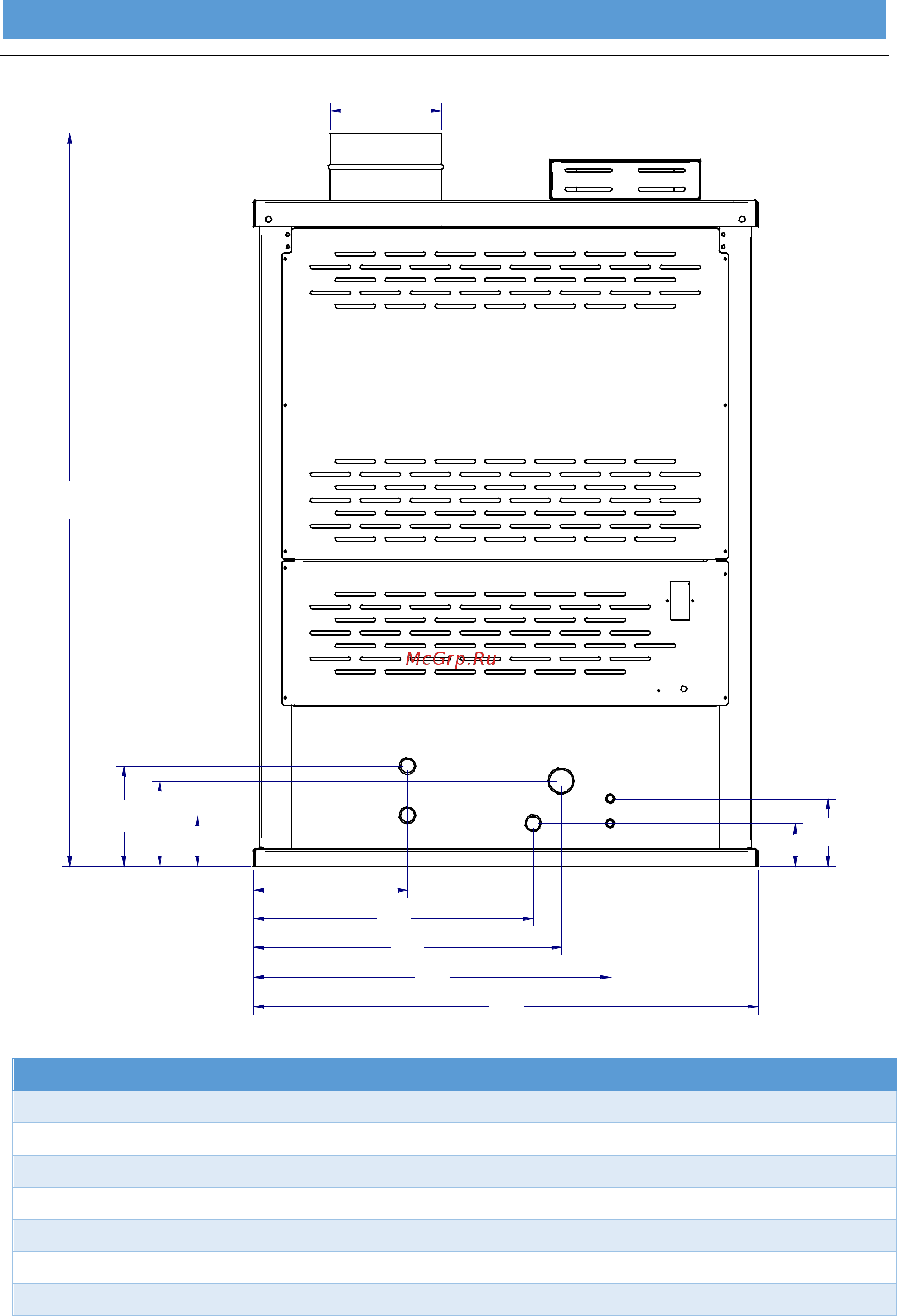

VISTA

POSTERIORE

180

250

455

500

580

820

110

140

160

1140

Description of connections

M = System Delivery

3/4" F

R = System Return

3/4" M

F = Domestic cold water inlet (on prepared models only) and boiler unit and system load

14 mm

C = Domestic hot water outlet (on prepared models only)

14 mm

X = Boiling discharge

3/4" M

A = Intake pipe (pellet side)

43 mm

Flue gas outlet

180 mm M

REAR VIEW
