Klover ALTEA [2/2] Connections data sheet

ALTEA 110 WOOD BOILER STOVE

EN - Rev. 1.0

Connections data sheet

Description of connections

M = Heating system flow

3/4" F

R = Heating system return

3/4" M

F = Domestic cold water inlet (on prepared models only) + system load and boiler body

1/2" M

C = Domestic hot water outlet (on prepared models only)

1/2" M

X = Safety valve drain

1/2" F

S = Boiling discharge

3/4" M

A = Intake pipe

100 mm

Sf = Flue gas outlet

150 mm M

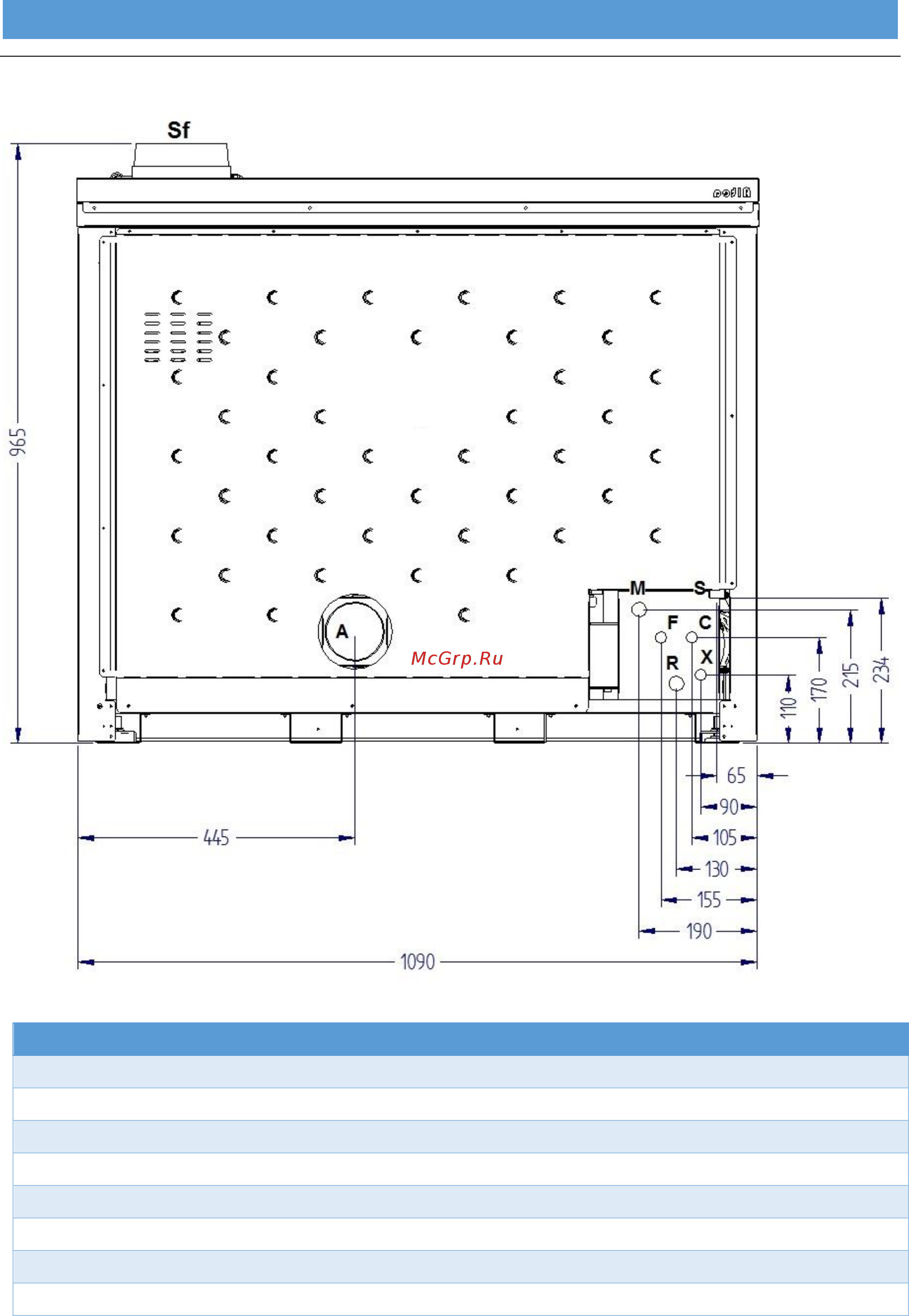

REAR

VIEW
