SMART 120 L WOOD BOILER STOVE
EN - Rev. 1.0
Connections data sheet
Description of connections
M = Heating system flow
3/4" F
R = Heating system return
3/4" M
F = Domestic cold water inlet (on prepared models only) + system load and boiler body
14 mm
C = Domestic hot water outlet (on prepared models only)
14 mm
X = Boiling discharge
3/4" M
Us = Upper flue gas outlet
150 mm M
Up = Rear flue gas outlet
150 mm M

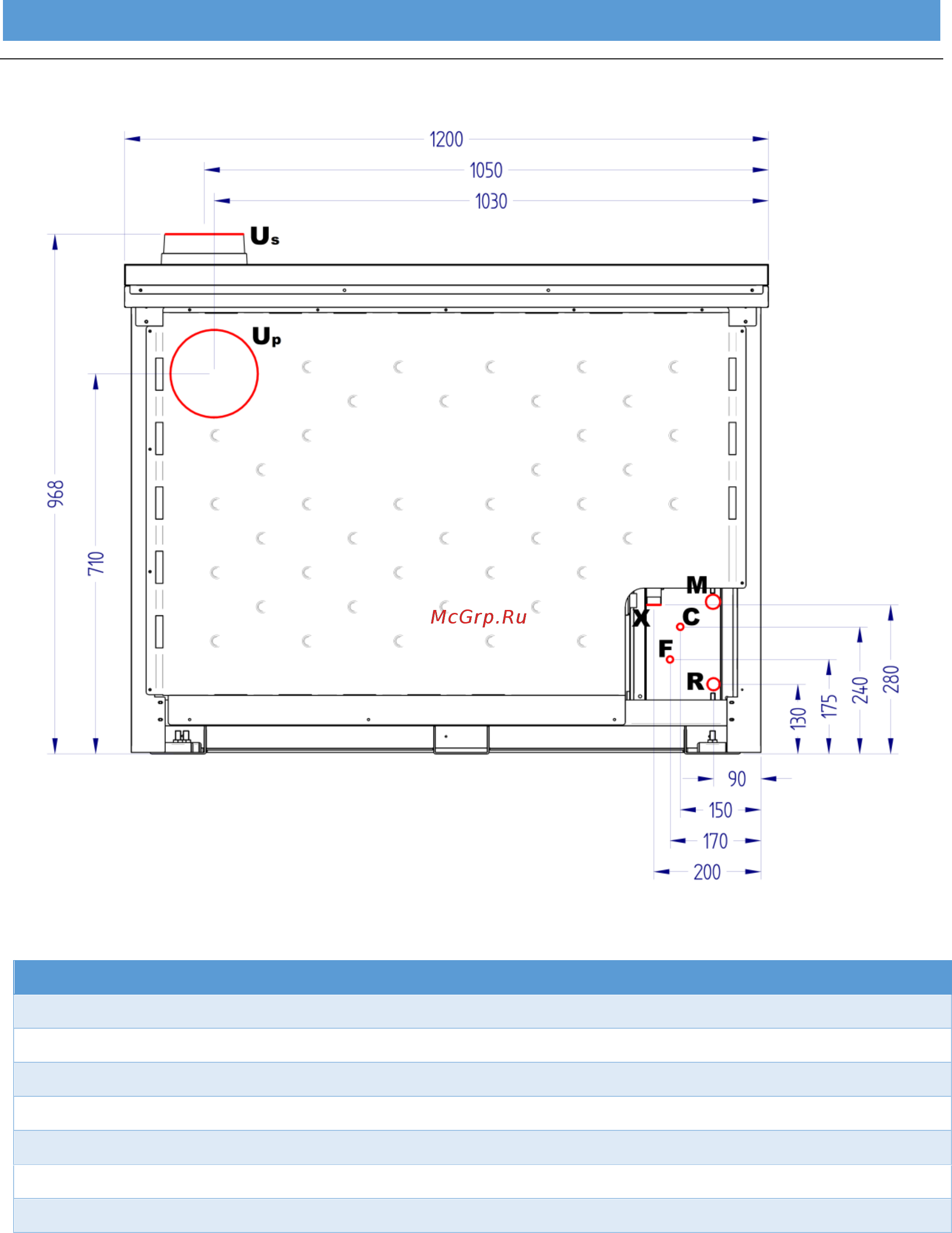

REAR
VIEW
